ASSEMBLY
Assembly requires two persons, Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own Phillips screwdriver _ .......... , adjustable
wrench __, and rubber mallet c-_-
[ J

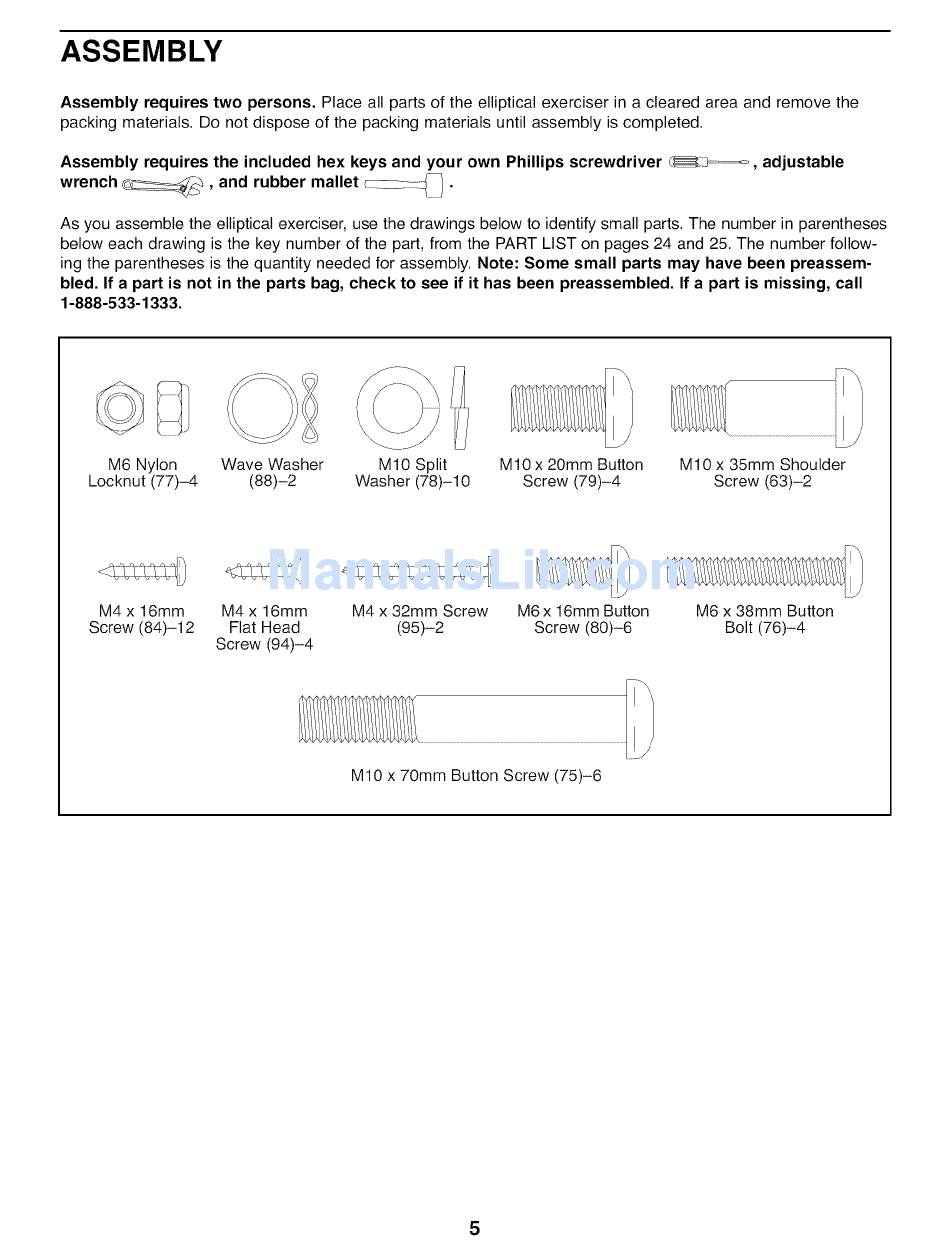

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow-
ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem-
bled. If a part is not in the parts bag, check to see if it has been preassembled. If a part is missing, call
1-888-533-1333.
M6 Nylon Wave Washer
Locknut (77)-4 (88)-2
M10 Split M10 x 20mm Button
Washer (78)-10 Screw (79)-4
M10 x 35mm Shoulder
Screw (63)-2
M4 x 16mm M4 x 16mm
Screw (84)-12 Flat Head
Screw (94)-4
M4 x 32mm Screw M6 x 16mm Button
(95)-2 Screw (80)-6
M6 x 38mm Button
Bolt (76)-4
M10 x 70mm Button Screw (75)-6
