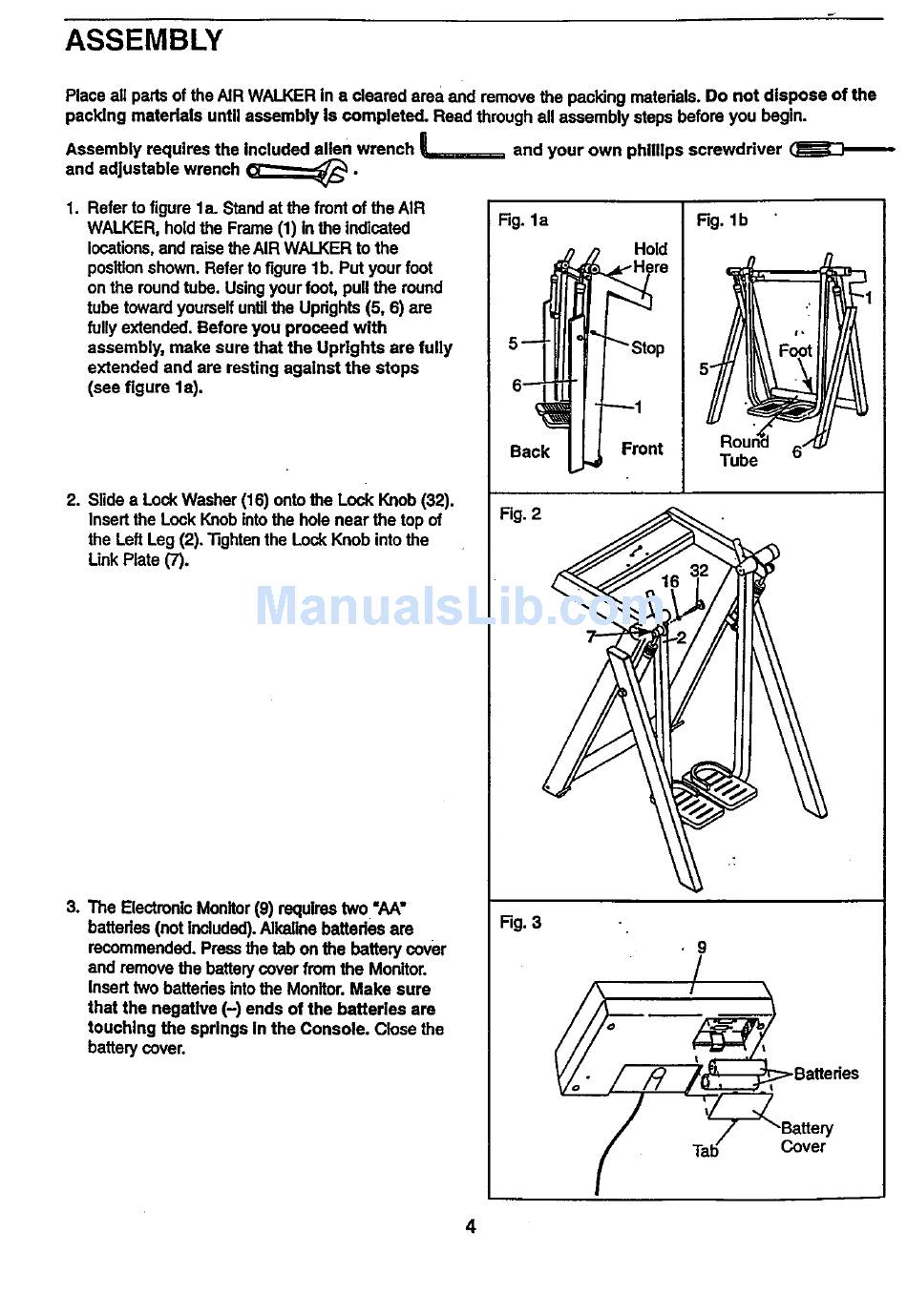

ASSEMBLY
Place all parts of the AIR WALKER in a cleared area and remove the packing materials. Do not dispose of the
pacldng materials until assembly Is completed. Read through all assembly steps before you begin.
Assembly requires the Included allen wrench L_ and your own phillips screwdriver (_
and adjustable wrench _.
1. Refer to figure la. Stand at the front of the AIR
WALKER, hold the Frame (1) in the Indicated
locations, and raise the AIR WALKER to the
position shown. Refer to figure lb. Put your foot
on the round tube. Using your foot, pull the round
tube toward yourself untilthe Updghts (5, 6) are
fully extended. Before you proceed with
assembly, make sure that the Uprights are fully
extended and are resting against the stops
(see figure la).
2. Slide a Lock Washer (16) onto the Lock Knob (32).
Insert the Lock Knob into the hole near the top of
the Left Leg (2). Tighten the Lock Knob into the
Link Plate (7).
3, The Electmnlc Monitor (9) requires two "AA"
batteries (not Included). Alkaline batteries are
recommended, Press the tab on the battery cover
and remove the battery cover from the Monitor.
Insert two battedas into the Monitor. Make sure
that the negative (-) ends of the batteries are
touching the springs in the Console. Close the
battery cover.
Fig. la
5 -- " "_" "_"Stop
Back Front
Fig. lb
Roun_d ,/
Tube P
!
Fig. 2
j
Rg. 3
• 9
Ti_b@-b_'Battery
Cover
4
