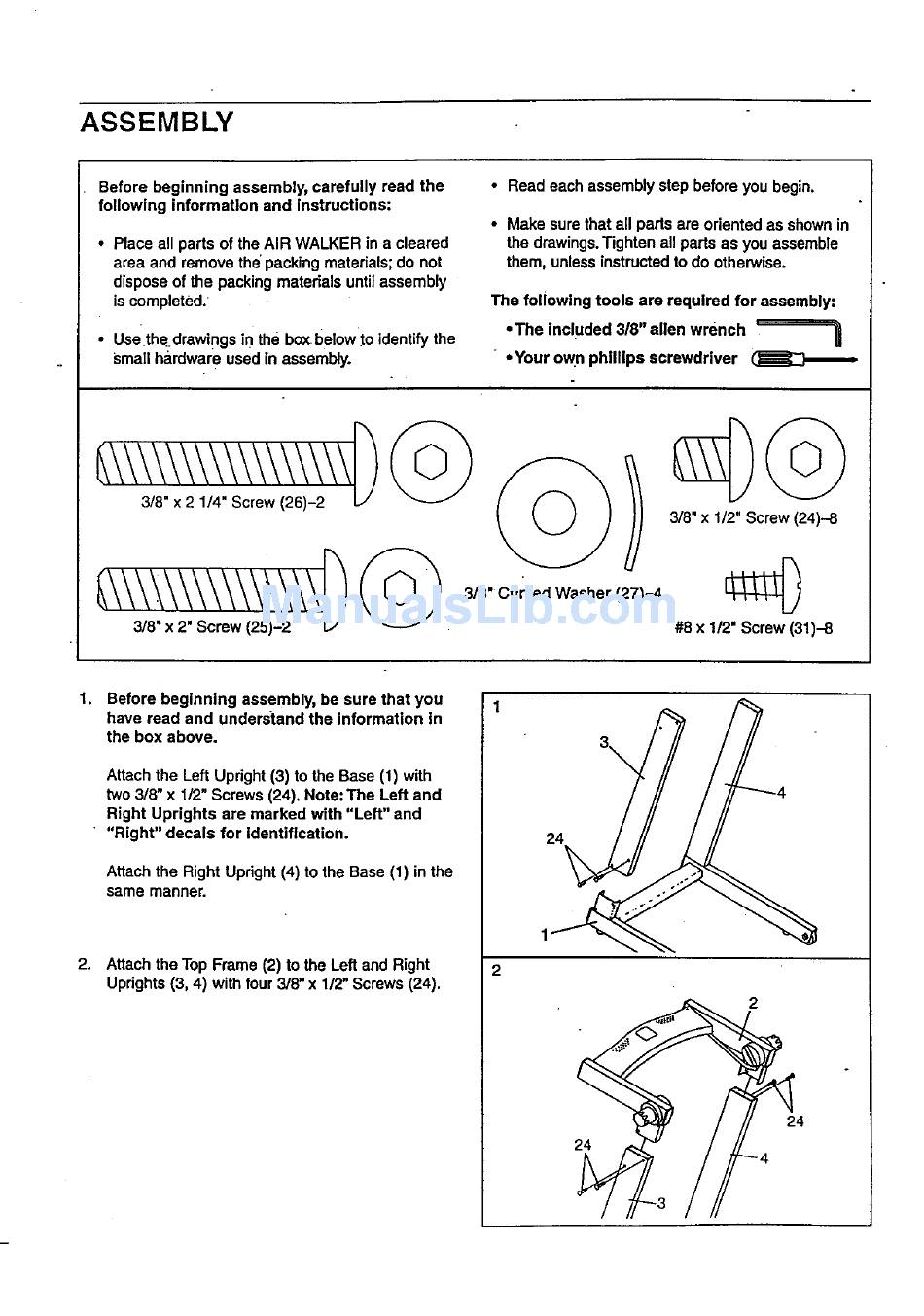

ASSEMBLY
Before beginning assembly, carefully read the
following information and instructions:
• Place all parts of the AIR WALKER in a cleared
area and remove the packing materials; do not
dispose of the packing materials until assembly
is completed. •
• Usethedrawings in the box I_elow to identify the
i_mail ha.rdware used in assembly.
• Read each assembly step before you begin.
• Make sure that all parts are oriented as shown in
the drawings. Tighten all parts as you assemble
them, unless instructed to do otherwise.
The following tools are required for assembly:
• The Included 318" allen wrench
II
• Your own phillips screwdriver (_
3/8" Curved Washer (27)--4
©
3/8" x 1/2" Screw (24)-8
#8 x 1/2" Screw (31)-8
1. Before beginning assembly, be sure that you
have read and understand the information in
the box above.
Attach the Left Upright (3) to the Base (1) with
two 3/8" x 1/2" Screws (24). Note:The Left and
Right Uprights are marked with "Left" and
"Right" decals for identification.
Attach the Right Upright (4) to the Base (1) in the
same manner.
2. Attach the Top Frame (2) to the Left and Right
Uprights (3, 4) with four 3/8" x 1/2" Screws (24).
2
24
2
24
24
_4
