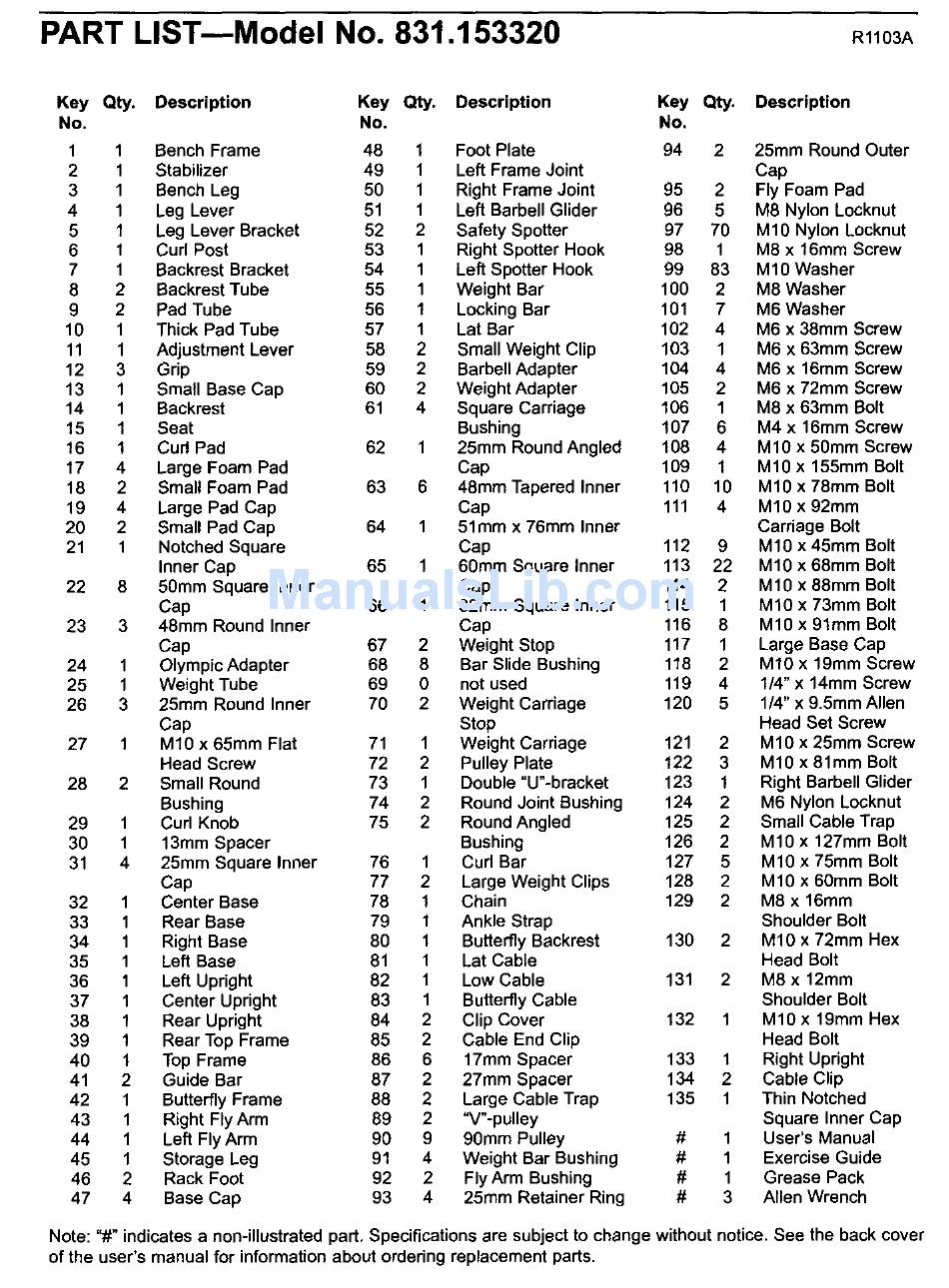

ProForm C 840 User Manual page 31

PART LIST--Model No. 831.153320 R O3A
Key Qty. Description Key Qty. Description Key Qty. Description
No. No, No.
1 1 Bench Frame 48 1 Foot Plate 94 2 25mm Round Outer
2 1 Stabilizer 49 1 Left Frame Joint Cap
3 1 Bench Leg 50 1 Right Frame Joint 95 2 Fly Foam Pad
4 1 Leg Lever 51 1 Left Barbell Glider 96 5 M8 Nylon Locknut
5 1 Leg Lever Bracket 52 2 Safety Spotter 97 70 M10 Nylon Locknut
6 1 Cud Post 53 1 Right Spotter Hook 98 1 M8 x 16mm Screw
7 1 Backrest Bracket 54 1 Left Spotter Hook 99 83 M10 Washer
8 2 Backrest Tube 55 1 Weight Bar 100 2 M8 Washer
9 2 Pad Tube 56 1 LockingBar 101 7 M6 Washer
10 1 Thick Pad Tube 57 1 Lat Bar 102 4 M6 x 38ram Screw
11 1 Adjustment Lever 58 2 Small Weight Clip 103 1 M6 x 63mm Screw
12 3 Grip 59 2 BarbellAdapter 104 4 M6 x 16mm Screw
13 1 Small Base Cap 60 2 Weight Adapter 105 2 M6 x 72mm Screw
14 1 Backrest 61 4 Square Carriage 106 1 M8 x 63mm Bolt
15 1 Seat Bushing 107 6 M4 x 16mm Screw
16 1 Cud Pad 62 1 25mm Round Angled 108 4 M10 x 5Omm Screw
17 4 Large Foam Pad Cap 109 1 M1O x 155mm Bolt
18 2 Small Foam Pad 63 6 48mm Tapered Inner 110 10 M1Ox 78mm Bolt
19 4 Large Pad Cap Cap 111 4 M1Ox 92ram
20 2 Small Pad Cap 64 1 51mm x 76mm Inner Carriage Bolt
21 1 Notched Square Cap 112 9 M10 x 45ram Bolt
Inner Cap 65 1 6gram Square Inner 113 22 M1Ox 68mm Bolt
22 8 5Omm Square Inner Cap 114 2 M1Ox 88mm Bolt
Cap 66 1 32mm Square Inner 115 1 M10 x 73mm Bolt
23 3 48mm Round Inner Cap 116 8 M10 x 91ram Bolt
Cap 67 2 Weight Stop 117 1 Large Base Cap
24 1 OlympicAdapter 68 8 Bar Slide Bushing 118 2 M10 x 19mm Screw
25 1 Weight Tube 69 0 not used 119 4 1/4" x 14mm Screw
26 3 25mm Round Inner 70 2 Weight Carriage 120 5 1/4" x 9.5mm Allen
Cap Stop Head Set Screw
27 1 M10 x 65mm Flat 71 1 Weight Carriage 121 2 M10 x 25mm Screw
Head Screw 72 2 Pulley Plate 122 3 M10 x 81mm Bolt
28 2 Small Round 73 1 Double "U"-bracket 123 1 Right Barbell Glider
Bushing 74 2 Round Joint Bushing 124 2 M6 Nylon Locknut
29 1 Curl Knob 75 2 RoundAngled 125 2 Small Cable Trap
30 1 13mm Spacer Bushing 126 2 M10 x 127mm Bolt
31 4 25mm Square Inner 76 1 Curl Bar 127 5 M10 x 75mm Bolt
Cap 77 2 Large Weight Clips 128 2 M10 x 60mm Bolt
32 1 Center Base 78 1 Chain 129 2 M8 x 16mm
33 1 Rear Base 79 1 Ankle Strap Shoulder Bolt
34 1 Right Base 80 1 Butterfly Backrest 130 2 M10 x 72mm Hex
35 1 Left Base 81 1 Lat Cable Head Bolt
36 1 Left Upright 82 1 Low Cable 131 2 M8 x 12mm
37 1 Center Upright 83 1 Butterfly Cable Shoulder Bolt
38 1 Rear Upright 84 2 Clip Cover 132 1 M10 x 19mm Hex
39 1 Rear Top Frame 85 2 Cable End Clip Head Bolt
40 1 Top Frame 86 6 17mm Spacer 133 1 Right Upright
41 2 Guide Bar 87 2 27mm Spacer 134 2 Cable Clip
42 1 Butterfly Frame 88 2 Large Cable Trap 135 1 Thin Notched
43 1 Right Fly Arm 89 2 "#"-pulley Square Inner Cap
44 1 Left Fly Arm 90 9 90ram Pulley # 1 User's Manual
45 1 Storage Leg 91 4 Weight Bar Bushing # 1 Exercise Guide
46 2 Rack Foot 92 2 Fly Arm Bushing # 1 Grease Pack
47 4 Base Cap 93 4 25mm Retainer Ring # 3 Allen Wrench
Note: "#" indicates a non-illustrated part, Specifications are subject to change without notice. See the back cover
of the user's manual for information about ordering replacement parts.
