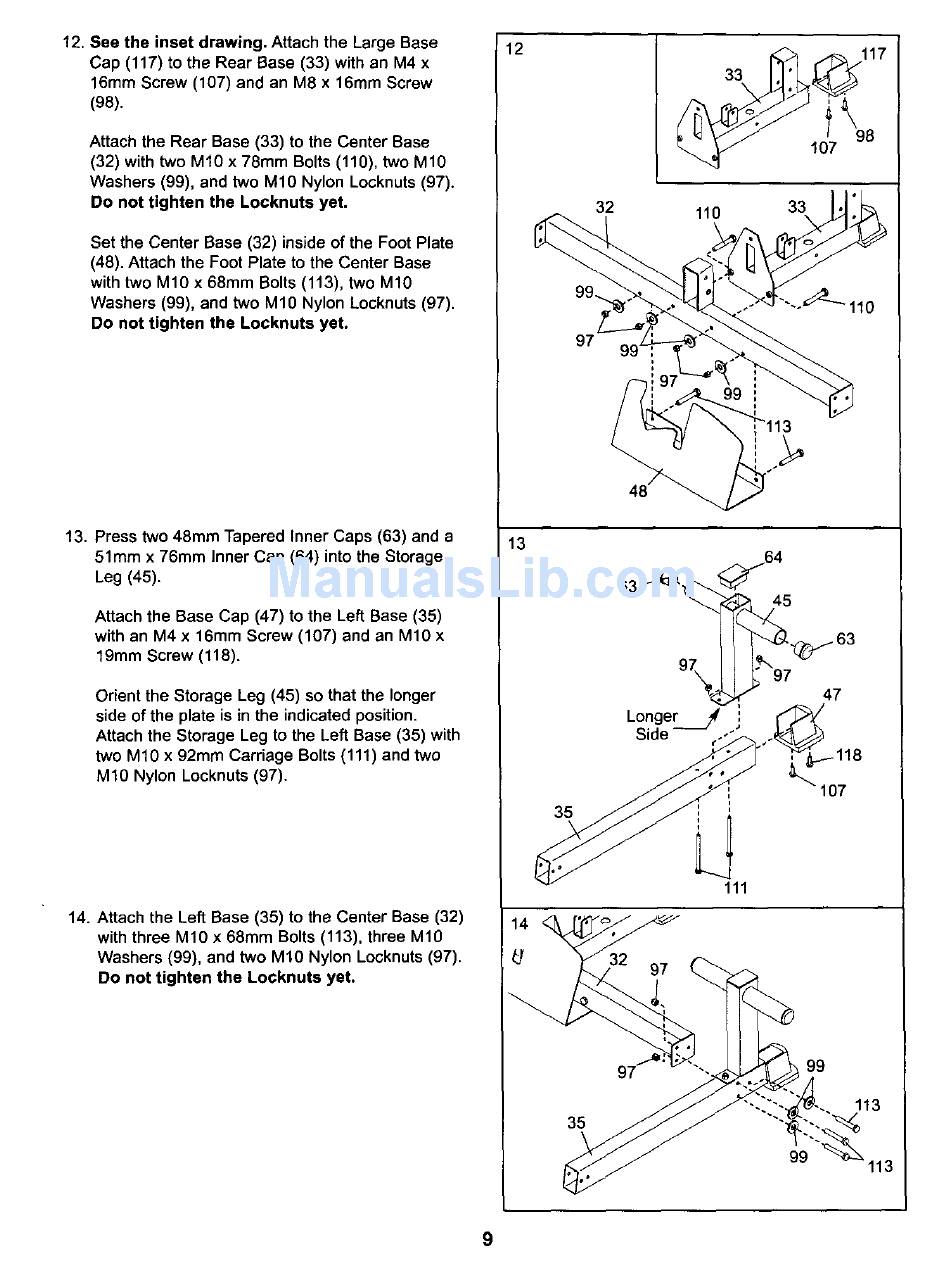

12.
See the inset drawing. Attach the Large Base
Cap (117) to the Rear Base (33) with an M4 x
16mm Screw (107) and an M8 x 16mrn Screw
(98).
Attach the Rear Base (33) to the Center Base
(32) with two M10 x 78mm Bolts (110), two M10
Washers (99), and two M10 Nylon Locknuts (97).
Do not tighten the Locknuts yet.
Set the Center Base (32) inside of the Foot Plate
(48). Attach the Foot Plate to the Center Base
with two M10 x 68mm Bolts (113), two M10
Washers (99), and two M10 Nylon Locknuts (97).
Do not tighten the Locknuts yet.
13. Press two 48mm Tapered Inner Caps (63) and a
51mm x 76mm Inner Cap (64) into the Storage
Leg (45).
Attach the Base Cap (47) to the Left Base (35)
with an M4 x 16mm Screw (107) and an M10 x
19mm Screw (118).
Orient the Storage Leg (45) so that the longer
side of the plate is in the indicated position.
Attach the Storage Leg to the Left Base (35) with
two M10 x 92mm Carriage Bolts (111) and two
M10 Nylon Locknuts (97).
14. Attach the Left Base (35) to the Center Base (32)
with three M10 x 68mm Bolts (113), three M10
Washers (99), and two M10 Nylon Locknuts (97).
Do not tighten the Locknuts yet.
!12
13
7
33
107
32 110 33
99_
97 99 _
"113
35
107
111
99
113
99
113
9
