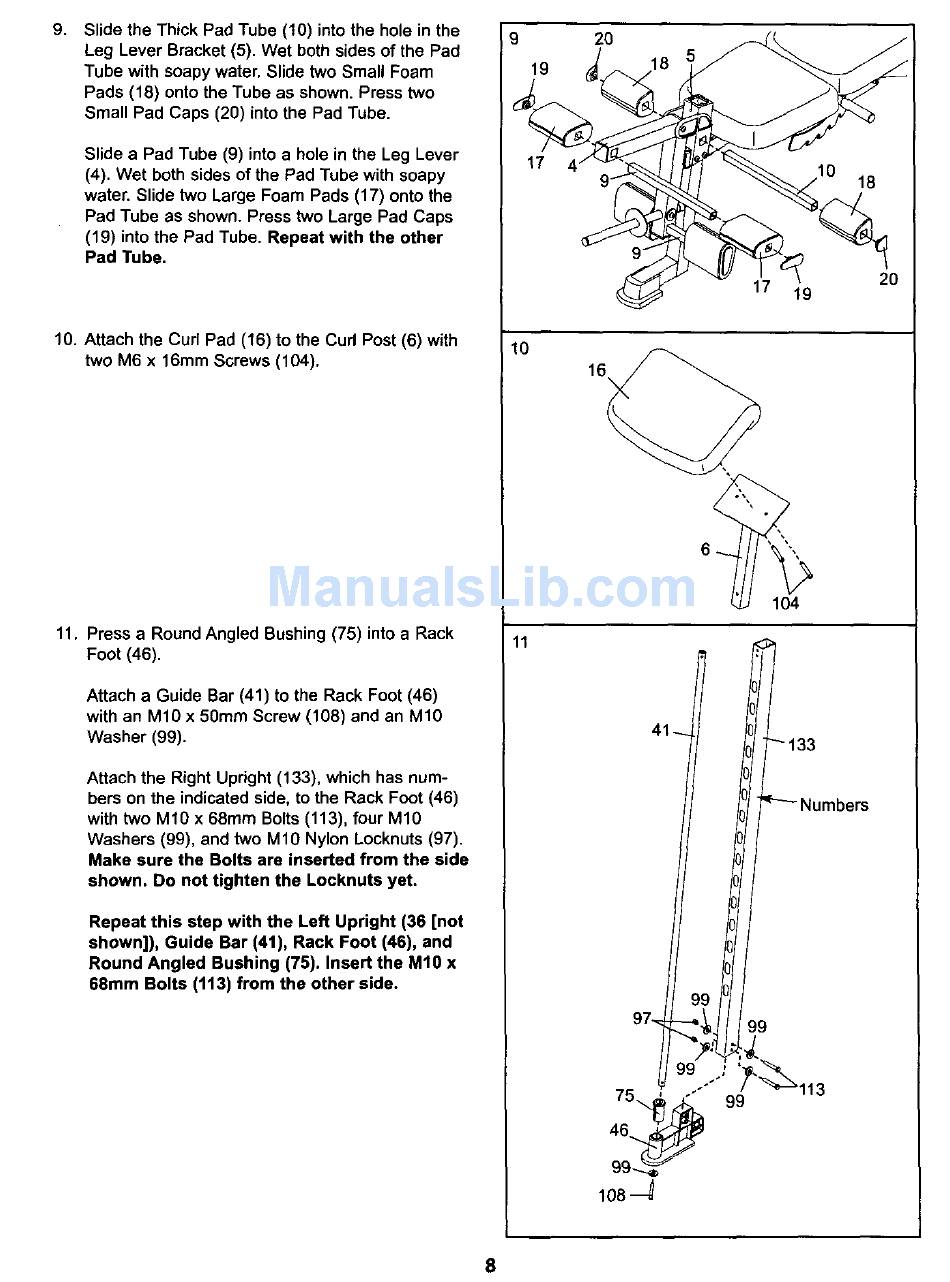

Slide the Thick Pad Tube (10) into the hole in the
Leg Lever Bracket (5). Wet both sides of the Pad
Tube with soapy water. Slide two Small Foam
Pads (18) onto the Tube as shown. Press two
Small Pad Caps (20) into the Pad Tube.
Slide a Pad Tube (9) into a hole in the Leg Lever
(4). Wet both sides of the Pad Tube with soapy
water. Slide two Large Foam Pads (17) onto the
Pad Tube as shown. Press two Large Pad Caps
(19) into the Pad Tube. Repeat with the other
Pad Tube.
10. Attach the Curl Pad (16) to the Curl Post (6) with
two M6 x 16mm Screws (104).
11. Press a Round Angled Bushing (75) into a Rack
Foot (46).
Attach a Guide Bar (41) to the Rack Foot (46)
with an M10 x 50mm Screw (108) and an M10
Washer (99).
Attach the Right Upright (133), which has num-
bers on the indicated side, to the Rack Foot (46)
with two M10 x 68ram Bolts (113), four M10
Washers (99), and two M 10 Nylon Locknuts (97).
Make sure the Bolts are inserted from the side
shown. Do not tighten the Locknuts yet,
Repeat this step with the Left Upright (36 [not
shown]), Guide Bar (41), Rack Foot (46), and
Round Angled Bushing (75). Insert the M10 x
68mm Bolts (113) from the other side.
