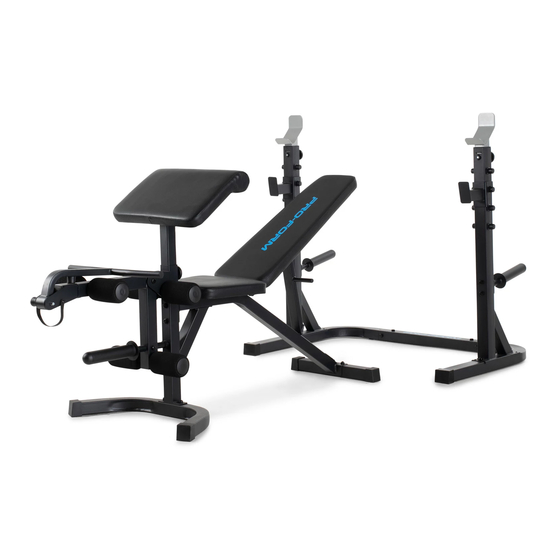

Model No. PFBE14530
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Patent Pending
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for ProForm PFBE14530
Summary of Contents for ProForm PFBE14530
- Page 1 Model No. PFBE14530 Serial No. Write the serial number in the space above for future reference. Serial Number Decal (Under Seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are...
-
Page 2: Table Of Contents
Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time, to order a free replacement decal. Apply the decal in the location shown. PROFORM is a registered trademark of ICON Health & Fitness, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precautions before using the weight bench. 1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual. 2. -
Page 4: Before You Begin
To help us assist you, please note the product model number and serial number before calling. The model number is PFBE14530. The serial number can be found on a decal attached to the weight bench (see the front cover of this manual). -
Page 5: Assembly
ASSEMBLY Make Things Easier for Yourself Everything in this manual is designed to ensure that the weight bench can be assembled suc- cessfully by anyone. However, it is important to realize that the versatile weight bench has many parts and that the assembly process will take time. - Page 6 2. Locate the Left Upright (5), which has a name decal in the indicated location. Press a 2” x 3” Inner Cap (30) into the Upright. Attach the Left Upright (5) and a Large Base Foot (15) to a Stabilizer (3) with two M10 x 93mm Button Bolts (37), an M10 Washer (41), an M10 Nylon Locknut (43), and an M10 Nylon Jamnut (46).
- Page 7 4. Attach a Small Base Foot (14) to the Bench Leg (2) with an M4 x 16mm Screw (39). Press a 50mm Square Inner Cap (25) and a 50mm Notched Square Inner Cap (50) into the Bench Leg. Attach the Bench Leg (2) to the Bench Frame (1) with two M10 x 68mm Button Bolt (38), two M10 Washers (41), and two M10 Nylon Locknuts (43).
- Page 8 8. Press four 25mm Square Inner Caps (24) into the Backrest Tubes (9). Orient the Backrest Tubes (9) so that the indicat- ed holes are closer to the bottom. Attach the Backrest Bracket (8) to the Backrest Tubes with four M10 x 45mm Button Bolts (35), four M10 Washers (41), and four M10 Nylon Locknuts (43).
- Page 9 11. Attach the Seat (16) to the Bench Frame (1) with an M6 x 63mm Screw (33), an M6 Washer (34), and two M6 x 16mm Screws (40). 12. Slide a Pad Tube (12) into a hole in the Leg Lever (7).
-
Page 10: Adjustments
ADJUSTMENTS The weight bench is designed to be used with your own weight set (not included). The steps below explain how the weight bench can be adjusted. See EXERCISE GUIDELINES on page 12 for important exercise information and refer to the accompanying exercise guide to see the correct form for each exercise. Refer also to the exercise information accompanying your weight set for additional exercises. - Page 11 ATTACHING THE CURL POST For some exercises, the Curl Post (10) must be attached to the weight bench. Remove the 50mm Square Inner Cap (25). Slide the Curl Post into the bench Leg (2). Align the adjustment holes in the Curl Post with the adjustment hole in the Bench Leg.
-
Page 12: Exercise Guidelines
EXERCISE GUIDELINES THE FOUR BASIC TYPES OF WORKOUTS MUSCLE BUILDING To increase the size and strength of your muscles, push them close to their maximum capacity. Your mus- cles will continually adapt and grow as you progres- sively increase the intensity of your exercise. You can adjust the intensity level of an individual exercise in two ways: •... - Page 13 Rest for a short period of time after each set. The ideal resting periods are: • Rest for three minutes after each set for a muscle building workout. • Rest for one minute after each set for a toning work- out.
- Page 14 EXERCISE MONDAY Date: AEROBIC EXERCISE TUESDAY Date: EXERCISE WEDNESDAY Date: THURSDAY AEROBIC EXERCISE Date: EXERCISE FRIDAY Date: Make photocopies of this page for scheduling and recording your workouts. WEIGHT WEIGHT WEIGHT SETS REPS SETS REPS SETS REPS...
-
Page 15: Part Identification Chart
PART IDENTIFICATION CHART Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw- ing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts may have been pre-attached. - Page 16 PART LIST—Model No. PFBE14530 Key No. Qty. Description Bench Frame Bench Leg Stabilizer Crossbar Left Upright Support Leg Lever Backrest Bracket Backrest Tube Curl Post Weight Rest Pad Tube Weight Tube Small Base Foot Large Base Foot Seat Backrest Curl Pad...
- Page 17 EXPLODED DRAWING—Model No. PFBE14530 R0803A...
-
Page 18: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre- pared to give the following information: 1. The MODEL NUMBER of the product (PFBE14530) 2. The NAME of the product (PROFORM 3.
