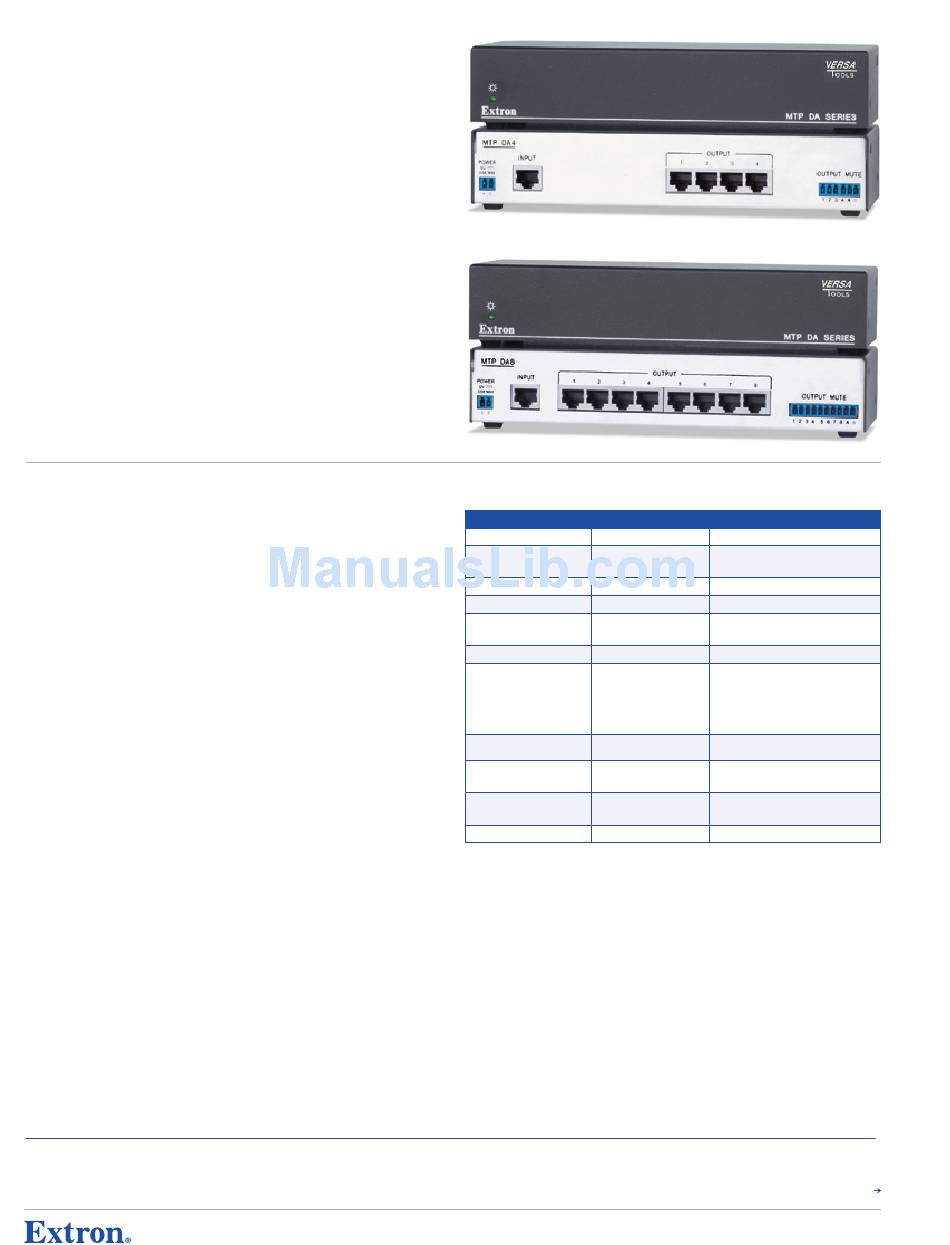

Extron electronics MTP DA84 Specification Sheet

MTP DA4
Four Output MTP - Mini Twisted Pair Distribution Amplifier
unique FeATures
Input: Female RJ-45 connector
•
Output: Four female RJ-45 connectors
•
MTP DA8
Eight Output MTP - Mini Twisted Pair Distribution Amplifier
unique FeATures
Input: Female RJ-45 connector
•
Output: Eight female RJ-45 connectors
•

coMMon FeATures

Splits and buffers input from one twisted pair transmitter to multiple twisted
•
pair receivers
• Compatible with all Extron VT Series and MTP Series transmitters and receivers
• Global and individual output muting via contact closure
• Supports RGBHV, RGBS, RGsB, component video, S-video, composite video,
and audio
• Compatible with HDTV component video, bi-level or tri-level sync
• Supports audio and unidirectional RS-232 signals
• Rack, under-desk, and projector mountable
• Front panel LED power indicator
• External universal power suplly included — Provides worldwide power compatibility
descriPTion
The MTP DA4 and MTP DA8 Distribution Amplifiers are ideal for systems where high resolution
video signals along with audio or control signals must be transmitted long distances to multiple
displays. Each distribution amplifier splits the signal from an Extron Mini Twisted Pair Series
transmitter to multiple MTP Series receivers, enabling the creation of dynamic multi-display
systems and expanding the possibilities for twisted pair based system integration.
The MTP DA4 and MTP DA8 feature video mute control via contact closure for use with a
control system. For example, in a courtroom the judge can select which specific displays
are receiving a video signal, or mute all displays with a single push of a button. This video
muting feature eliminates the need for additional switching devices or complex control system
command strings.
Each model is compatible with high resolution computer-video signals, HDTV signals with
bi-level or tri-level sync, component video, S-video, composite video, and audio signals. They
can also be used to transmit unidirectional RS-232 serial control signals to send commands
to multiple destinations.
The MTP DA4 and MTP DA8 each accept a single proprietary analog signal from an
Extron MTP Series transmitter over any CAT 5, 5e, or 6 twisted pair cable or with Extron
UTP23SF-4 Enhanced Skew-Free A/V UTP cable, and sends a buffered proprietary analog
signal to four or eight MTP Series receivers. Each model features inputs and outputs on female
RJ-45 connectors.
Model
MTP DA4
MTP DA8
90
Version descriPTion
Four Outputs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Eight Outputs
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
usa West usa West
+1.714.491.1500 / +800.633.9876 +1.714.491.1500 / +800.633.9876
+1.714.491.1517 FAX +1.714.491.1517 FAX
Compatible Extron Twisted Pair Transmitters and Receivers
Transmitters Receivers
MTP T CV MTP R CV
MTP T AV
MTP R AV
MTP T AV 45
MTP T AV RCA MTP R AV RCA
MTP T SV MTP R SV
MTP T SVA
MTP R SVA
MTP T SVA 45
MTP T SVA RCA MTP R SVA RCA
MTP T 15HD A
MTP T 15HD A D
MTP RL 15HD A
MTP T 15HD A AAP
MTP RL 15HD A SEQ
MTP T 15HD A WM
SW MTP T 15HD A Series
MTP RL 15HD A C7
MTP T 15HD A C7
MTP RL 15HD A SEQ C7
MTP RL 15HD RS
MTP T 15HD RS
MTP RL 15HD RS SEQ
MTP RL 15HD RS C7
MTP T 15HD RS C7
MTP RL 15HD RS SEQ C7
VTT001 VTR001
usa east usa east
+1.919.863.1794 / +800.633.9876 +1.919.863.1794 / +800.633.9876
+1.919.863.1797 FAX +1.919.863.1797 FAX
M T P - M i n i T w i s T e d P a i r s e r i e s
Signal Type
Composite Video
Composite Video & Stereo Audio
Composite Video & Stereo Audio
S-Video
S-Video & Stereo Audio
S-Video & Stereo Audio
RGBHV & Audio
RGBHV & Audio – for CAT 7
RGBHV & RS-232
RGBHV & RS-232 – for CAT 7
RGBHV
PArT #
60-685-01
60-686-01
www.extron.com www.extron.com
© 2008 Extron Electronics. All rights reserved. © 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice. Pricing and specifications may change without notice.
Continued
