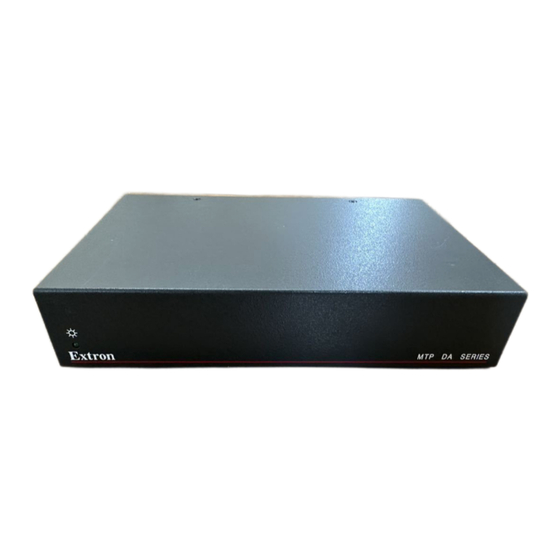

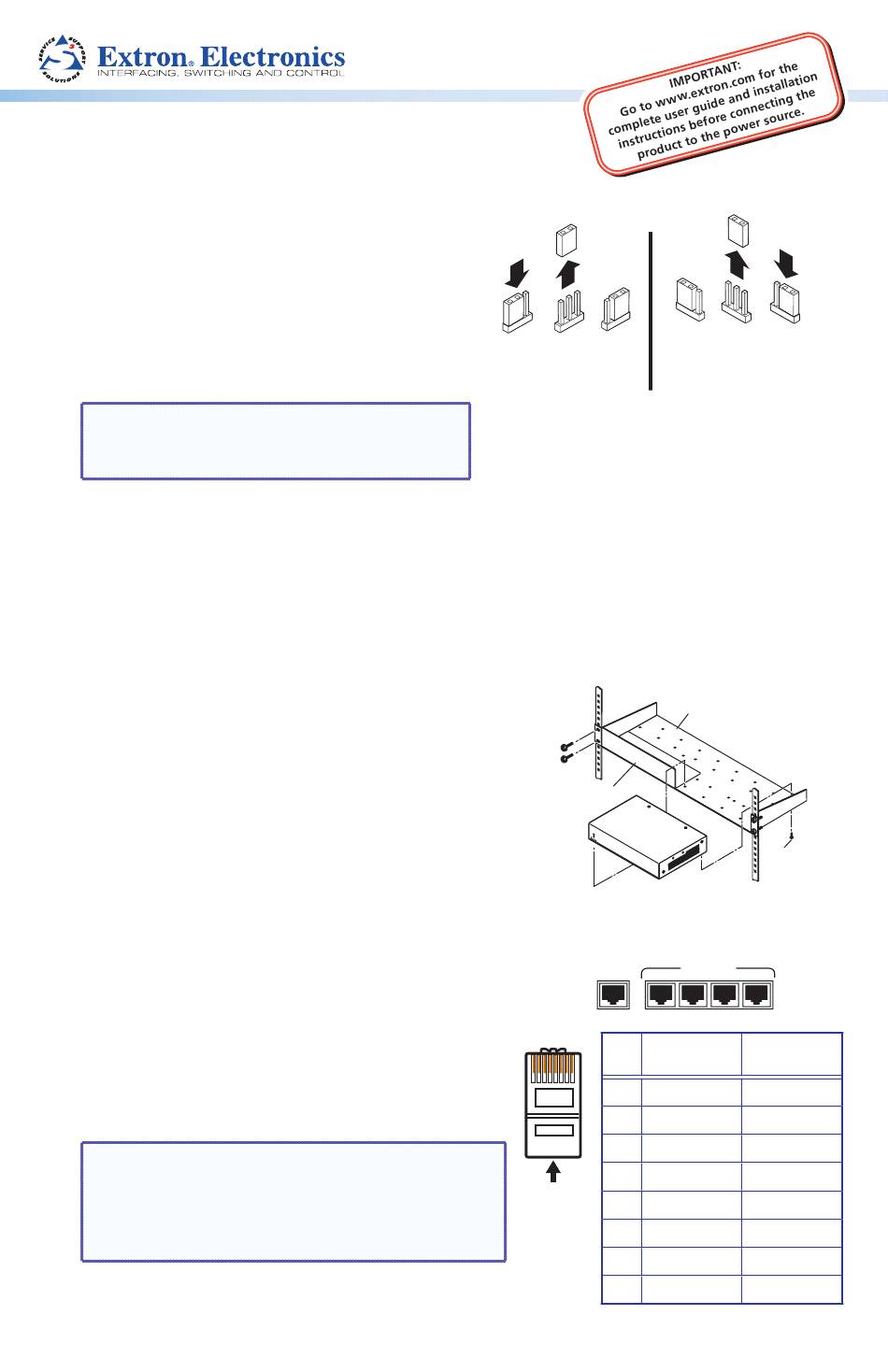

MTP DA4 and DA8 • Setup Guide
This guide provides basic instructions for
an experienced installer to set up and operate
the Extron MTP DA distribution amplifier.
Pre-installation — Jumpers
See figure 1 at the right or see "Termination
and Mute Jumpering" in the MTP DA4 and
DA8 User Guide for more information.
NOTE: The jumpers have no effect when
the DA is part of an MTP CV/SV series, or
VTT001/VTR001 system.
Jumper J3
This sets the DA to properly terminate RGB video as well as the audio (default) or serial
portion of the input signal.
Jumper J9
This sets the DA to always pass the audio or serial link regardless of the contact closure
mute status (default). It can also be set to mute the audio or serial link when its video mute
function is activated.
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources
and mount the MTP DA as required. A mounting
example is at the right (see figure 2). See "Mounting"
in the user guide for more mounting options.
Step 2 — Input from the Transmitter
Terminate a TP cable as shown in figure 3. Connect
the cable into a MTP transmitter and into the AV
input connector.
Step 3 — Outputs to the Receivers
Terminate up to four or eight (depending on
model) TP cables as shown in figure 3. Connect
the cables into the DA AV output ports and into
receivers that are compatible with the transmitter.
NOTES: The inputs and outputs should be
•
terminated using the same standard on both
ends of the cable.
Only use the TIA/EIA T568A standard
•
when using Enhanced Skew-Free™ AV cable.
Serial or
Audio
(Default)
(Default)
J3
Figure 1. Jumpers
1/2 Rack Width False Front
Face Plate
M TP
DA
SE
RI ES
Use 2 mounting holes on
opposite corners.
Figure 2.
6-inch Deep Rack
A/V INPUT
1
Pins:
1 2 3 4 5 6 7 8 Pin
Wire Color
1 White-green
2 Green
3 White-orange
4 Blue
Insert
5 White-blue
TP Wires
6 Orange
7 White-brown
8 Brown
Figure 3. TP Cable Termination
Disable
Enable
or
Mute
Mute
J9
6" Deep Rack Shelf
(2) 4-40 x 3/16" screws
Shelf Mount
A/V OUTPUTS
2 3 4
T568 A T568 B
Wire Color
White-orange
Orange
White-green
Blue
White-blue
Green
White-brown
Brown
