RS-232 connection
Remote port — Connect a host device, such as a computer or touch panel
12
control, to the IN1508 switcher via this 9-pin D connector for serial RS-232
control (figure 2-5).

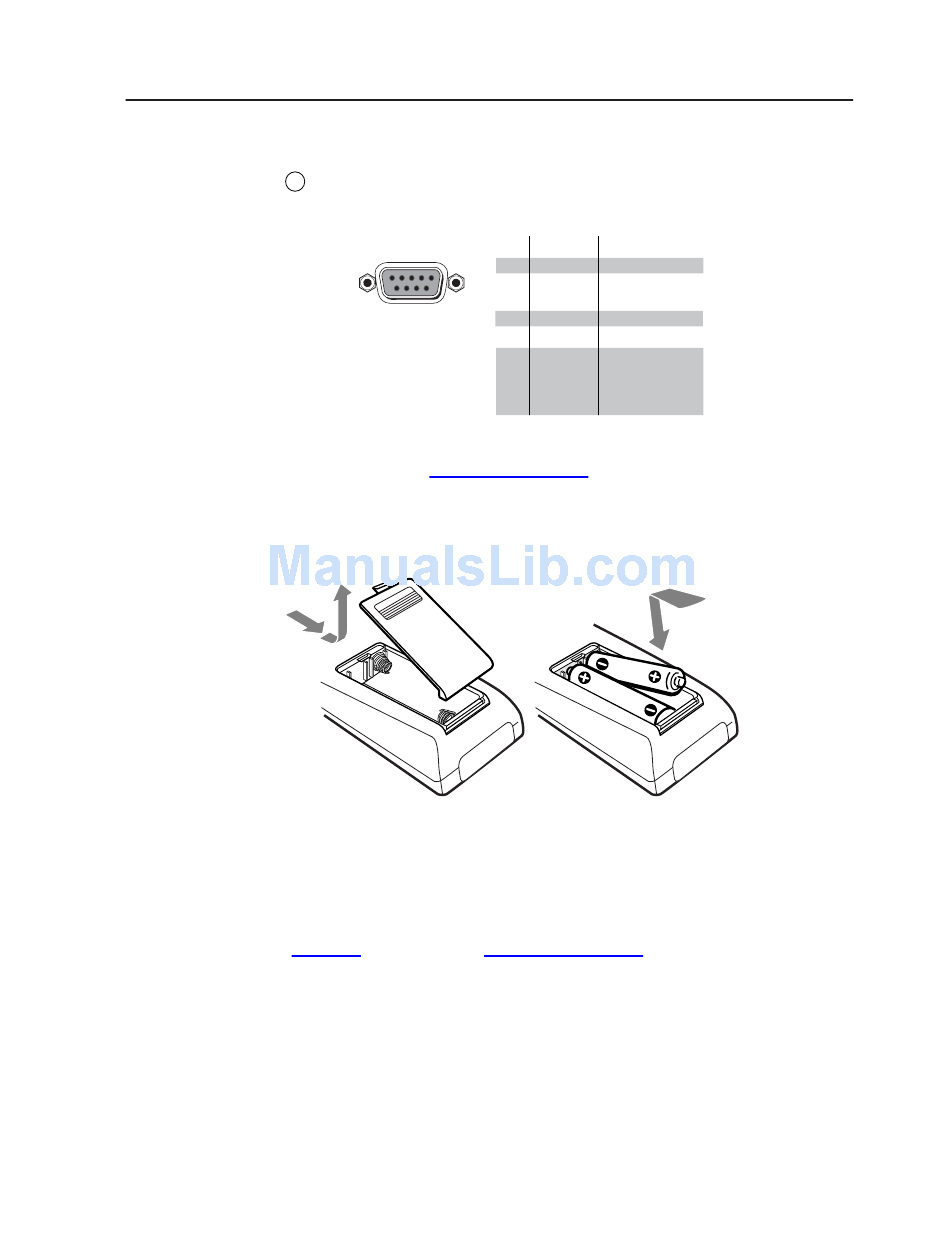

Figure 2-5 — Remote port pin assignments
See chapter 4, "Serial Communications", for definitions of the SIS commands.
Remote Control Battery Installation
Install two AAA batteries as shown (figure 2-6).
Figure 2-6 — Battery installation
Configuration
The switcher must be configured for the video that is connected to input 5 and for
the output video device. Configuration can be accomplished using either the front
panel controls, the IR remote control, or the Simple Instruction Set. See chapter 3,
"Operation", and chapter 4, "Serial Communications".
Pin
RS-232
5
1
1
—
2
TX
3
RX
9
6
4
—
Female
5
Gnd
6
—
7
—
8
—
9
—
IN1508 Scaling Presentation Switcher • Installation
Function
Not used
Transmit data
Receive data
Not used
Signal ground
Not used
Not used
Not used
Not used
2-5
