Chapter 1 • Introduction to the Matrix 3200/6400 Video Switcher

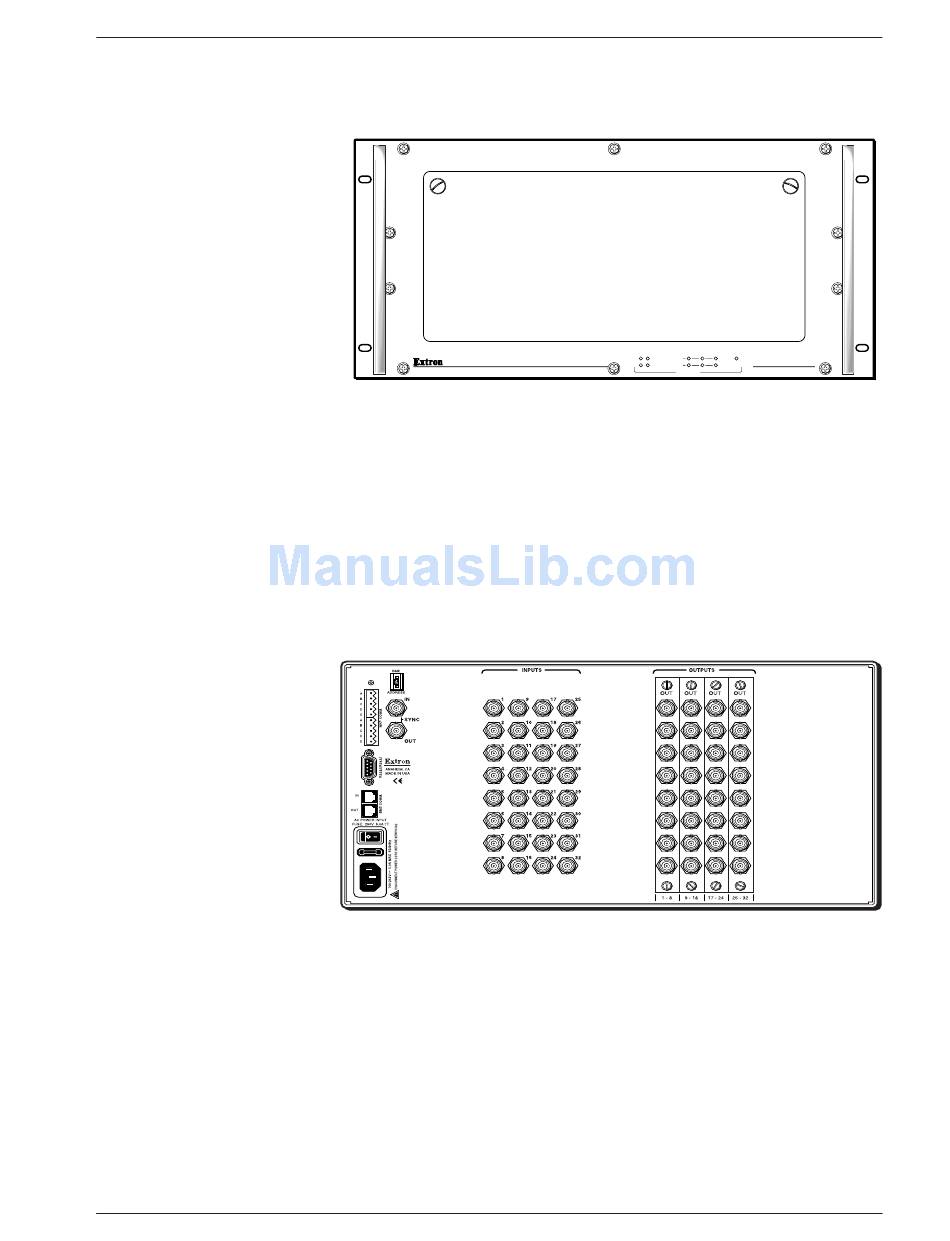

Matrix 3200 Video Switcher
(Front View) - shown with a
blank access panel.
Matrix 3200 Switcher
(Rear View) - shown with 4
Video Output cards installed.
Matrix 3200/6400 System Manuals
Extron • Matrix 3200/6400 Series • User's Manual
This manual (68-355-03) covers the Matrix 6400 Audio Switcher. Following is a
list of related manuals:
• 68-355-01 = MKP 1000 User's Manual
• 68-355-02 = FPC 1000 User's Manual
• 68-456-01 = MCP 1000 User's Manual
• 68-355-04 = Matrix 3200 and 6400 Video User's Manual
• 68-355-05 = Matrix 3200 and 6400 Wideband Video/Sync User's Manual
SYSTEM
POWER SUPPLIES
COMMUNICATIONS
STATUS
-V
+V
RS232
BME
REMOTE
PRIMARY
TX
MATRIX 6400
REDUNDANT
RX
AUDIO
DIAGNOSTICS
1-4
