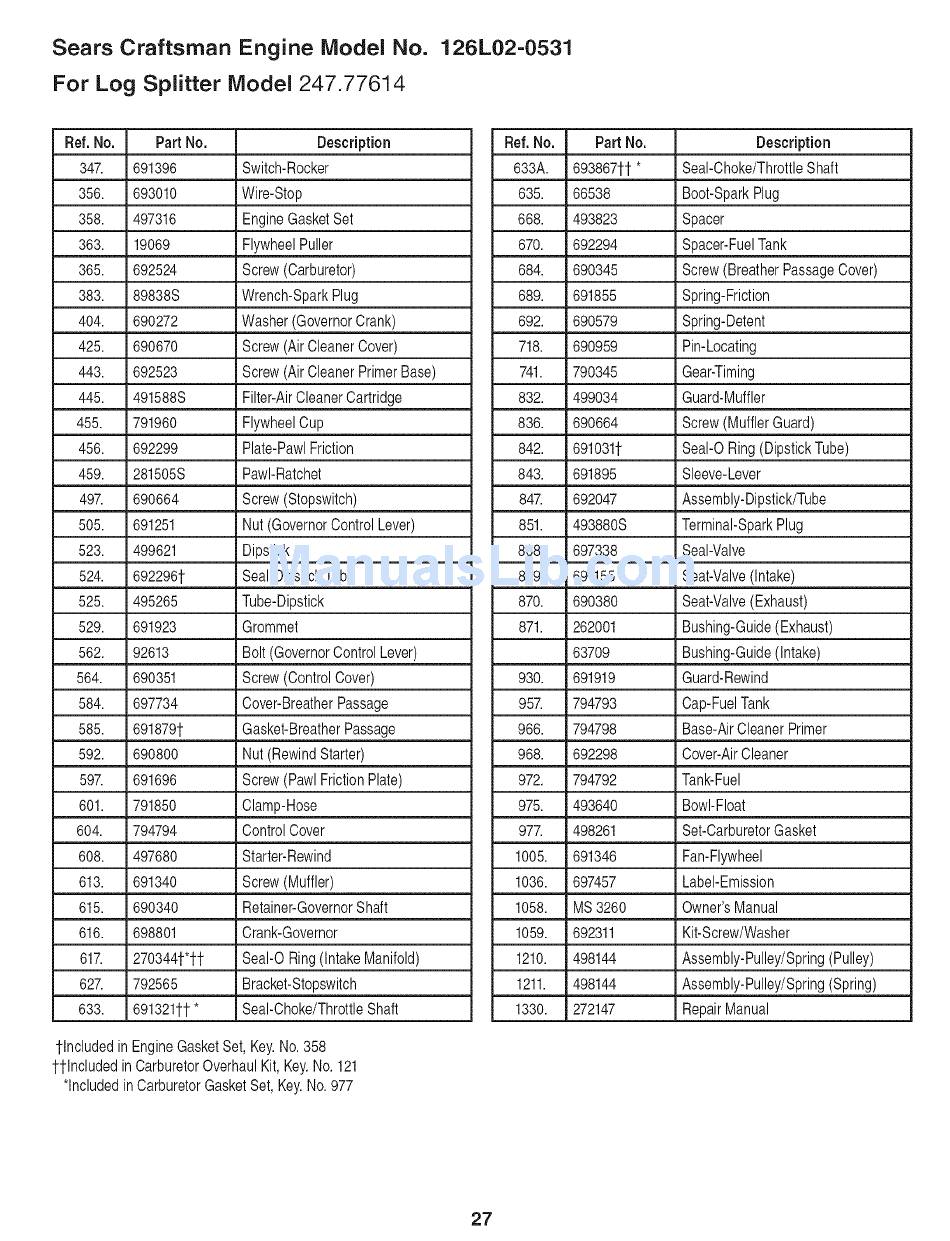

Sears Craftsman
Engine
Model No. 126L02-0531
For Log Splitter
Model 247.77614
Ref. No.
Part No.
Description
347.
691396
Switch-Rocker
356.
693010
i Wire-Stop
I
358.
497316
EngineGasketSet
363.
19069
FlywheelPuller
365.
692524
i Screw(Carburetor)
383.
89838S
i Wrench-SparkPlug
404.
690272
i Washer(GovernorCrank)
425.
690670
Screw(Air CleanerCover)
443.
692523
I Screw(Air CleanerPrimerBase)
445.
491588S
Filter-Air CleanerCartridge
455.
791960
Flywheel C up
456.
692299
I Plate-Pawl F riction
459.
281505S
PawI-Ratchet
497.
690664
i Screw(Stopswitch)
505.
691251
I Nut (GovernorControlLever)
523.
499621
Dipstick
524.
692296t
i SeaI-Dpstck Tube
525.
495265
I Tube-Dipstick
529.
691923
I Grommet
562.
92613
i Bolt(GovernorControlLever)
564.
690351
I Screw(ControlCover)
584.
697734
Cover-Breather P assage
585.
691879t
i Gasket-Breather P assage
592.
690800
I Nut (RewindStarter)
597.
691696
i Screw(PawlFrictionPlate)
601.
791850
Clamp-Hose
604.
794794
ControlCover
608.
497680
i Starter-Rewind
613.
691340
i Screw(Muffler)
615.
690340
Retainer-Governor Shaft
616.
698801
Crank-Governor
617.
270344t*tt
Seal-ORing(intake Manifold)
627.
792565
Braeket-Stopswiteh
633.
691321tt *
Seal-Choke/Throttle Shaft
tlncluded in EngineGasketSet, Key.No. 358
ttlncluded in CarburetorOverhaulKit, Key.No. 121
*includedin CarburetorGasketSet, Key.No. 977
Ref. No.
Part No.
Description
633A.
693867tt *
Seal-Choke/Throttle Shaft
635.
66538
Boot-SparkPlug
668.
493823
Spacer
670.
692294
Spacer-Fuel Tank
684.
690345
Screw(BreatherPassageCover)
689.
691855
Spring-Friction
692.
690579
Spring-Detent
718.
690959
Pin-Locating
741.
790345
Gear-Timing
832.
499034
Guard-Muffler
836.
690664
Screw(MufflerGuard)
842.
691031t
Seal-ORing (DipstickTube)
843.
691895
Sleeve-Lever
847.
692047
Assembly-Dipstick/Tube
851.
493880S
Terminal-Spark Plug
868.
697338
Seal-Valve
869.
691155
Seat-Valve (intake)
870.
690380
Seat-Valve (Exhaust)
871.
262001
Bushing-Guide (Exhaust)
63709
Bushing-Guide (intake)
930.
691919
Guard-Rewind
957.
794793
Cap-FuelTank
966.
794798
Base-AirCleanerPrimer
968.
692298
Cover-Air Cleaner
972.
794792
Tank-Fuel
975.
493640
Bowl-Float
977.
498261
Set-Carburetor G asket
1005.
691346
Fan-Flywheel
1036.
697457
Label-Emission
1058.
MS3260
Owner'sManual
1059.
692311
Kit-Screw/Washer
1210.
498144
Assembly-Pulley/Spring (Pulley)
1211.
498144
Assembly-Pulley/Spring (Spring)
1330.
272147
RepairManual
