Summary of Contents for Mitsubishi CS-35707 Owner's g
Page 1

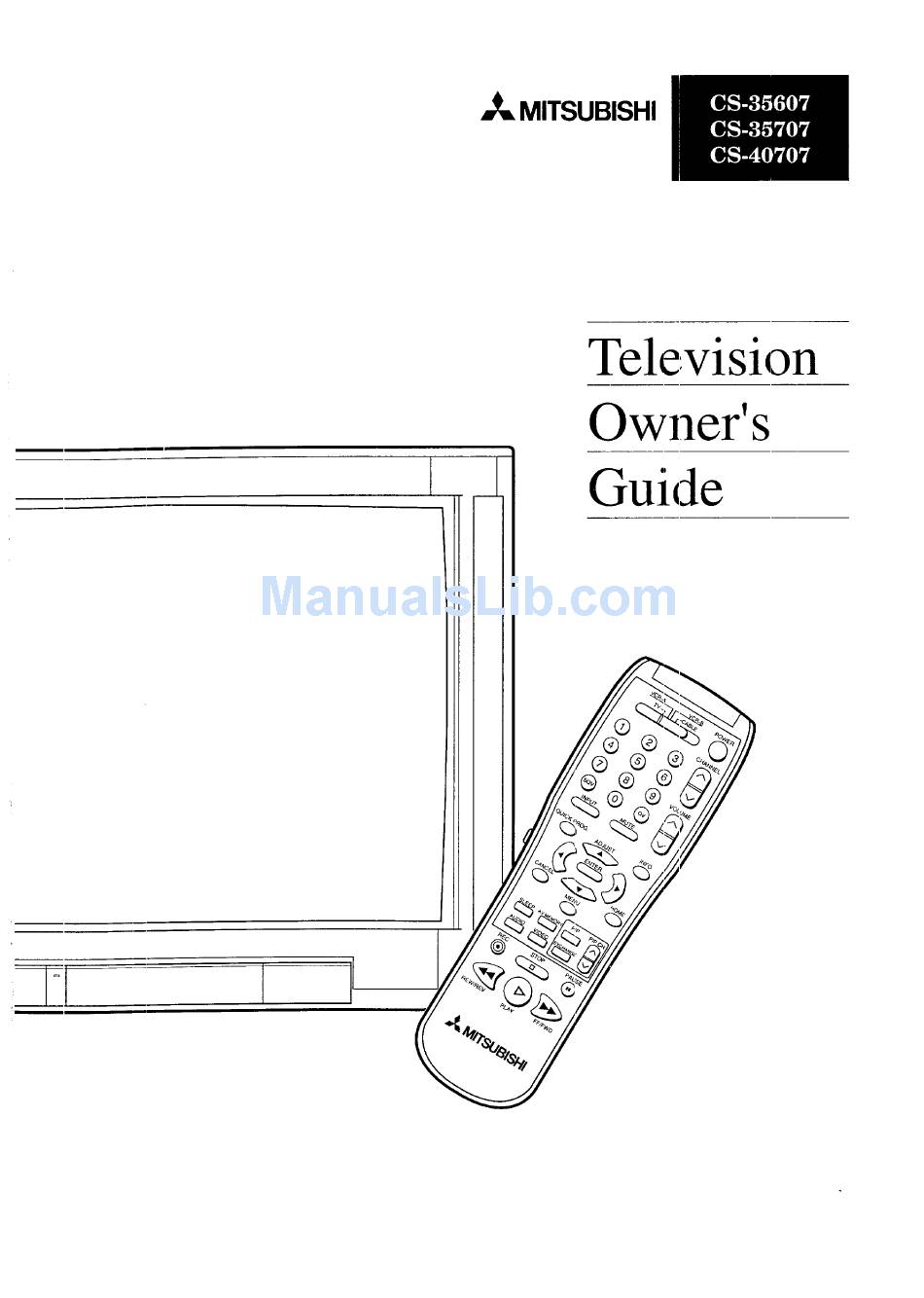

_,_ MITSUBISHI Television Owner's Guide I,K ?
Page 2
RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended alert the user to the presence...
TV + VCR + cable with a cable box ..........TV + home theater receiver (AN receiver) ........TV + stereo audio system ..............TV + Mitsubishi products that have A/V Network: terminals ..39 Chapter 3: Operating Your TV ..............
Page 4
Table of Contents (cont.) Using the parent lock ................Selecting the AV memory position ............Customizing the AV memory position ..........Adjusting the sound ................Adjusting the picture ................Chapter 4: Using the Special Features ............ Understanding the On-Screen Displays ..........
Page 5
IMPORTANT SAFEGUARDS PLEASE READ ALL THESE INSTRUCTIONS REGARDING YOUR TELEVISION SET AND RETAIN FOR FUTURE REFERENCE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE TV RECEIVER. 1. Read Instructions Ventilation Read all safety and operating instructions before Slots and openings in the cabinet operating the appliance.
Important Safeguards (cont.) 18. Servicing 14. Power Lines Do not attempt to s;ervice this TV receiver An outside antenna system should not be located yourself as opening o:r removing covers may in the vicinity of overhead power lines or other expose you to dangerous voltage or other...
Welcome to Mitsubishi PREFACE Congratulations on your purchase of this Mits_ubishi TV. Your TV is designed for superb visual and audio performance as well as total reliability. To familiarize you with your TV and owner's g,mide, we suggest that you read through...
Summary of Special Features Your top rated Mitsubishi TV delivers: • 181-Channel Capacity --- programs u_ to 181 channels, ensuring your continued viewing pleasure as cable services continue to expand. • Four-Speaker Sound System --- a sp,_cial speaker system that produces clear stereo sound.
t Unpacking Your What you will find As you unpack your new TV, please check to be sure that following items are included: • an owner's guide containing a warranty, • a registration card, • a remote control transmitter, • two AAA size batteries for the remote control, •...
The appendix explains a procedure for bypassing the parental lock. You will also find a detailed index at the, back of the book. Preface: Welcome to Mitsubishi...
# Some Conventions Used in this Guide Mitsubishi has gone to great effort to provid_ users with an easy-to- follow, useful owner's guide. You will find that different types of information are treated in different ways• You should read information...
Page 12
CHAPTER Getting to Know Your TV Now that you have unpacked your TV, read through the satiety information, and glanced at the overview explaining how this owner's guide is organized, it's time to become familiar with the buttons and controls used to operate the TV.
Overview of the control panel (cont.) ® volume controls (VOLUME) Press the ^ button to turn up the volume _nd the v button to turn down the volume. ® channel controls (CHANNEL) Use the ^ button to switch to a channel with a higher number and the v button...
Overview of the Remote Control Getting ready to use the remote control installing the batteries Take the box containing two AAA size batteries from the packing bag. Remove the back cover of the remote control by pushing the tab in the direction of the arrow and lift:[ng off the cover.
Overview of the remote control (cont.) some do's and don'ts To ensure that your remote control continues working properly, fol- low these guidelines: • Don't press two or more buttons at the same time, unless are specifically instructed to do so in this owner's guide. •...
Page 17
Remote control buttons and functions This section provides you with an overview of the remote control's buttons and the features they control. This section does not provide detailed explanations for using the remote's buttons. To determine which buttons are used with a particular feature, refer to the instructions...
Use this switch to select the Mitsubishi VCR. _%en you press this but- layer you want to set up or use. ton, your TV s_itches to Input-l, your VCR turns on, and the VCR's "Program to record"...
Remote control buttons functions (cont.) VCR-A VCR-B POWER CHANNEL QUICK PROG. INFO ® MENU STOP PAUSE ®_ REWIREV FF/FWD PLAY =,_ MITSUBISHI Chapter 1: Getting to Know Your TV...
Page 20
VCRs: cassette stereo/SAP decks, CD players, etc:. These are l_re- speakers internal/external programmed to ope_m_;e select Mitsubishi accessory out PIP/SAP/Main components. The PLAY button is also used with the Active AV Network (See "Using • video function...
Page 21
CHAPTER Connecting Your TV This chapter offers step-by-step instructions for _onnecting your TV to most cable systems, VCR's, and other equipment. It contains following sections: Overview of the Back Panel Basic Connections...
Overview of the Back Panel antenna terminals (ANT-A, CABLE LOOP OUT, ANT-B) Use ANT-A and ANT-B terminals to re,=eJve a signal from VHF/ UHF antennas or your cable system. U:_e the CABLE LOOP OUT TERMINAL to send the signal being received by the ANT- A terminal out to another...
TWs audio signal to an audio amplifier. audio ACCY output terminals Use to connect the accessory equipment. (_) Active A/V Network terminal Use to connect Mitsubishi products thai; have A/V network terminals. (_) external speaker terminals Use to connect external speakers.
• TV + home theater receiver (AN receiver), • TV + stereo audio system, • TV + Mitsubishi products that have A/V Network terminals. You should unplug your TV and arty other components before I_Warning: connecting them.
TV + external speakers equipment you will need To complete this hook-up, you will need: • one set of speaker lead wires. Tab (Push Here) TV Rear Terminals procedure Unplug the TV. Connect the speaker wires to the external speakers. Push down on the tab of the external speaker (EXT SP)
TV + cable with a cable equipment you will need Use this hook-up if you need a cable box to descramble some of your cable signals. When you complete this hook-up, you may want to set up your remote control to operate your cable box.
Page 27
TV + cable with a cable box (cont.) _--Incoming Cable TV Rear Terminals _Iu'rK}N:C<3 CrONNEC] EXTERNAL SPEAKER TERMIt4ALS TO SPEAKERS T_LaT HAVE /_'_ OTHER PROOUCT CO_ECTEC THEM Cab;e AT_EN'no_:NE pAS CONNEC:TER eO_NES M)E _L'TPA_,EURS E)CrERN_S A _)ES ENCEI_T_S RACCORO_ES 'JN ALrr_E ANT-B {;'5t}) HF/UHF...
TV + separate antennas equipment you will need If you have separate UHF and VHF antennas, you need to combine the antennas to connect them to tlhe TV. To do this, you need a UHF/VHF combiner. (There are different combiners for different kinds of leads.
Page 29
TV + VCR + antenna or cable witlhout cable equipment you will need You may want to connect a VCR along with your antenna or cable system to your TV. To complete this hook-up, you may need the following equipment. one 75 ohm coaxial cable, one set of RCA pin-type...
(INPUT-1 or INPUT-2) to which you connected the VCR. Important: If you are using the AV network with your Mitsubishi VCR, you must connect the VCR to INPUT-1. Basic Connections...
Page 32
TV + VCR + cable with a cable equipment you will need This hook-up allows you to record a scrambled channel while watching a non-scrambled channel. When you complete this hook-up, you should set up your remote control to operate you:r cable box.
TV + VCR + cable with a cable (cont.) procedure (Please see illustration on the following page.) Connect your cable system's incoming cable to the ANT-A terminal on the back of the TV. Connect the first coaxial cable to the CABLE LOOP OUT terminal on the back of the TV;...
Page 34
TV + VCR + cable with a cable (cont.) ,_--Incoming Cable Rear Terminals AUDIO OUT VIDEO OUT S-VIDEO OUT "_ Antenna _- @ Cable-- _---Connect Red Lead or the other Yellow Lead -- but not both Cable Cable " =_cC} i=c_ Cable RearTerminals...
TV + home theater receiver (A/V receiver) A home theater (A/V) receiver has video inputs and outputs and is used to control an A/V system. See your receiver's owner's guide for information about connecting VCRs and other equipment. If your receiver does not have video inputs and outputs,...
Page 36
TV + home theater receiver receiver) (cont.) Connect one Home Theater Receiver Rear Panel llllll[tll]ll or the other ,ll.]=l*ll_l=,l but not both ®®@@ °J VCR1 TAPE v_#2 VCR1 MONITOR OUT 0 ®,® ® _®.--- --_I_ .) _. ®o VCR1 VCR2 TAPE RE(;...
TV + stereo audio system You may want the sound from your TV and/or VCR to play through your home audio system. To do this, complete the necessary connections shown on previous pages of this chapter, and then complete the fi)llowing instructions. equipment you will need To hook-up...
Page 38
TV. Connect the other end of this cable to the ._r NETWORK terminal on the back of a Mitsubishi component that has an A/V network terminal. You can now point your component remote (such as a VCR...
CHAPTE. THREE Operating Your TV Now that your TV is connected to a cable systera, an antenna, possibly some external components, it's time to en._oy your equip- ment. This chapter explains how to operate the TV. You'll find information • Adjusting the color purity, •...
If there is still color impurity after adjusting the switches, please contact your Mitsubishi Authorized Warranty (',enter. _>Important: Color impurity can also be caused by un shielded speakers strong magnets.
Page 42
• channel control • enter button If you have a cable box (including the digital satellite box), a non- Mitsubishi VCR, a Mitsubishi laserdisc player, an A/V receiver, a compact disc, you can set up the layers in the remote control operate these components.
Page 43
Point the remote control at the VCR and press the desired buttons. If you are using a Mitsubishi VCR, you can use all of the butLons the remote control to operate your VCR except for MUTE, VOLUME, and the PIP function buttons.
Page 44
Using remote control operate VCRs, cable boxes other components (cont.), ...enter this ,..enterthis ...enter this If yourcable If your cable box/satellite If your cable/sa box is this brand... code is this brand... code box is this bra code Scientific Atla 57, 59, 62, 67, 89 61, 62, 82 66, 88, 89, 91,92...
Page 45
CD player, choose CABLE. While holding in the POWER button on tile remote control, enter one of these code numbers: • For a Mitsubishi A/V receiver, compact disc: 30, 31 or 35 • For a Mitsubishi laserdisc player: 32 or 33 •...
Page 46
Use the select switch on the top of the remote tc choose the CABLE layer. Point the remote control at the A/V receiver and press the desired buttons. If you are using a Mitsubishi HTS-100, you can use the POWER, VOLUME, and MUTE buttons to operate the re- ceiver.
Turning the TV on/off Before using the remote control to operate the TV, set the select _>Important: switch on the top the remote control to "TV." Use the POWER button on either the control panel or the _."emote control to turn the TV on and off. The power indicator lights in green when you turn the TV on.
Selecting input source If you connect components such as VCRs, camcorders, or laserdisc players to your TV, you need to change the input source to view the signals from these components. To select an input source, press the input button (INPUT) on the control panel...
Changing channels Your TV offers four ways to change channels once they have been programmed into channel memory: • selecting channels one-by-one with the channel controls, • directly accessing a channel by pressing the number buttons, • using the special QuickView option to switch to the memo- rized QuickView channel,...
Page 50
Changing channels (cont.) using the QuickView option The QuickView feature can work in two ways: to recall the last channel viewed (Last Channel Recall), or to recall a channel put into QuickView memory. If you have not memorized channels into QuickView Memory, Last Channel...
Page 51
Changing channels (cont.) using the Sup, erQuickView option To view the channels programmed 0 O 0 r% OOO_ into SuperQuickView memory, OOO_ press the SQV button .O00_ repeatedly. This displays your SuperQuickView channels sequence. (See "Editing the channels," ® __.._ ® this chapter for information :programming...
Page 52
Understanding the 3-D Graphic ViewPoint ® on- screen menus One of the distinctive features of this TV is Mitsubishi's exclusive 3-D Graphic ViewPoint On-Screen Operating System. Unlike other television menus systems, 3-D Graphic ViewPoi_Lt includes a special Picture-in-Picture screen to let you view the TV...
Memorizing channels You can use the menus to automatically memorize the channels your TV can receive. Once channels are memorized, you can ,_can through them using the channel controls on the remote control control panel. O Press the MENU button on the remote control.
Setting the clock (cont.) •O Use the ADJUST up & down buttons to _elect the Tirae Zone you live in. The available time zones are: Atlantic, Eastern, Central, Mountain, Pacific, Alaska and ttawaii. The automatic clock set-up is completed. Press the MENU button to return to normal...
Setting the AV Network The AV Network is a system that Mitsubishi developed to make it easier to operate many products with one remote control. When the AV Network is connected between two Mitsubislhi products, can point the remote control at one product and it "passes"...
Setting timer This special feature allows you to automaticaLy turn the TV on and tune to a selected channel, at a specific: time, f_r a single day or range of days. For example, you can set the timer to turn the TV on every day from Monday through...
Editing the channels This special feature allows you to add or remove a channel from memory, add or remove a channel from the SuperQuickView list, lock or unlock a channel, and edit a channel name. Memory - - - After all available channels are memorized with tile...
Page 58
Editing channels (cont.) Preferences Memory • Use the ADJUST up & down buttons to select "Memory." • Press the ENTER button to add (checked) or remove (un- checked) the displayed channel from memory. • Use the ADJUST up & down buttons to select "SQV."...
Page 59
Using the closed caption decoder Many broadcasters now supply closed captioning information along with their regular broadcasts. Your TV can decode this information and display it on the TV screen. There are two types of captioning that broadcasl;ers can send: standard and text.
Page 60
Using the closed caption decoder (cont.) adjusting the closed caption decoder You can access the closed caption decoder screen using the MENU button. When adjusting the closed caption decoder, you can use the buttons on the remote control. O Press the MENU button on the Setup Timer...
Using parent lock This special feature allows you to lock the entire TV during certain time period or to lock individual channel,s. (You cannot lock the TV and lock individual channels at the same time.) If you enable the lock, the TV prompts for you to enter a 4-digit password when: •...
Page 62
Using parent lock (cont.) locking individual channels Use the ADJUST up & dewn _[) Channels buttons to select "Channels". Time IR[] [][] Press MENU. The screen returns to the main menu.. Press HOMF, to exit the menu. <1 SetPassword Lock By Lock Time Unlock T ime Wt_en you try to view a locked...
Page 63
Selecting the AV memory position Your TV has four AV memories. AV memorie.,; are pre-set picture and sound (except for stereo/SAP) adjustments that are optimized for different types of programs and viewing conditions. You can change these memories as often as you like. You can also change the individual audio/video...
Customizing the AV memory position You can adjust the individual video and audio settings for each of the four preset A/V memory positions to select desired picture sound qualities. This section provides descripl;ions of each video and audio setting, and explains how to adjust Lh_m for the cur- rently...
Page 65
Customizing the AV memory position (cont.) The "Speakers" function allows you to play the 2_v_s sound through the internal speaker or the external speakers. • Choose "Internal" if you want to play the TV's s;ound through the TV's built-in speakers. •...
Customizing the AV memory position (cont.) Adjusting the picture This section contains descriptions for each video setting explains how to adjust them for the A/V memc,ry positions. descriptions of video functions The "Tint" function provides a scale that adjust,_ the proportion red to green in the picture.
Customizing the AV memory position (cont.) • The "Accurate" setting does not make adjustments to the picture. Use this setting when watching professionally produced video tapes and laserdiscs (such as rental movie,_). • The "Average" setting adjusts skin tones based on the other colors on the screen.
CHAPTER FOUR Using the Special Features In addition to the basic and advanced features explained in the previous chapter, this TV offers the user sever_.l special features not generally available on other brand TVs. This chapter explains how to use these distinctive features.
Page 69
Understanding the On-Screen Displays Your TV provides an on-screen summary of 1;he current settings the TV or cable channels, as well as the info::mation related to XDS (Extended Data Services). XI)S allows broadcasters to supply with the current time, channel infi)rmation (such as call letters...
Page 70
Using the Sleep Timer This special feature allows you to set the TV to turn off automati- cally. You can set the TV to turn off after a period ,_f time ranging from 15 minutes to 3 hours, in 15-minute incre_Lents.
Changing or canceling the sleep timer Press the SLEEP button on the remote contro]. An on-screen Sleep 1:30 display indicates the amount time remaining until the TV turns off. O Repeatedly press the SLEEP button to change the remaining time or to cancel the sleep timer.
Using the Picture-in-Picture (PIP) Modes One of the special features of the TV is the picLure-in-pictu:re (PIP) mode. PIP allows you to view two different so_.rces at the same time. In this section you'll learn about: • Activating the PIP image, •...
Activating the PIP image O Select the number of the TV channel you want to view with the channel control. O Press the PIP button. Ant A 023 ESPN O A PIP image _ppears in the corner of the screen. PIP A023 0 Press PIP again within secoads;...
Page 76
Changing channels while using the PIP modes You can use the buttons on the remote control to change channels of both the main image and the small PIP image. To do this: O Press the PIP channel button (PIP CH) on the remote control to chan_e ':he channel...
Exchanging the picture of the image main image Press the EXCHANGE button exchan_e the picture of the main (background) image and the PIP ooo£1 ooou image. OOQ_t ,_._--_.>_° I Ant A 023 Input-1 ESPN PIP A023 PIP Input-1 Moving images Press the ADJUST buttons move the PIP image.
Freezing image 0 Press th,e PAUSE button freeze the PIP image on the screen. 0 Press PAUSE again to :return to a live picture. DImportant: If you press the pause button while viewing a picture without a PIP image, a still PIP image displays. Using the Picture-in-Picture (PIP) Modes...
Additionally, you gain even more benefits ffyou have a Mitsubishi VCR equipped for the Active AV Network. The Active AV Network allows you to perform many of the commonly used features...
Page 80
Using active AV network feature (cont.) using the quick program button (QUICK PROGRAM) [>Important: Before using this feature, set the select switch on the top of Uhe remote control to '_CR-A." When you press QUICK PROGRAM to begin programming :your VCR: •...
FIVE Troubleshooting You are now now familiar with the basic and advanced operations of your Mitsubishi TV. You may run into trouble from time: to time as you use the TV. If you do, this chapter offers solutions to some...
Page 82
Troubleshooting (cont.) For More Information Problems Possible Solutions The remote control doesn't Check that the batteries See "Getting ready to use the remote contr,_l" in work. installed correctly. Chapter i for an explanation of h._w to install batteries the remote contr,_l. See "Remote control buttons Check that...
Page 83
Troubleshooting (cont.) For More Information Problems Possible Solutions • This is part of the normal See "Understanding the On- On-screen displays appear each time you adjust operation of the TV. Screen Displays" in C:hapter function. 4 for a full explanation the on-screen displays.
This distortion, however, does not harm the picture tubes. For maximum enjoyment and safe operation of your Mitsubishi Color TV, please read the "IMPORTANT SAFEGUARDS" section at the beginning of this manual carefully and apply them properly. Cleaning Normally,...
Calling for service If you are unable to correct a problem with you:r TV, consult your Mitsubishi dealer or Mitsubishi Authorized Warranty Service Center. Do not adjust any controls not described in this. owner's guide. Do not remove the protective back cover of this unit.
Procedure for Bypassing the Parental Lock APPENDIX Cut along dotted line and file after reading. After you set the lock, you will need the secret code in order to cancel the lock. If you forget the code, you can view the locked TV without entering the code.
