Extron electronics Universal Interfaces RGB 130xi User Manual page 9

RGB 150xi xi xi xi xi rear panel features
100-240 0.5A MAX.
GAIN/
PEAK
100%
UNITY
50%
50/60 Hz
2
1

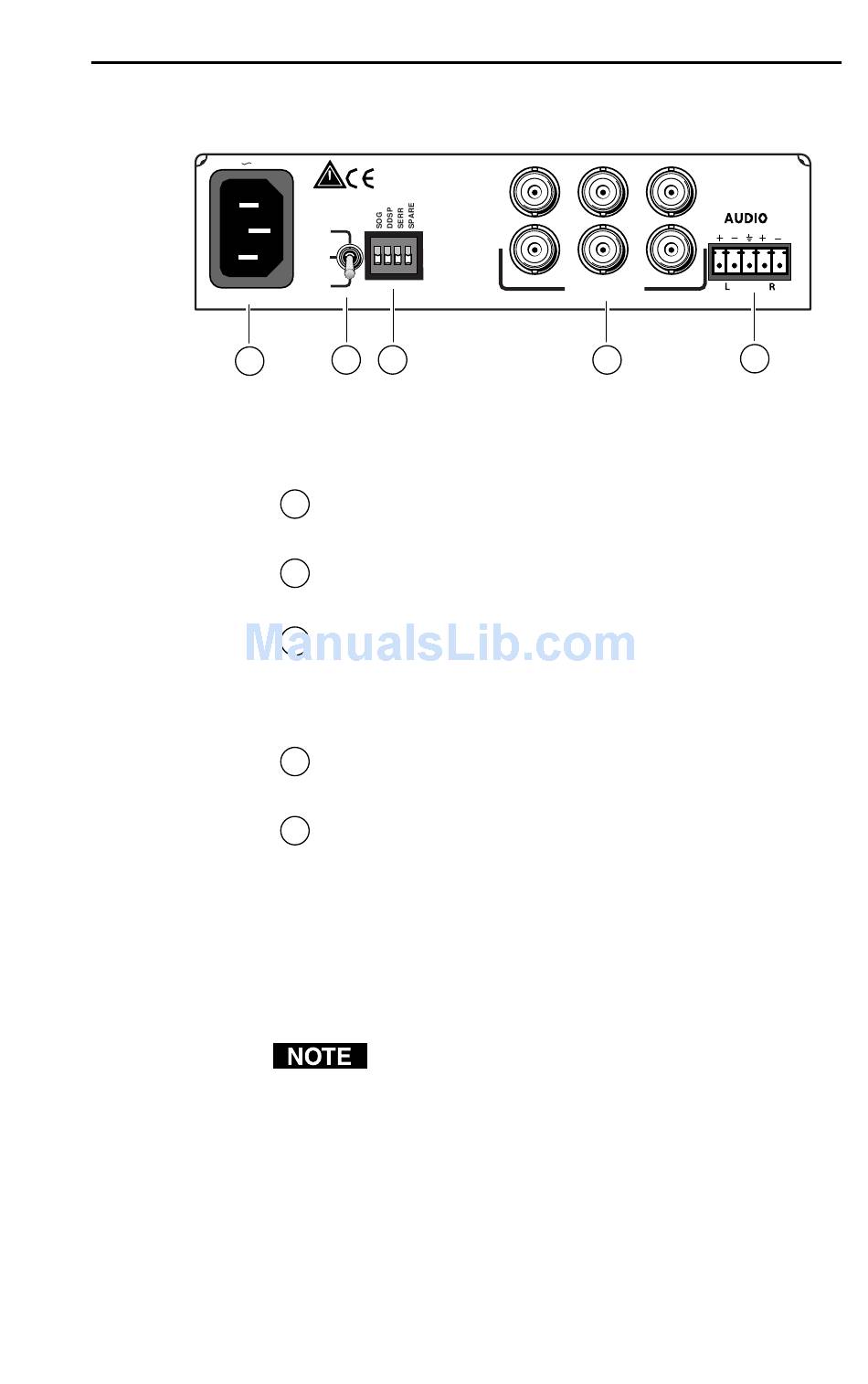

Figure 2-2 — RGB 150 xi xi xi xi xi rear panel
AC power input — standard IEC AC power
1
connector (100 - 240VAC 50/60 Hz)
3-position gain/peak switch — unity*; gain with 50%
2
peaking; and gain with 100% peaking
DIP switches — 4 switches to control sync on green
3
on output, Digital Display Sync Processing, serration
pulse, and a spare (refer to the section "Setting the
DIP switches")
BNC output — 6 BNC connectors to output RGsB,
4
RGBS, and RGBHV
Stereo audio output — 3.5 mm captive screw audio
5
connector
* Unity sets the output level equivalent to the input, with no
added peaking
RGB 130xi xi xi xi xi , 134xi xi xi xi xi , 150xi xi xi xi xi Controls and Installation
3
If the signal cable between the interface and the
display device is shorter than approximately 125
feet, and the level/peak switch is set to a setting
other than Unity, the image may be
overcompensated. If the edges of the image seem to
exceed their boundaries, or if thin lines and sharp
edges look thick and fuzzy, try changing the gain/
peak setting.
R G B
H V S
OUTPUT
4
5
2-2
