Controls and Installation, cont'd
RGB 130xi xi xi xi xi front panel features
1

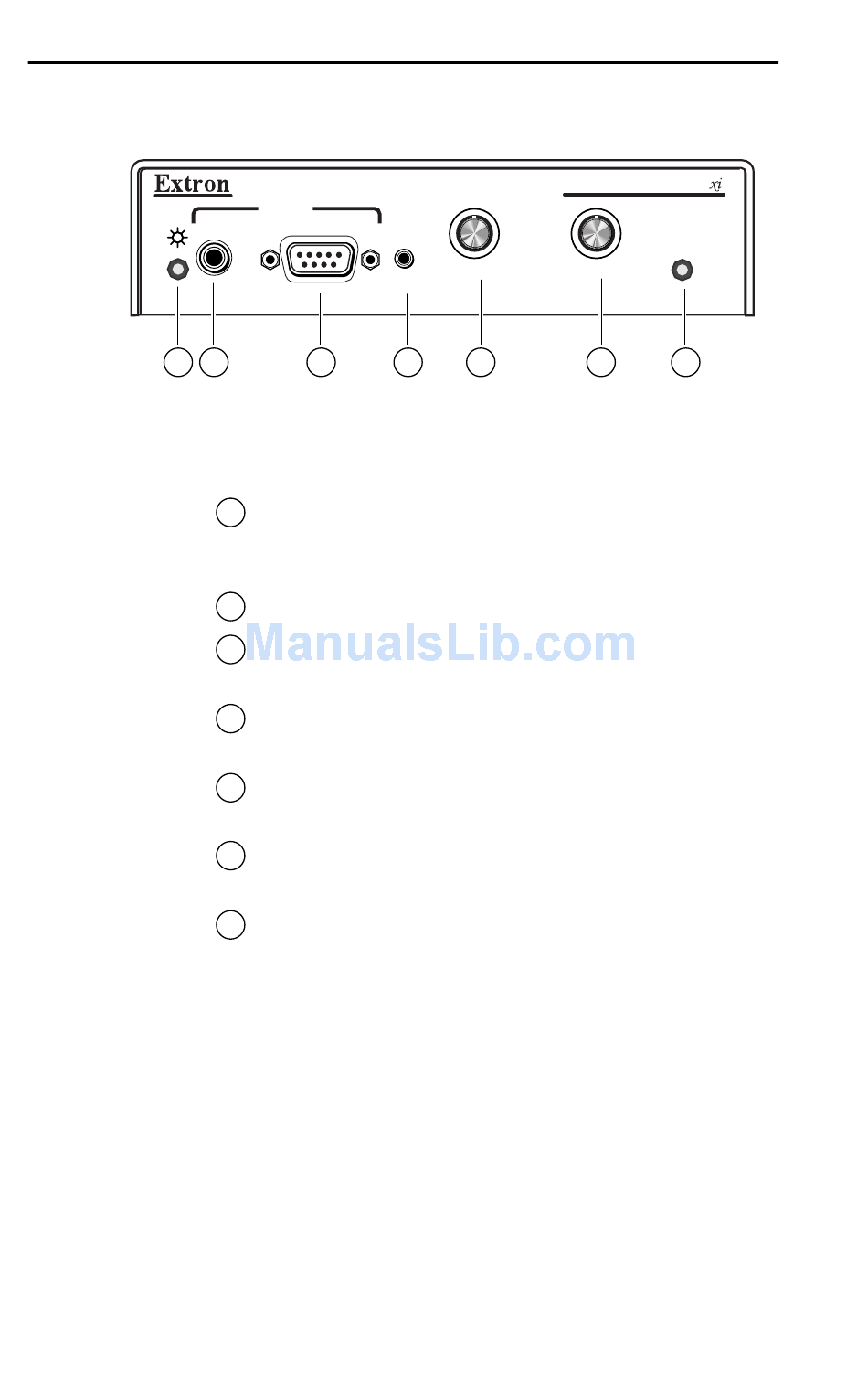

Figure 2-3 — RGB 130 xi xi xi xi xi front panel
2-3 RGB 130xi xi xi xi xi , 134xi xi xi xi xi , 150xi xi xi xi xi Controls and Installation
INPUTS
AUDIO ANALOG/ECL
2 3
2-color power/signal LED — lights amber to indicate
1
power On only; lights green to indicate power On
with video signal present
Audio input jack — 3.5 mm stereo input
2
Analog/ECL input connector — 9-pin D male analog
3
video input connector
MBC power — 2.5 mm jack provides power for
4
MBC buffer
Horizontal shift control knob — adjusts horizontal
5
shifting of the remote output display device
Vertical shift control knob — adjusts vertical
6
shifting of the remote output display device
Min/max LED — lights red whenever the lower and
7
upper limits of the horizontal/vertical shift control
are reached
MBC
H. SHIFT
POWER
4 5
RGB 130
UNIVERSAL INTERFACE W/ADSP
MIN/MAX
V. SHIFT
6 7
