Controls and Installation, cont'd
2-9 RGB 130xi xi xi xi xi , 134xi xi xi xi xi , 150xi xi xi xi xi Controls and Installation
To mount the interface through a desk or table, do the
following:
1. Attach the mounting brackets to the interface using
four machine screws and washers (supplied with the
mounting kit), as indicated in figure 2-9.

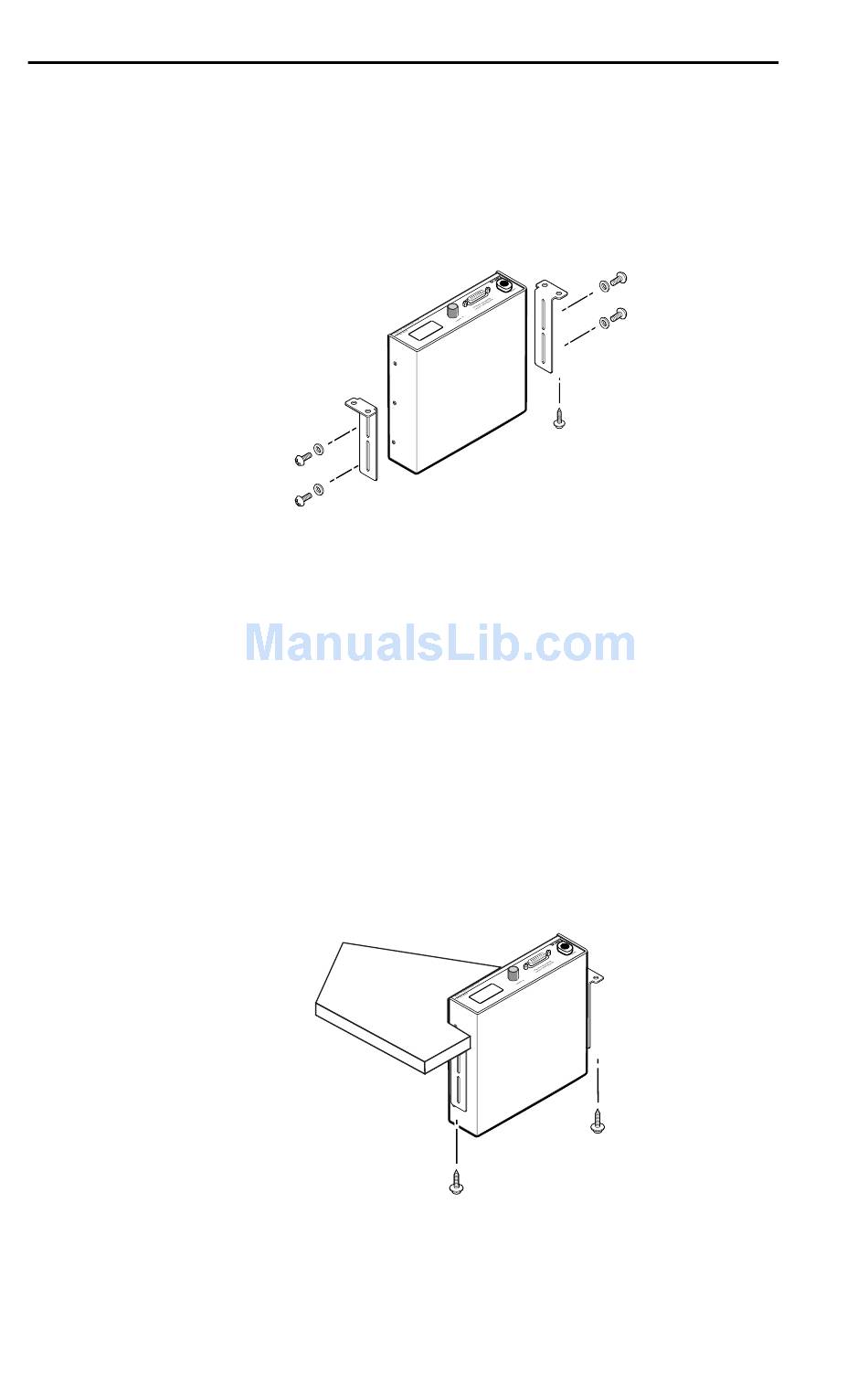

Figure 2-9 — Attaching the through desk
brackets
2. Using the to-scale template at the back of this manual
to guide you, mark the four screw holes on the
underside of the surface to which you are mounting
the interface. Use the through desk mounting
template to cut the hole.
3. Drill four pilot holes, each 3/32" in diameter by 1/4"
deep, where marked.
4. Using the four wood screws provided, attach the
brackets to the mounting surface, as shown in
figure 2-10.
Figure 2-10 — Mounting the interface in a
table
