Controls and Installation

Front and Rear Panels

RGB 150xi xi xi xi xi front panel features
1

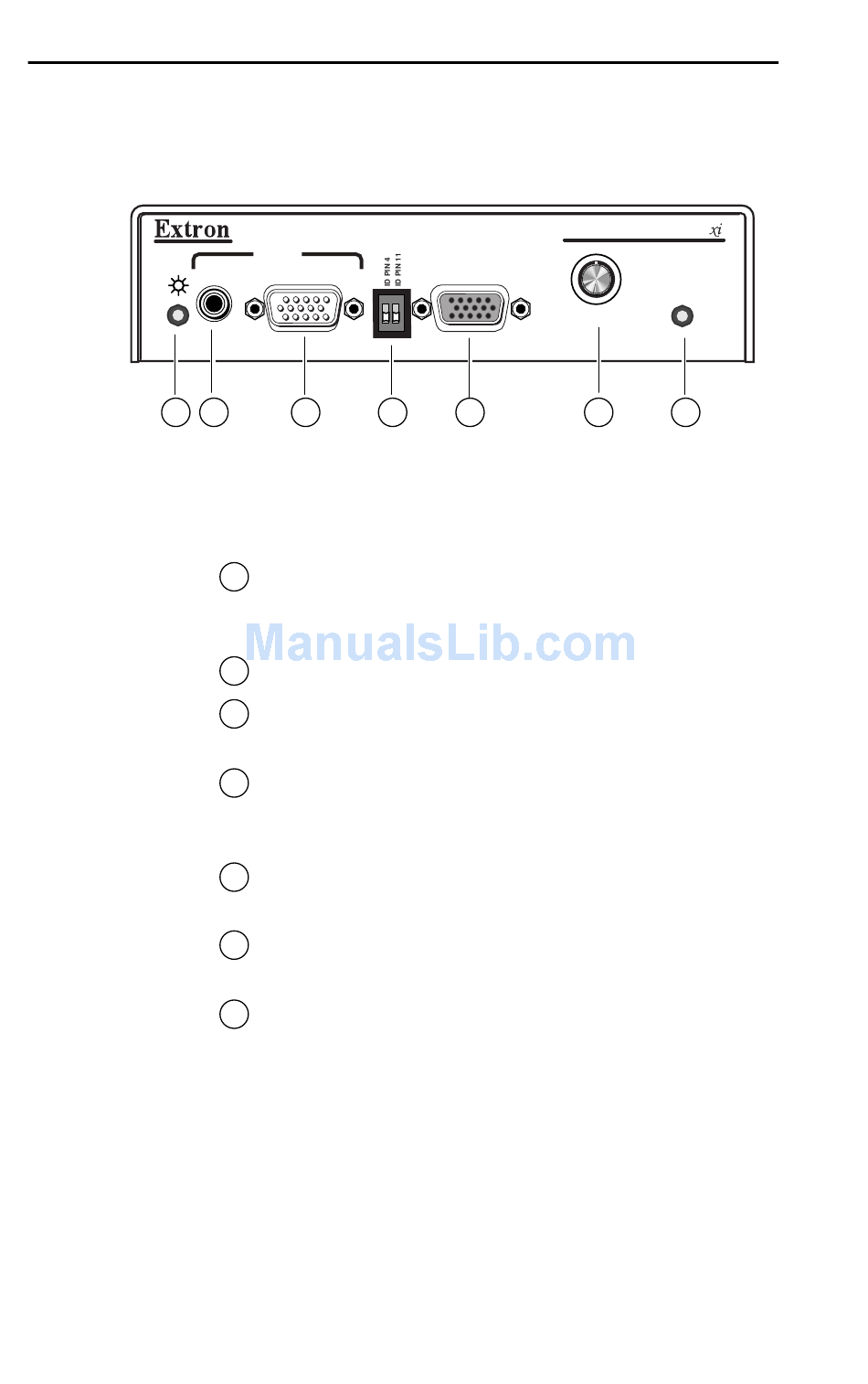

Figure 2-1 — RGB 150 xi xi xi xi xi front panel
2-1 RGB 130xi xi xi xi xi , 134xi xi xi xi xi , 150xi xi xi xi xi Controls and Installation
INPUTS
AUDIO ANALOG
2 3
2-color power/signal LED — lights amber to indicate
1
power On only; lights green to indicate power On
with video signal present
Audio input jack — 3.5 mm stereo input
2
Analog input connector — HD 15-pin male analog
3
video input connector
ID bit termination DIP switches — provides proper
4
ID bit termination for a laptop computer that is not
attached to a local monitor
Buffered local monitor output — HD 15-pin female
5
for output to a local monitor
Horizontal shift control knob — adjusts horizontal
6
shifting of the remote output display device
Min/max LED — lights red whenever the lower and
7
upper limits of the horizontal shift control are
reached
BUFFERED LOCAL
MONITOR OUTPUT
4 5
RGB 150
UNIVERSAL INTERFACE W/ADSP
MIN/MAX
H. SHIFT
6 7
