Installation and Operation, cont'd
approximately 30 feet (9.14 meters) within 40 degrees on either
side of the axis. See the following illustration.
VOLUME PROJECTOR
PROJECTOR PROJECTOR
ON OFF
LIGHTS LIGHTS
IR
ON OFF
INPUT INPUT INPUT
INPUT
1 2 3 4
Extron
40 40
30 feet
maximum
IR 402 Remote
Volume knob and indicator LEDs — Turn this knob to adjust
6
the volume on the input that is currently selected. The five
LEDs indicate the current volume level, as shown in the
following illustration. The top LED is red and the others are
green.
VOLUME
LED Off
LED Blinking
LED On
0% (Min) or Mute
VOLUME
40-59%
AAP mounting spaces (SCP 150 AAP only) — Mount up to four
7
single-space AAPs or control modules (IRCMs, ACMs, RCMs)
here.
2-12 SCP 150 • Installation and Operation
FUNCTION
BUTTON
PC
INPUT
5
SCP 150 L
VOLUME VOLUME
1-19%
20-39%
VOLUME VOLUME
60-89% 90-100% (Max)

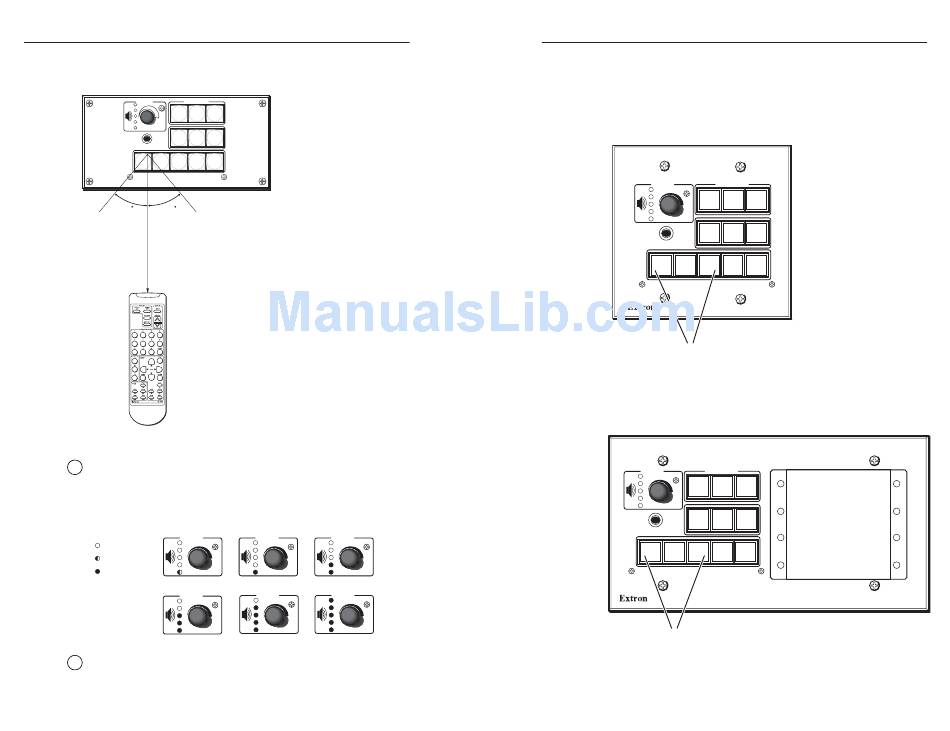

Resetting to Factory Firmware version

To reset the SCP to the firmware version with which it was
delivered from the factory, press and hold the buttons
numbered 1 and 3 on the front panel while applying power to
the unit. See the following three illustrations.
VOLUME PROJECTOR
IR
T
o reset, press these two buttons
simultaneously while applying power
to the SCP 150.
Resetting the SCP 150 to factory defaults
VOLUME PROJECTOR
IR
T
o reset, press these two buttons
simultaneously while applying power
to the SCP 150 AAP.
Resetting the SCP 150 AAP to factory defaults
SCP 150 • Installation and Operation
SCP 150
SCP 150 AAP
2-13
