Extron electronics GLI 2000 2BNC Specification Sheet

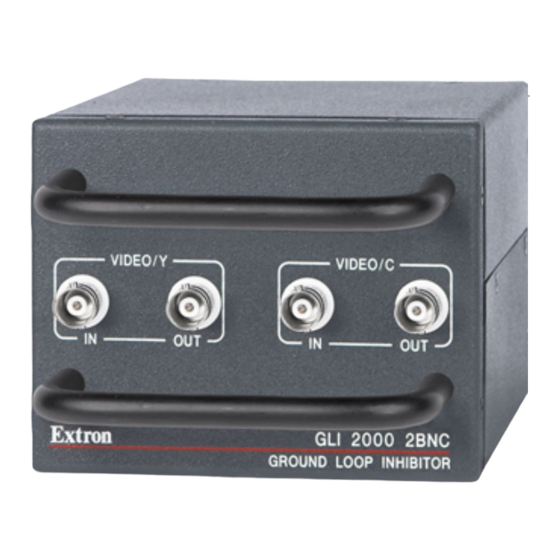

GLI 2000 2BNC
Heavy Duty S-Video and Composite Video Ground Loop Inhibitor
unIque FeaTures
For S-video and composite video signals
•
Inputs: Two female BNC connectors
•
Outputs: Two female BNC connectors
•
100 MHz (-3 dB) video bandwidth
•
GLI 2000 5BNC
Heavy Duty RGBHV Ground Loop Inhibitor
unIque FeaTures
For RGBHV through composite video signals
•
Inputs: Five female BNC connectors
•
Outputs: Five female BNC connectors
•
425 MHz (-3 dB) video bandwidth
•

coMMon FeaTures

Proven and reliable passive technology
•
High core saturation voltage effectively eliminates hum bars and common-mode
•
noise caused by ground loops
Rugged, rack-mountable, metal enclosure with protective guard rails
•
10-2000 kHz horizontal frequency range
•
No external power required
•
Multi-video format compatible
•
descrIPTIon
The Extron GLI 2000 Series of heavy duty Ground Loop Inhibitors offer reliable, simple
solutions for A/V system ground loop problems. The GLI 2000 Series' compact design and
rugged construction make them ideal solutions for staging applications where mobility and
ease of handling are required. Each model comes standard with protective rails which guard
connectors from damage. This flexibility in design allows them to be mounted virtually anywhere
including in a rack or road case, near the projector, or in/under furniture.
The GLI 2000 series is available in two models: a five-BNC version for all signal types from
RGBHV down to composite, and a two-BNC version for S-video and composite video. GLI 2000
Series products are able to handle even the highest frequency signals and various cable lengths
without signal degradation.
ModeL
GLI 2000 2BNC
GLI 2000 5BNC
oPTIonaL accessorIes
RSU 249
RCAF-BNCM/10
SVHSM-BNCF 8" (20 cm)
SYM BNCM/6
686
VersIon descrIPTIon
GLI with 2-BNC Connectors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GLI with 5-BNC Connectors
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ModeL descrIPTIon
2U 9.5" Deep Universal Rack Shelf Kit
RCA Female to BNC Male Adapter - Qty. 10
S-Video Male to 2 BNC Female Adapter
15-pin HD Male to BNC Male Mini High Resolution Cables
