Product Overview

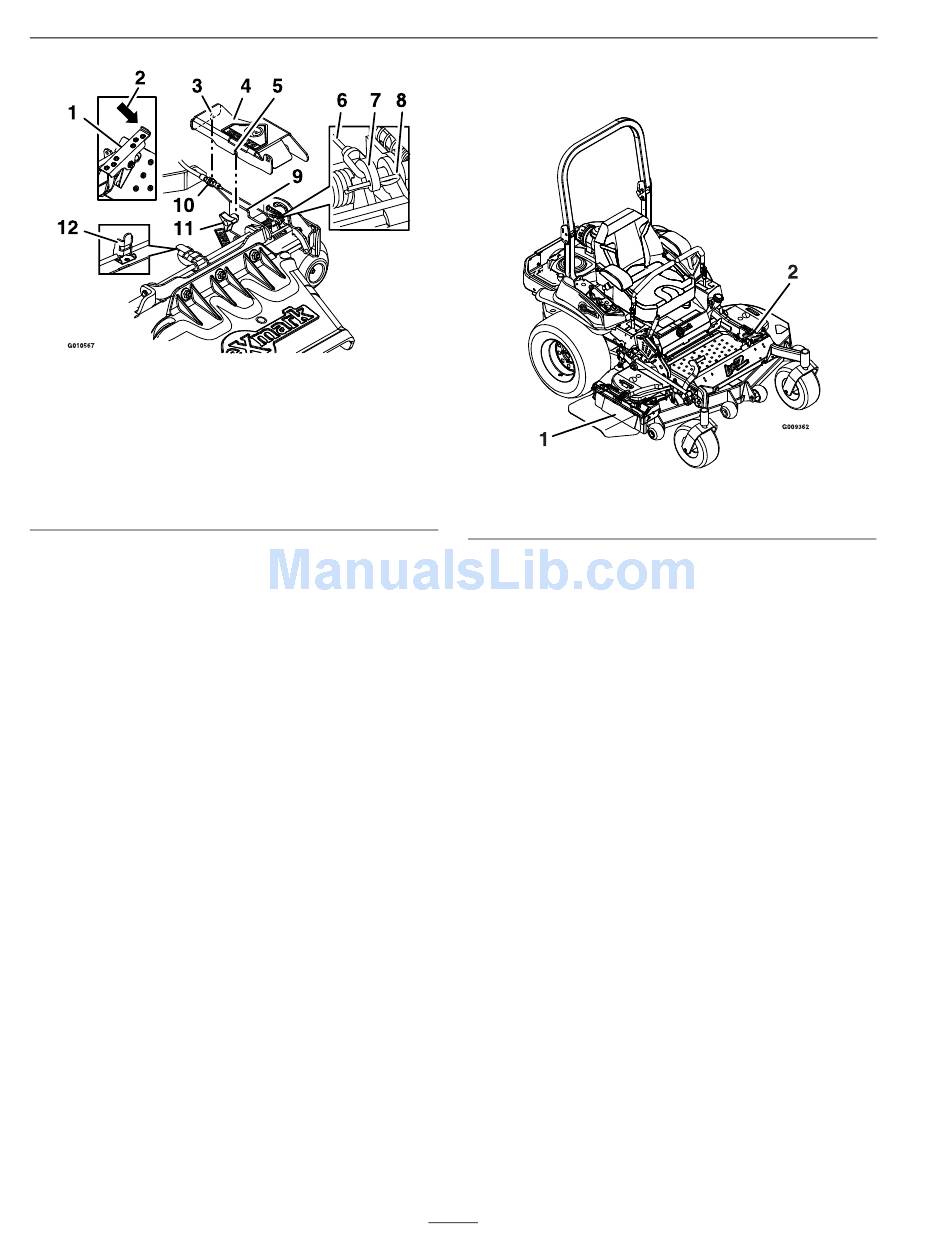

Figure 8
1. Foot pedal
2. Push down
3. Rear cover notch
4. Cover
5. Side cover notch
6. Cable
14. Place the rear cover notch between the two nuts
on the loose end of the cable. Tighten nuts
against the cover.
15. Place the side cover notch between the knob
and the deck mount bracket on the gate linkage
assembly and tighten.
7. Gate lift link
8. Hairpin
9. Deck mount bracket
10. Cable nuts
11. Knob
12. Link pivot bracket in
unlocked position
Product Overview
1. Gate
10
Figure 9
2. Foot pedal
