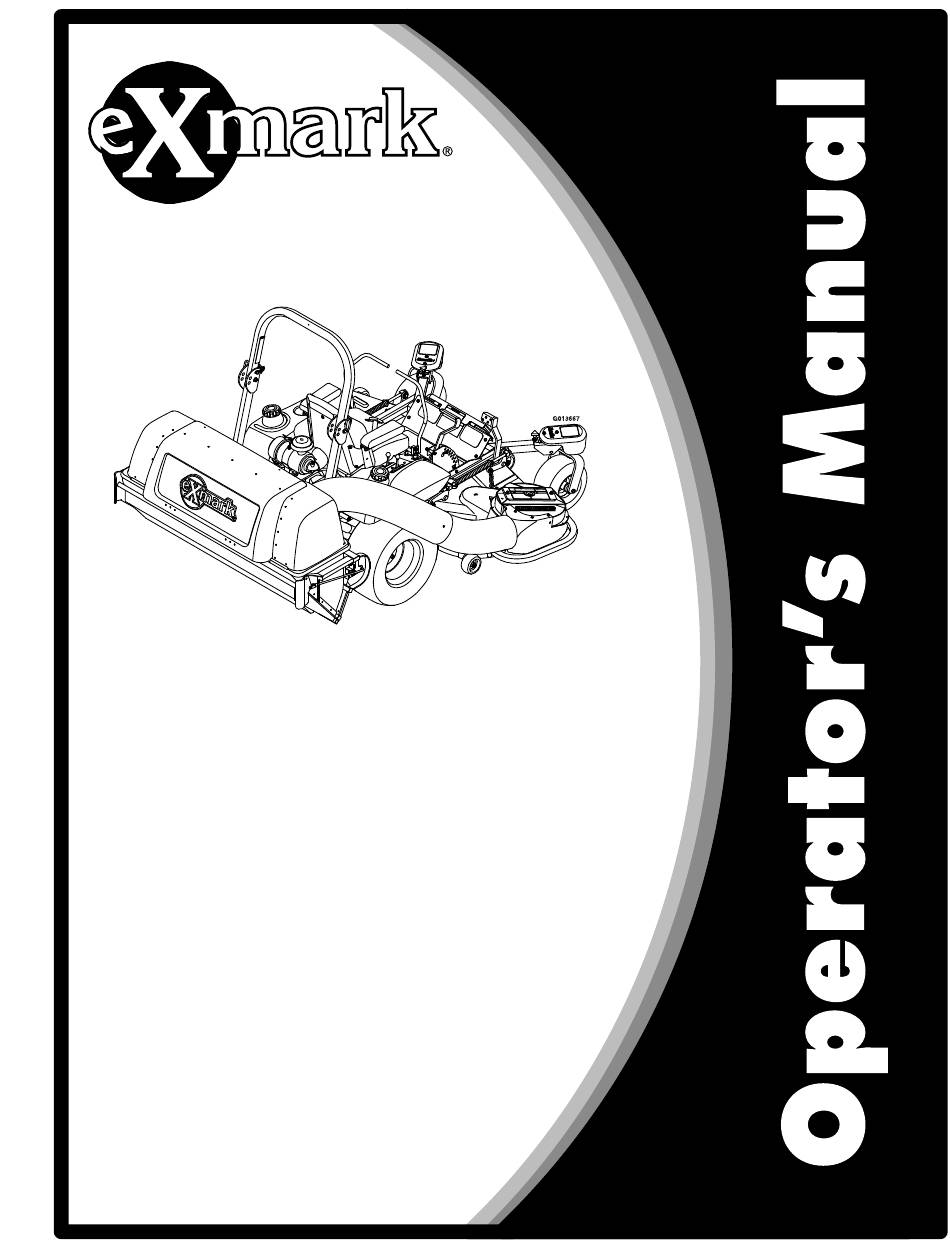

- Page 1 ULTRA VAC QUICK ® DUMP SYSTEM For Ultra Vac Serial Nos. 315,000,000 & Higher (to fit Lazer Z (LZ), Lazer Z AS (LAS), and Lazer Z XP Units 352,000–789,999) (to fit Lazer Z XS Units 352,000 & Higher) (to fit Lazer Z DS Units 312,000,000 &...
- Page 2 Exmark reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously. Exmark, or its distributors and dealers, accept no responsibility for variations which may be...
-
Page 3: Introduction
Introduction CONGRATULATIONS on the purchase of your Exmark Ultra Vac. This product has been carefully designed and manufactured to give you a maximum amount of dependability and years of trouble-free operation. This manual contains operating, maintenance, adjustment, and safety instructions for your Exmark Ultra Vac. -
Page 4: Table Of Contents
Contents Introduction ............3 Safety ..............5 Safety Alert Symbol ......... 5 Safe Operating Practices ........5 Safety and Instructional Decals ....... 8 Specifications ............10 Model Numbers ..........10 Systems ............10 Dimensions............10 Torque Requirements ........11 Product Overview ..........11 Operation ..............12 Pre-Start............12 Operating Instructions ........12 Transporting ..........15 Maintenance ............17... -
Page 5: Safety
WARNING, or CAUTION. perform the job. Only use on machines approved by Exmark. DANGER: Indicates an imminently hazardous situation which, if not avoided, Will result in death or • Wear appropriate clothing including safety glasses, serious injury. - Page 6 Safety occur. The operator is responsible for safe operation DANGER on slopes. There are rotating blades in the blower and under the mower deck. Blade contact can DANGER cause serious operator or bystander injury or Operating on wet grass or steep slopes can cause even death.
- Page 7 Unauthorized modifications to the original equipment or failure to use original Exmark • Be aware that operating on wet grass, across steep parts could lead to serious injury or death.
-
Page 8: Safety And Instructional Decals
Exmark equipment dealer or labels. distributor or from Exmark Mfg. Co. Inc. • Replace all worn, damaged, or missing safety • Safety signs may be affixed by peeling off the signs. - Page 9 Safety 126-4853 1. Impeller/Rotating Blades hazard-Keep hands away from moving parts. Keep all safety devices in place and working. Do Not reach into blower unless rotation indicator has stopped. 126-4662 1. Warning-Read the Operator’s manual for correct quantity of counterbalance weight(s). 2.
-
Page 10: Specifications
Specifications Specifications Model Numbers Serial Nos: 315,000,000 and Higher UVD60–Fits Lazer Z (LZ), Lazer Z AS (LAS), Lazer Z XP Units 352,000–789,999, Lazer Z XS Units 352,000 and Higher, and Lazer Z DS Units 312,000,000 and Higher with 60 inch deck. UVD6672–Fits Lazer Z (LZ), Lazer Z AS (LAS), Lazer Z XP Units 352,000–789,999, Lazer Z XS Units 352,000 and Higher with 66 inch or 72 inch deck;... -
Page 11: Torque Requirements
Product Overview Curb Weight: Product Overview w/Ultra Vac QDS 60 inch Deck-SN 599,999 394 lb (178 kg) and Lower & All Lazer AS 789,999 and Lower 60 inch Deck-SN 313 lb (142 kg) 600,000–789,999 Air-Cooled (except AS) 60 inch Deck-SN 600,000 333 lb (151 kg) and Higher Liquid-Cooled 66 inch Deck-SN 789,999... -
Page 12: Operation
Operation Operation 3. To empty the hopper, first shut off deck drive. Lift up on the handle to open the door and empty the hopper. If the unit is to be driven onto a truck Note: Determine the left and right sides of the or trailer with the hopper full, always back the machine from the normal operating position. - Page 13 Operation Figure 6 Viewed from the right side 1. Hairpin 3. Discharge Chute 2. Chute Pivot Pin Note: Install chute with the tabs to the rear of the deck tabs as shown. Figure 5 1. Clevis Pin 5. Belt Cover WARNING 2.
- Page 14 Operation To remove the weight on the front of the floor position of the front pin to engage the slot in the pan, remove the 2 hairpins that retain it and then front of the deck. Use the latch to lock the blower lift it from the mount plates.
-
Page 15: Transporting
Operation Transporting Transporting a Unit Use a heavy-duty trailer or truck to transport the machine. Lock brake and block wheels. Securely fasten the machine to the trailer or truck with straps, chains, cable, or ropes. If possible, both front and rear straps should be directed down and outward from the machine. - Page 16 Operation loading units on trailers or trucks. One full width ramp that is wide enough to extend beyond the rear tires is recommended instead of individual ramps for each side of the unit. The lower rear section of the tractor frame extends back between the rear wheels and serves as a stop for tipping backward.
-
Page 17: Maintenance
Maintenance Maintenance Note: Determine the left and right sides of the machine from the normal operating position. WARNING WARNING While maintenance or adjustments are being The engine can become very hot. Touching a hot made, someone could start the engine. engine can cause severe burns. -
Page 18: Lubricate Grease Fittings
Maintenance Lubricate Grease Fittings Check Condition of Belt Note: See chart for service intervals. Service Interval: Every 50 hours 1. Stop engine, wait for all moving parts to stop, and 1. Stop engine, wait for all moving parts to stop, and remove key. -
Page 19: Adjustments
Maintenance Adjustments Note: The Ultra Vac QDS was adjusted at the factory to operate properly. However, there are three basic adjustments that can be made, should your unit require them: Figure 9 1. Handle Link 3. Stop 5. Latches 4. Hinge Links 2. -
Page 20: Cleaning
Maintenance Cleaning Clean Muffler and Rear Frame Area Service Interval: Before each use or daily Stop engine, wait for all moving parts to stop, and remove key. Engage parking brake. WARNING Operating engine parts, especially the muffler, become extremely hot. Severe burns can occur on contact and debris, such as leaves, grass, brush, etc. -
Page 21: Troubleshooting
Troubleshooting Troubleshooting Important: It is essential that all operator safety mechanisms be connected and in proper operating condition prior to mower use. When a problem occurs, Do Not overlook the simple causes. For example: starting problems could be caused by an empty fuel tank. The following table lists some of the common causes of trouble. - Page 22 Troubleshooting Problem Possible Cause Corrective Action Chasing leaves. 1. Blowout from deck. 1. Units below Serial Number 600,000: Install an anti-blowout kit–contact an Authorized Service Dealer. Triton and Series 5: Lower the front adjustable baffle. Match discharge opening to Ultra Vac intake. Blower components show signs of wear 1.
- Page 23 No Claim of breach of warranty shall be cause for cancellation recommended in the operator's manual or other operational or rescission of the contract of sale of any Exmark attachment instructions provided by Exmark. or accessory.
- Page 24 Notes:...
- Page 25 Notes:...
- Page 26 Service Record Date: Description of Work Done: Service Done By:...
- Page 27 G011841 Figure 10 This page may be copied for personal use. 1. The maximum slope you can safely operate the machine on is 15 degrees. Use the slope indicator to determine the degree of slope of hills before operating. Do Not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line to match the recommended slope.
- Page 28 Place Model No. and Serial No. Date Purchased Label Here (Included in the Literature Pack) or Fill in Below Model No. Serial No. ©2014 Exmark Mfg. Co., Inc. Part No. 4502-217 Rev. A Industrial Park Box 808 (402) 223-6300 Beatrice, NE 68310 Fax (402) 223-5489...
