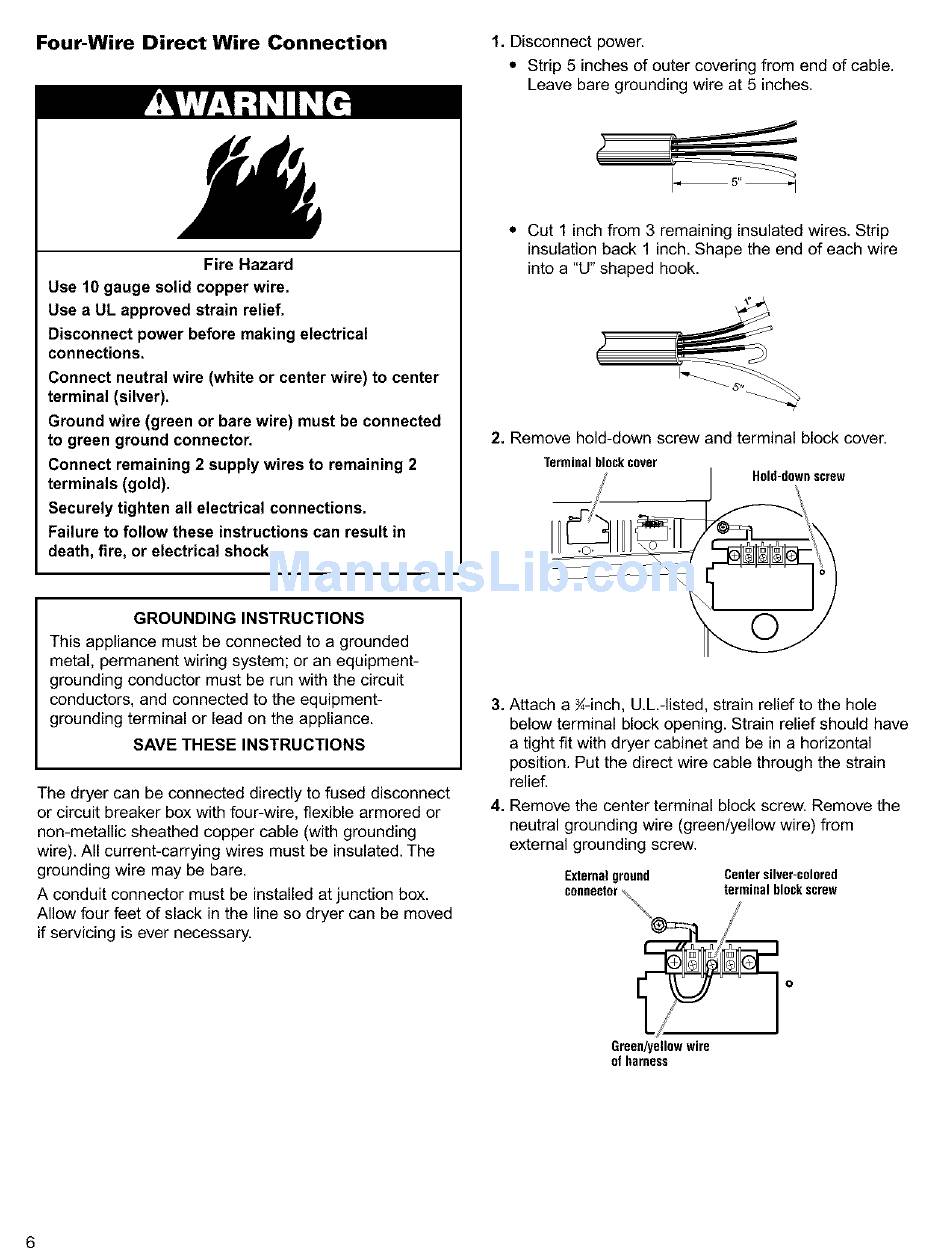

Four-Wire
Direct
Wire
Connection
1. Disconnect power.
* Strip 5 inches of outer covering from end of cable.
Leave bare grounding wire at 5 inches.
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL approved strain relief.
Disconnect power before making electrical
connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected
to green ground connector.
Connect remaining 2 supply wires to remaining 2
terminals (gold).
Securely tighten all electrical connections.
Failure to follow these instructions can result in
death, fire, or electrical shock.
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded
metal, permanent wiring system; or an equipment-
grounding conductor must be run with the circuit
conductors, and connected to the equipment-
grounding terminal or lead on the appliance.
SAVE THESE INSTRUCTIONS
The dryer can be connected directly to fused disconnect
or circuit breaker box with four-wire, flexible armored or
non-metallic sheathed copper cable (with grounding
wire). All current-carrying wires must be insulated. The
grounding wire may be bare.
A conduit connector must be installed at junction box.
Allow four feet of slack in the line so dryer can be moved
if servicing is ever necessary.
* Cut 1 inch from 3 remaining insulated wires. Strip
insulation back 1 inch. Shape the end of each wire
into a "U" shaped hook.
2. Remove hold-down screw and terminal block cover.
Terminal block c over
Hold-down s crew
3. Attach a ¾-inch, U.L.-listed, strain relief to the hole
below terminal block opening. Strain relief should have
a tight fit with dryer cabinet and be in a horizontal
position. Put the direct wire cable through the strain
relief.
4. Remove the center terminal block screw. Remove the
neutral grounding wire (green/yellow wire) from
external grounding screw.
Externalground
Center silver-colored
connector\
terminal block screw
Green/yellowwire
of harness
6
