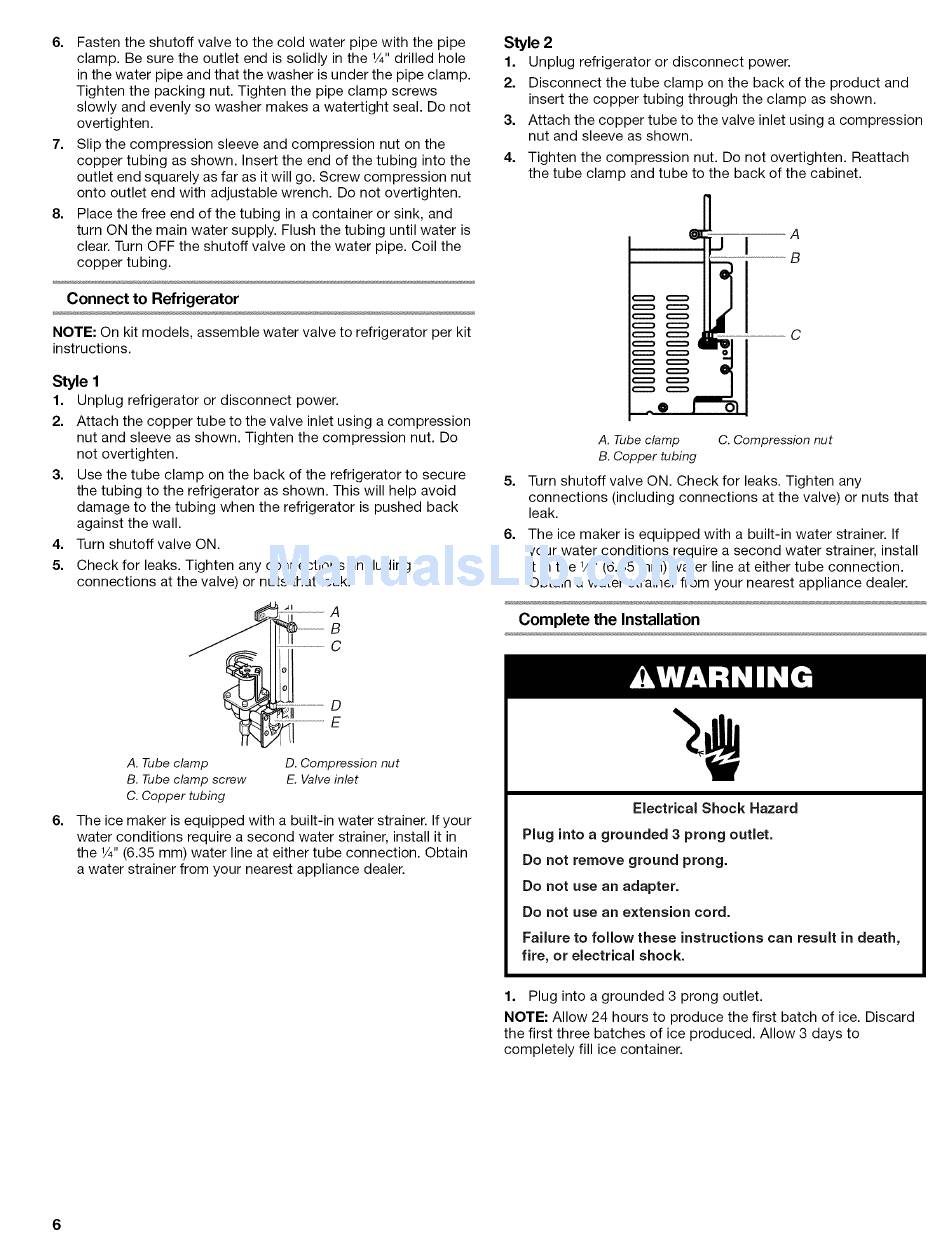

6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"drilled hole
in the water pipe and that the washer is under the pipe clamp.
Tighten the packing nut. Tighten the pipe clamp screws
slowly and evenly so washer makes a watertight seal. Do not
overtighten.
7. Slip the compression
sleeve and compression
nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression
nut
onto outlet end with adjustable wrench. Do not overtighten.
8. Place the free end of the tubing in a container or sink, and
turn ON the main water supply. Flush the tubing until water is
clear. Turn OFF the shutoff valve on the water pipe. Coil the
copper tubing.
Connect to Refrigerator
NOTE: On kit models, assemble water valve to refrigerator per kit
instructions.
Style 1
1. Unplug refrigerator or disconnect
power.
2. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown. Tighten the compression
nut. Do
not overtighten.
3. Use the tube clamp on the back of the refrigerator to secure
the tubing to the refrigerator as shown. This will help avoid
damage to the tubing when the refrigerator is pushed back
against the wall.
4. Turn shutoff valve ON.
5. Check for leaks. Tighten any connections (including
connections
at the valve) or nuts that leak.
A
B
C
Style 2
1. Unplug refrigerator or disconnect
power.
2. Disconnect
the tube clamp on the back of the product and
insert the copper tubing through the clamp as shown.
3. Attach the copper tube to the valve inlet using a compression
nut and sleeve as shown.
4. Tighten the compression
nut. Do not overtighten.
Reattach
the tube clamp and tube to the back of the cabinet.
oD
I
__0
A
B
C
A. Tube clamp
C. Compression
nut
B. Copper tubing
5. Turn shutoff valve ON. Check for leaks. Tighten any
connections
(including connections at the valve) or nuts that
leak.
6. The ice maker is equipped with a built-in water strainer. If
your water conditions require a second water strainer, install
it in the 1/4"(6.35 mm) water line at either tube connection.
Obtain a water strainer from your nearest appliance dealer.
Complete the Installation
6.
A. Tube clamp
B. Tube clamp screw
C. Copper tubing
D. Compression
nut
E. Valve inlet
The ice maker is equipped with a built-in water strainer. If your
water conditions require a second water strainer, install it in
the 1/4"(6.35 mm) water line at either tube connection. Obtain
a water strainer from your nearest appliance dealer.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension
cord.
Failure to follow these instructions can result in death,
fire, or electrical
shock.
1. Plug into a grounded 3 prong outlet.
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill ice container.
6
