Page 1: Media Converter

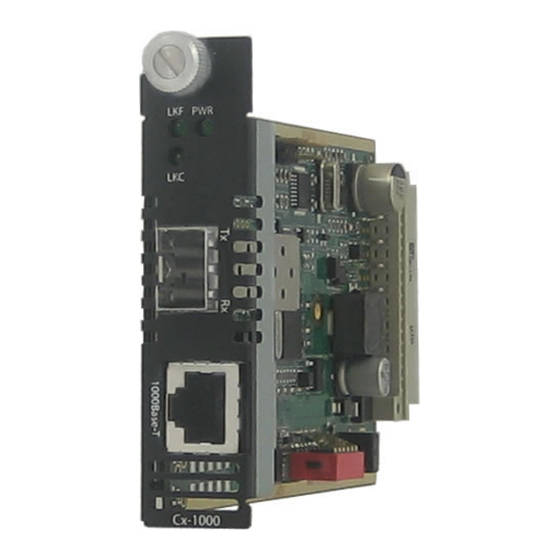

Perle 10/100/1000 Ethernet Media Converter Module Installation Guide C-1110-XXXXX Unmanaged Module CM-1110-XXXXX Managed Module C-1110-SFP Unmanaged Module CM-1110-SFP Managed Module P/N 5500308-20... - Page 2 Overview This document contains instructions necessary for the installation and operation of the Perle 10/100/1000 Media Converter Module(s) (C-1110 and CM-1110) to be used in conjunction with a Perle MCR chassis. The C-1110’s are unmanaged media converter modules, and the CM-1110’s are the managed versions.
- Page 3 CM-1110-S2xx160 C-1110-SFP Note 1 CM-1110-SFP Note 1: Fiber characteristics will vary by SFP Fiber module. Refer the Perle web site for the most up to date Installation guides, http://www.perle.com/ models and specifications. Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 4: Installation
(all switches UP) and default jumper settings will work for most installations. For information on the management options of the CM-1110 module, refer to the MCR-MGT Module User’s Guide. The following steps are used to configure the Perle 10/100/1000 Ethernet Media Converter Module: 1. Insert SFP Module. (SFP Models only) 2. -
Page 5: Dip Switches
DIP Switches and use those as its running configuration. It will ignore any configuration information in its flash memory. Note: The default jumper setting is Auto Dip Switches Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 6 With Media Converters on both ends of the fiber link and both setup for Link Pass-Through, a loss of copper link on the far end device will propagate through both Converters and will result in a Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 7 Note: This feature only takes effect if Fiber Negotiation has been turned off. Disabled: The Media Converter Module will not monitor for or generate Fiber Fault Alert. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 8 Converter will use this Duplex setting for its copper connection. Up: The Media Converter Module will be set to Full Duplex mode. Down: The Media Converter Module will be set to Half Duplex mode. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 9 This will ensure that the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise 1000Mbps, Full and Half Duplex, no Pause.
-
Page 10: Installing Or Replacing Media Converter Modules
Media Converter Module(s) and /or chassis. The Perle Media Converter Modules can be installed in any available slot and in any order within the chassis. 1. Remove the Media Converter Module from its packaging. -
Page 11: Removing Media Converter Modules
1. Locate a 1000Base-X compliant duplex (2 strands) fiber cable with appropriate connectors. 2. Connect the fiber cables from the Media Converter to the other Media Converter/switch/fiber device ensuring that the RX and TX are reversed (crossed) at the opposite end. Perle 10/100/1000 Media Converter Module – Installation Guide... -
Page 12: Installing The Copper Cable
Installing the Copper Cable 1. Locate 10/100/1000Base-T compliant copper cables with male, RJ-45 connectors installed at both ends. 2. Connect the RJ-45 cable between the Perle Media Converter Module and the device. Note: The Perle Media Converter Module supports Auto-MDIX which allows a straight-through or cross-over Ethernet cable. -
Page 13: Operation
Blinking (slow) – Fiber link down but fiber link appears functional. but copper link appears functional. Blinking (fast) – Fiber link is up Blinking (fast) – Copper link is up and receiving data. and receiving data Perle 10/100/1000 Media Converter Module – Installation Guide... -
Page 14: Other Features
Integrated Pause signalling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Perle Media Converter Module can generate and respond to Pause messages. Perle 10/100/1000 Media Converter Module – Installation Guide... -
Page 15: Troubleshooting
Media Converter. At the remote Media Converter, the data will be looped back and passed through the fiber, back to the local Media Converter Module and passed to the copper link. Perle 10/100/1000 Media Converter Module – Installation Guide... -
Page 16: Technical Specifications
CM-1110-S1SC10D RX:1310 Max: -3 Max: -3 Min: -3 Min: -23 C-1110-S2SC40 TX: 1310 RX:1310 CM-1110-S2SC40 Max: 5 Max: -3 Min: -3 Min: -23 C-1110-S2ST40 TX: 1310 CM-1110-S2ST40 RX:1310 Max: 5 Max: -3 Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 17 Note 1 CM-1110-SFP Note 1: Fiber characteristics will vary by SFP Fiber module. Fiber Cabling Requirements 50/125 microns or 62.5/125 microns 9/125 microns Ethernet Copper Cabling Requirements Category 5 UTP or STP Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 18: Compliance Information
Failure to observe this warning could result in an eye injury or blindness. WARNING: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Perle 10/100/1000 Media Converter Module – Installation Guide... -
Page 19: Warranty Registration
Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
