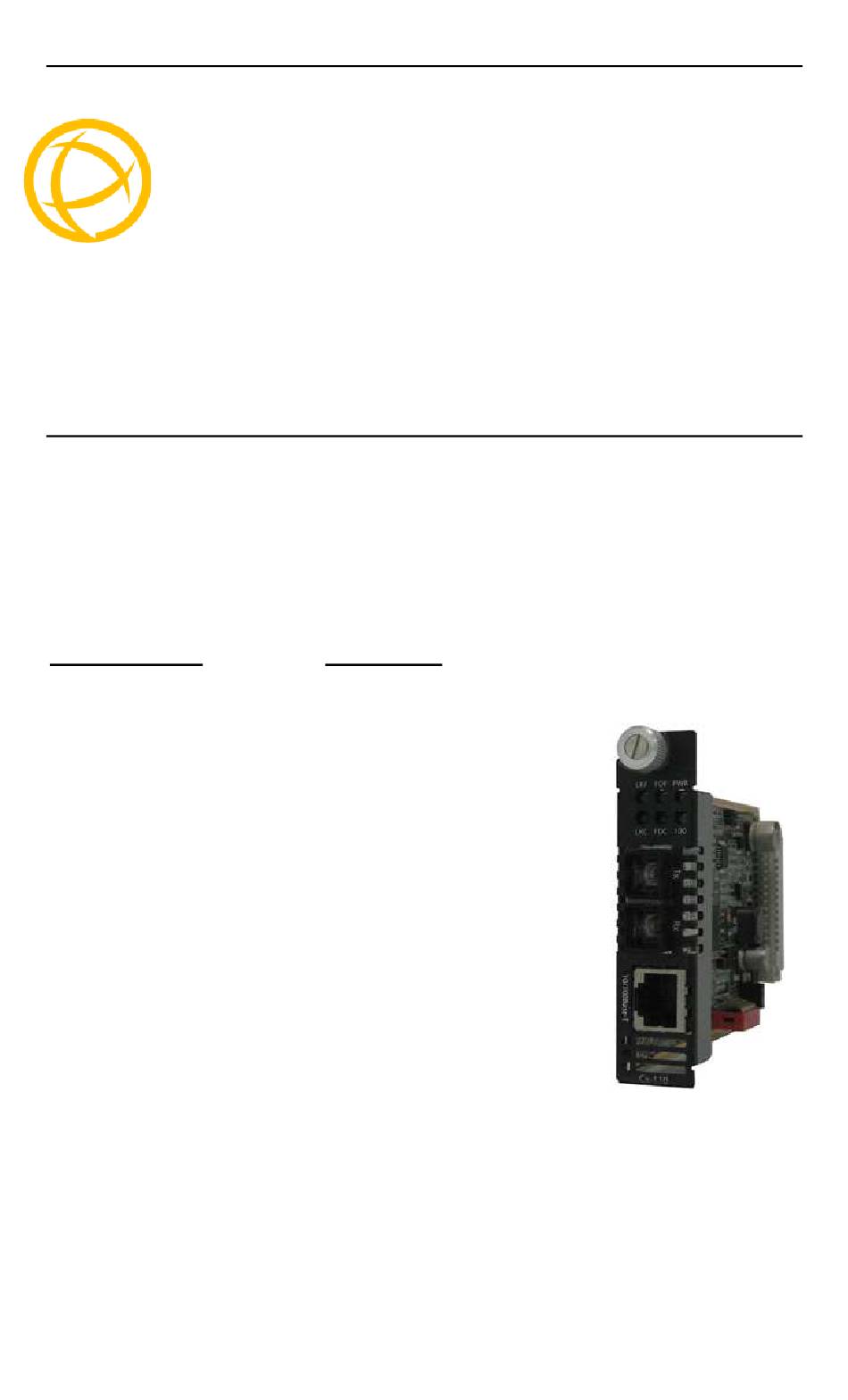

Page 2
1310/1550 nm CM-110-S1SC40U C-110-S1SC40D SM - 40 km/24.9 mi. 1550/1310 nm CM-110-S1SC40D Note 2: Please refer the Perle web site for the most up to date Installation guides, models and specifications: http://www.perle.com/ Perle 10/100 Media Converter Module – Installation Guide...
The default dip switch settings (all switches in the UP position) and default jumper settings will work for most installations. The following steps are used to configure the Perle 10/100 Ethernet Media Converter Module: 1. Set the Auto-MDIX jumper (optional).
Page 4
SW: When set to SW (Switch), the module will, at power-up, read the settings of the DIP Switches and use those as its running configuration. It will ignore any configuration information in its flash memory. NOTE: The default jumper setting is Auto Perle 10/100 Media Converter Module – Installation Guide...
Half Duplex mode as per IEEE specifications. Off: When the Auto Negotiation switch is set to the OFF position, the Media Converter Module will not negotiate the Ethernet parameters with the copper link partner. The parameters used by Perle 10/100 Media Converter Module – Installation Guide...
Page 6
Enabled: If the Media Converter Module detects a loss of receive fiber signal, it will transmit a FEF signal to the remote Media Converter. This, in effect, notifies the fiber link partner that an error condition exists on the fiber connection. Perle 10/100 Media Converter Module – Installation Guide...
Page 7
3 – (B) Detects FEF signal and shuts down the fiber link. 4 – (B) Drops link on copper connection because Link Pass- Through is configured. 5 – (A) Link on copper connection is not affected because Link Mode is set to Standard. Perle 10/100 Media Converter Module – Installation Guide...
Page 8
Converter Module will use this Speed setting for its Ethernet copper connection. Up: The Media Converter will be fixed at 100 Mbps. Down: The Media Converter will be fixed at 10 Mbps. Perle 10/100 Media Converter Module – Installation Guide...
Page 9
(RX) fiber connection is looped back to the transmit (TX) fiber connection. The state of the copper link is not relevant since no data is passed through to the copper side. This mode will override all other switch settings. Perle 10/100 Media Converter Module – Installation Guide...
Chassis. Failure to observe this caution could result in damage to the Media Converter Module(s) and /or chassis. The Perle Media Converter Modules can be installed in any available slot and in any order within the Chassis. Installing or Replacing a Media Converter Module 1.
Page 11
Locate a 100Base-X compliant duplex (2 strands) fiber cable with appropriate connectors. Connect the fiber cables from the Media Converter Module to the other Media Converter/switch/fiber device ensuring that the RX and TX are reversed (crossed) at the opposite end. Perle 10/100 Media Converter Module – Installation Guide...
Page 12
Locate 10/100Base-T compliant copper cables with male, RJ-45 connectors installed at both ends. • Connect the RJ-45 cable between the Perle Media Converter Module and the device. Note: The Perle Media Converter Module supports Auto-MDIX which allows a straight-through or cross-over Ethernet cable. See page 4 in this guide for jumper positions.
Operation Status LED The Perle 10/100 Ethernet Media Converter Modules have six single color status LEDs located on the face plate of the module. 100 (copper speed) On – Power is on; module is On – 100 Mbps operating normally Off –...
Page 14
Integrated Pause signalling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Perle Media Converter Module can generate and respond to Pause messages. Perle 10/100 Media Converter Module – Installation Guide...
Repeat for the far end Media Converter. 4. Connect the fiber cable to both Converters. The LKF LED indicates good fiber connection. If no LKF LED then check the fiber cabling. 5. Return converters to desired configuration. Perle 10/100 Media Converter Module – Installation Guide...
Page 16
Note: If troubleshooting a CM-110, setting the Auto-Config jumper (J6) to SW will ensure the DIP switches are being read. Perle 10/100 Media Converter Module – Installation Guide...
Page 18
• Category 5 UTP or STP • 24-22 AWG • Straight through or Ethernet crossover Note: Please refer the product page on the Perle website for the most up to date list of models and specifications. http://www.perle.com/ Perle 10/100 Media Converter Module – Installation Guide...
Failure to observe this warning could result in an eye injury or blindness. WARNING: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Perle 10/100 Media Converter Module – Installation Guide...
Page 20
Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
