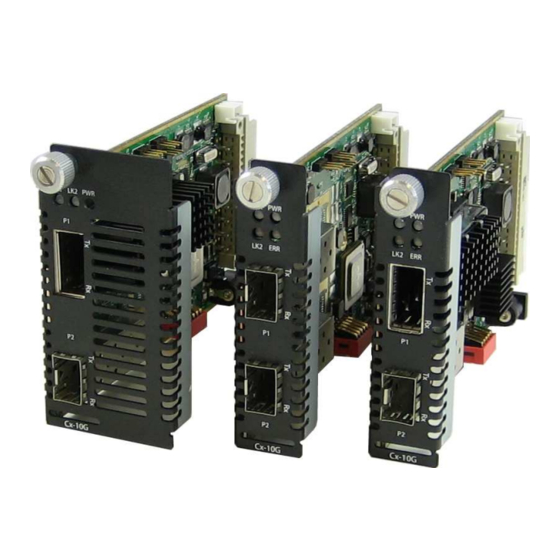

Perle 10G Media Converter Modules Installation Guide CM-10G-STS C-10G-STS CM-10G-XTS C-10G-XTS CM-10G-XTX C-10G-XTX CM-10G-XTSH C-10G-XTSH CM-10G-XTXH C-10G-XTXH P/N 5500326-10... - Page 2 Overview This document contains instructions necessary for the installation and operation of the Perle 10G Media Converter modules that are used in conjunction with a Perle Media Converter chassis. Each module contains two pluggable transceiver ports that permit connections of SFP+ fiber, XFP fiber and copper modules. The C model modules are the unmanaged modules and the CM models are the managed modules.
-
Page 3: Installation
The default switch settings (all switches in the UP position) will work for most installations. The default Auto-Jumper is set to Auto. These are the steps required to configure the Perle 10G Media Converter module: 1. Set the Auto-Jumper switch. (optional) 2. - Page 4 4. Insert appropriate modules into the pluggable transceiver ports. 5. Connect fiber or copper cables to the installed modules. 6. The Media Converter module is automatically powered up. Cx-10G-STS Cx-10G-XTS, Cx-10G-XTSH Perle 10G Media Converter module Installation Guide...
-
Page 5: Installing Modules
Tighten the Captive retainer screw to ensure the module is locked in place. Caution : Observe electrostatic discharge precautions when installing or removing the module(s) from the Chassis. Failure to observe this caution could result in damage to the module(s) and/or chassis Perle 10G Media Converter module Installation Guide... -
Page 6: Dip Switch Settings
DIP switches vary by model, so please refer to the appropriate model. Note: Switch changes made when the product is powered up take effect immediately and will result in a link reset on both ports. Perle 10G Media Converter module Installation Guide... - Page 7 Standard Mode: In this mode, the links can be brought up and down independently of each other. A loss of link on either fiber connection can occur without affecting the other fiber connection Perle 10G Media Converter module Installation Guide...
- Page 8 Built In Link Test. Switch 3 determines which port with be put into loopback mode. If the remote device is a supported Perle media converter/module, this unit does not need to be put into test mode and there is no need to set the loopback switch.
- Page 9 Remote-Cx-10G Configuration All switches in the Up position Note: If the remote Media Converter module is not a supported Perle media converter/ module then the remote Media Converter /module will need to be put into loopback mode. See the documentation that came with that Media Converter module.
-
Page 10: Sequence Of Events
2. Media Converter notifies the remote Media Converter that there is a fault on the Link. 3. Media Converter detects loss of fiber link on receiver RX. 4. Media Converter turns off transmitter (TX). Perle 10G Media Converter module Installation Guide... - Page 11 EPROM on the module and module type. Off: When AutoDetect Mode is turned OFF, the Cx-10G media converter module will select the alternative setting from that established by the determination above. Perle 10G Media Converter module Installation Guide...
-
Page 12: Operation
Operation Status LED The Perle 10G Media converters modules have three status LEDs located on the front panel of the module. PWR - Power/Test Green On: Power is on and the module is in normal operation mode. Green Blinking slowly: the module is in test or loopback mode. -
Page 13: Troubleshooting
If unable to get full connectivity with all DIP switches in the UP position, this procedure is recommended for troubleshooting. If the remote device is not a Perle media converter/module the remote device needs to be put into loopback mode. - Page 14 Perle Cx-10G media converter modules have the ability to automatically put remote supported Perle media converter/ modules into loopback mode. This allows the remote Perle media converter/module to be located in distant or inaccessible locations. The remote Perle media converter/module will remain in loopback mode as long as the tests are in progress.
-
Page 15: Technical Specifications
SFP+ supports Cx1 (direct attach) interfaces • XFP supports Cx4 modules Fiber Cabling Requirements 50/125 microns 62.5/125 microns 9/125 microns Note: Please refer the product page on the Perle website for the most up to date specifications. http://www.perle.com/ Perle 10G Media Converter module Installation Guide... -
