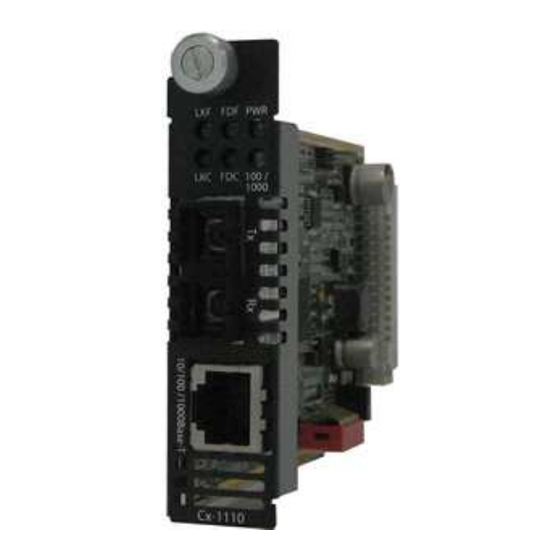

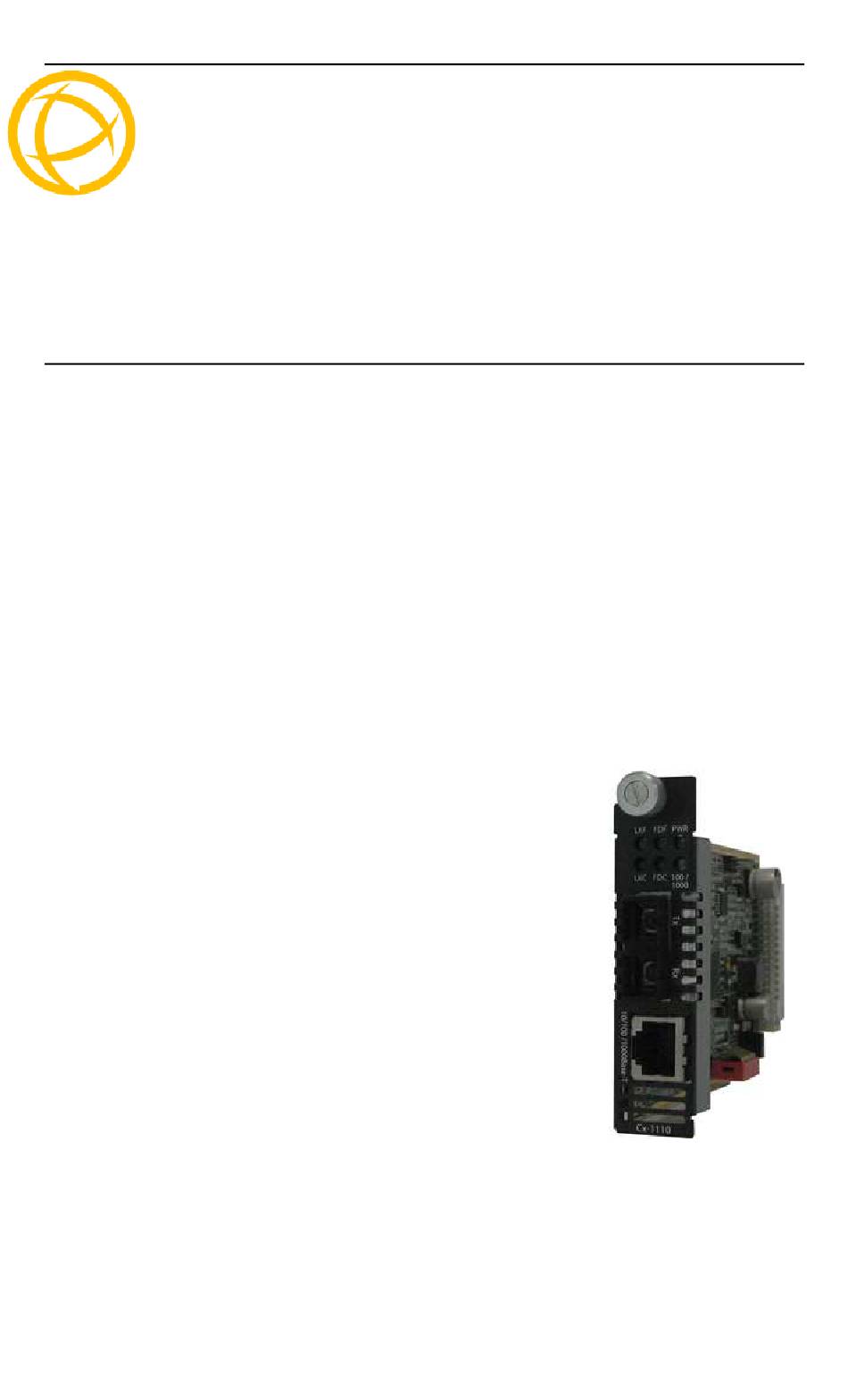

- Page 1 Perle 10/100/1000 Ethernet Media Converter Module Installation Guide C-1110-XXXXX Unmanaged Module CM-1110-XXXXX Managed Module C-1110-SFP Unmanaged Module CM-1110-SFP Managed Module P/N 5500308-20 (Rev B)
- Page 2 This document contains instructions necessary for the installation and operation of the Perle 10/100/1000 Media Converter Module(s) (C-1110 and CM-1110) to be used in conjunction with a Perle MCR chassis. The C-1110’s are unmanaged media converter modules, and the CM-1110’s are the managed versions. These...
- Page 3 CM-1110-S2xx160 C-1110-SFP Note 1 CM-1110-SFP Note 1: Fiber characteristics will vary by SFP Fiber module. Refer the Perle web site for the most up to date Installation guides, models and specifications. http://www.perle.com/ Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 4: Installation
CM- 1110 module, refer to the MCR-MGT Module User’s Guide. The following steps are used to configure the Perle 10/100/1000 Ethernet Media Converter Module: 1. Insert SFP Module. (SFP Models only) 2. Set the Auto-MDIX jumper setting. (Optional). - Page 5 DIP Switches and use those as its running configuration. It will ignore any configuration information in its flash memory. Note: The default jumper setting is Auto Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 6 CM-1110 module. *SFP’s with SGMII interface are supported on certain C-1110-SFP and CM-1110-SFP modules. The last 5 digits of the serial number on these modules must begin with the number 17 or greater. Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 7: Dip Switches
10 or 100 Mbps and force Half Duplex mode as per IEEE specifications. Off: When the Auto Negotiation switch is set to the OFF position, the Media Converter Module will not Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 8 A loss of link on either the fiber or copper port can occur without affecting the other connection. Fiber Fault Alert (Switch 3) Switch Mode Position Up (default) Enabled Down Disabled Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 9 Alert Enabled, Fiber Negotiation – OFF and Link Mode – Standard. (B) – Local Media Converter setup for Fiber Fault Alert -Enabled, Smart Link Pass-Through - Enabled and Fiber Negotiation - OFF Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 10 Note When Auto Negotiation (SW1) is set to Off, the Media Converter Module will use this switch setting for its Ethernet copper speed setting. Up: The Media Converter will be fixed at 100 Mbps. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 11 This will ensure that the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise 1000Mbps, Full and Half Duplex, no Pause.
-
Page 12: Installing Or Replacing Media Converter Modules
Chassis. Failure to observe this caution could result in damage to the Media Converter Module(s) and /or chassis. The Perle Media Converter Modules can be installed in any available slot and in any order within the chassis. 1. Remove the Media Converter Module from its packaging. - Page 13 • If not inserting a replacement, cover the opening slot with a face plate and secure the screw. Installing the SFP Fiber Module • C-1110-SFP and CM-1110-SFP require an SFP fiber module. Locate appropriate fiber module and insert into opening. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 14 Installing the Simplex Fiber Cable • Locate a 1000Base-X compliant simplex (1- strand) fiber cable with appropriate connectors. • Connect the fiber cable from the Media Converter Module to the other Media Converter/switch/fiber device. Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 15: Installing The Copper Cable
• Locate 10/100/1000Base-T compliant copper cables with male, RJ-45 connectors installed at both ends. • Connect the RJ-45 cable between the Perle Media Converter Module and the device. Note: The Perle Media Converter Module supports Auto-MDIX which allows a straight-through or cross- over Ethernet cable. -
Page 16: Operation
Blinking (slow) – Fiber link down but fiber link appears functional. but copper link appears functional. Blinking (fast) – Fiber link is up Blinking (fast) – Copper link is up and receiving data. and receiving data Perle 10/100/1000 Media Converter Module – Installation Guide... -
Page 17: Other Features
Integrated Pause signalling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Perle Media Converter Module can generate and respond to Pause messages. Perle 10/100/1000 Media Converter Module – Installation Guide... -
Page 18: Troubleshooting
3. Connect the near end device to the copper connection. The LKC LED indicates good copper connection. If the LKC LED is not lit, then check the copper cable and the attached device. Repeat for the far end Media Converter. Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 19 Media Converter. At the remote Media Converter, the data will be looped back and passed through the fiber, back to the local Media Converter Module and passed to the copper link. Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 20: Technical Specifications
Min: -22 CM-1110-S1SC10U RX:1490 Max: -3 Max: -3 C-1110-S1SC20D TX:1490 Min: -8 Min: 22 CM-1110-S1SC10D RX:1310 Max: -3 Max: -3 C-1110-S2SC40 TX: 1310 Min: -3 Min: -23 CM-1110-S2SC40 RX:1310 Max: 5 Max: -3 Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 21 RX:1510 Max: -3 Max: -3 C-1110-S2xx160 TX: 1550 Min: 0 Min: -32 CM-1110-S2xx160 RX:1550 Max: 5 Max: -9 C-1110-SFP Note 1 CM-1110-SFP Note 1: Fiber characteristics will vary by SFP Fiber module. Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 22: Compliance Information
Failure to observe this warning could result in an eye injury or blindness. WARNING: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 23 Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
