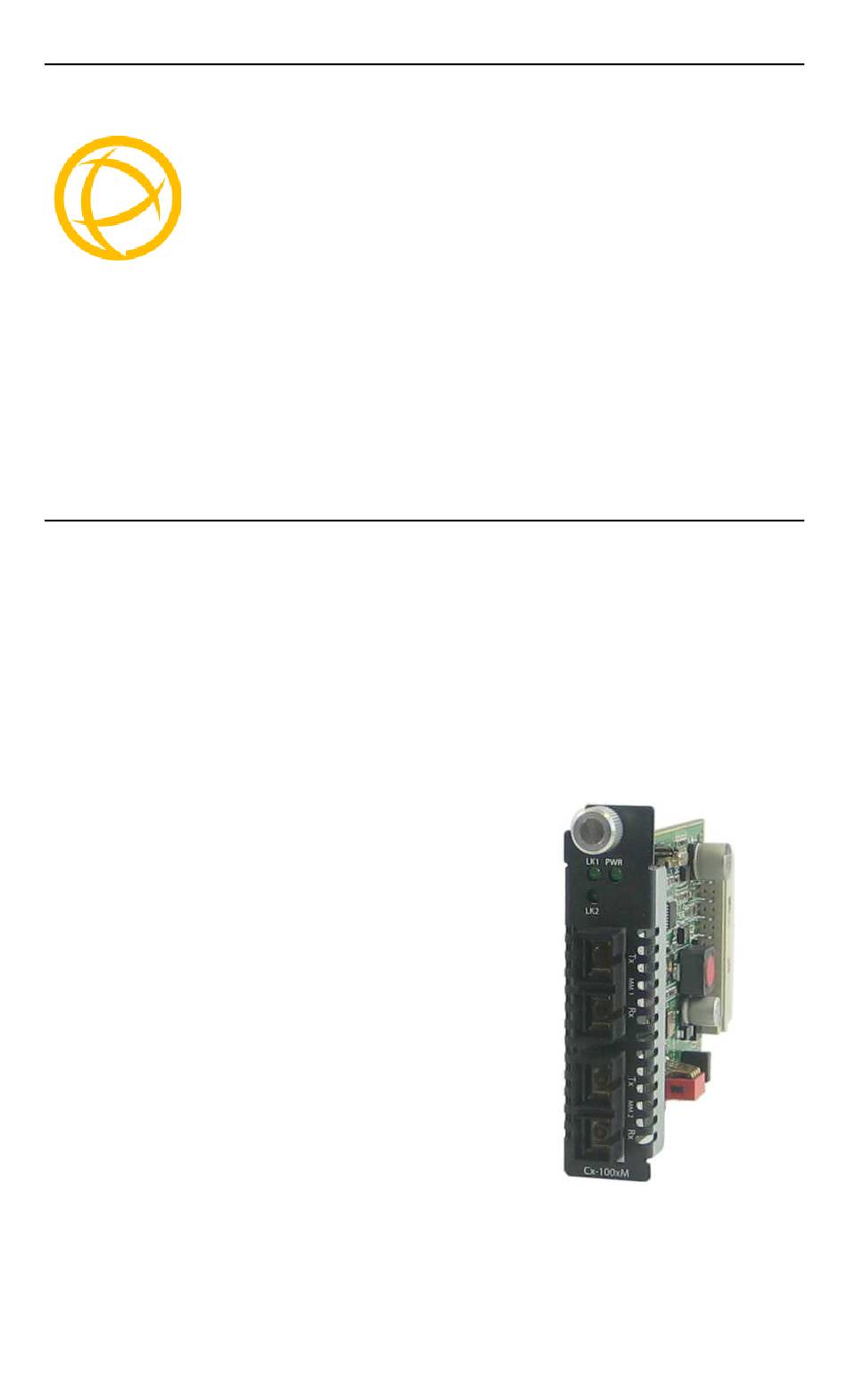

- Page 1 Perle Gigabit Fiber to Fiber Media Converter Module Installation Guide C-1000MM-XXXXXX Unmanaged Module CM-1000MM-XXXXXX Managed Module P/N 5500315-11 (Rev A)
- Page 2 Overview This document contains instructions necessary for the installation and operation of the Perle Gigabit Fiber to Fiber Media Converter Module(s) that are used in conjunction with a Perle MCR chassis. The C-1000MM media converters are unmanaged modules, and the CM-1000MM are the managed converter modules. These products allow dissimilar 1000Base-X fiber interfaces to connect to one another.
- Page 3 1510/1590 nm CM-1000MM-S1SC120U C-1000MM-S1SC120D 120 km/74.6 mi. 1590/1510 nm CM-1000MM-S1SC120D Note 2: Please refer the Perle web site for the most up to date Installation guides, models and specifications. http://www.perle.com/ Gigabit Fiber to Fiber Media Converter Module – Installation Guide...
-
Page 4: Installation
The default DIP switch settings (all switches in the UP position) and jumper setting will work for most installations. The following steps are used to configure the Perle Gigabit Fiber to Fiber Media Converter Module: 1. Set the Auto-Config jumper. (CM-1000MM only) (optional) 2. - Page 5 MM1 and MM2/SM2 (fiber ports). This will ensure the most optimal connection parameters will be in effect. If connecting to another Perle media converter, this parameter should be set to Auto. Off: Fiber negotiation on both fiber ports will be disabled. Fiber Negotiation should only be turned off, if the fiber link partner does not support fiber link negotiations.
- Page 6 Link Mode (Switch 2) Switch Position Mode Up (default) Smart Link Pass-Through Mode Down Standard Mode Smart Link Pass-Through: In this mode, the link state on one connection is directly reflected through the Media Converter to the other connection. If link is lost on one of the connections, then the other link will be brought down.
- Page 7 Illustration of the FFA Media Converter A Configuration Link Mode–Standard Mode Fiber Fault Alert Media Converter B Configuration Link Mode–Smart Link Pass Through Mode Fiber Fault Alert Sequence of Events 1. Media Converter loses fiber connection (RX) on MM2/SM2. 2. Media Converter disables the transmitter (TX) MM2/SM2.
- Page 8 Remote Loopback Fiber 1 (Switch 4) Switch Position Mode Up (default) Disabled Down Enabled Disabled: The loopback feature is disabled. This is the normal position for regular operation. The switch must be set to this position in order for data to pass through the Media Converter Module.
-
Page 9: Installing Media Converter Modules
Media Converter Module(s) into the Chassis. Failure to observe this caution could result in damage to the Module(s) and/or chassis. The Perle Media Converter Modules can be installed in any available slot and in any order within the chassis. 1. Remove the Module from its packaging. - Page 10 Removing Media Convert Modules 1. Loosen the captive retainer screw on the front of the Media Converter Module and gently pull the module out. 2. If not inserting a replacement Media Converter Module then cover the opening slot with a face plate and secure the screw. Installing the Duplex Fiber Cable 1.
-
Page 11: Operation
Operation Status LED The Perle Gigabit Media Converter Modules have three single colored status LEDs located on the face plate of the module. PWR - Power/Test • On: Power is on, module is operating normally. • Blinking slowly: the module is in loopback mode. -
Page 12: Troubleshooting
Troubleshooting General • Ensure the module is securely seated in the chassis. The PWR LED on the module should be on solid. • Ensure all cabling is of the correct type and is in good operating condition. • Ensure both devices on either end of the fiber are compatible. If using a simplex fiber connection, ensure that you have both an Upstream (U) and Downstream (D) Media Converters. -
Page 13: Technical Specifications
Technical Specifications The following applies to all C-1000MM and CM-1000MM media converters: Maximum Power Consumption 2.5 watts Operating Temperature: 0°C - 50°C (32°F - 122°F) Storage Temperature: -25°C - 70°C (-13°F - 158°F) Operating Humidity: 5% to 90% non-condensing Storage Humidity: 5% to 95% non-condensing Operating Altitude: Up to 3,048 m (10,000 ft) - Page 14 Fiber Cabling Requirements: MM: 50/125 microns or 62.5/125 microns 9/125 microns Note: Please refer the product page on the Perle website for the most up to date models and specifications. http://www.perle.com/ Gigabit Fiber to Fiber Media Converter Module – Installation Guide...
-
Page 15: Compliance Information
Compliance Information This product has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 16: Warranty Registration
Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
