Perle 10/100/1000 Ethernet
Installation Guide
Unmanaged
C-1110-M2SC05
C-1110-M2LC05
C-1110-S2LC10
C-1110-S2SC10
C-1110-S2LC40
C-1110-S2SC70
C-1110-S2LC70
C-1110-S1SC10U
C-1110-S1SC10D
C-1110-SFP
Media Converter
Module
Managed
CM-1110-M2SC05
CM-1110-M2LC05
CM-1110-S2LC10
CM-1110-S2SC10
CM-1110-S2LC40
CM-1110-S2SC70
CM-1110-S2LC70
CM-1110-S1SC10U
CM-1110-S1SC10D
CM-1110-SFP
P/N 5500308-13
Advertisement
Table of Contents
Related Manuals for Perle C-1110-M2SC05
Summary of Contents for Perle C-1110-M2SC05

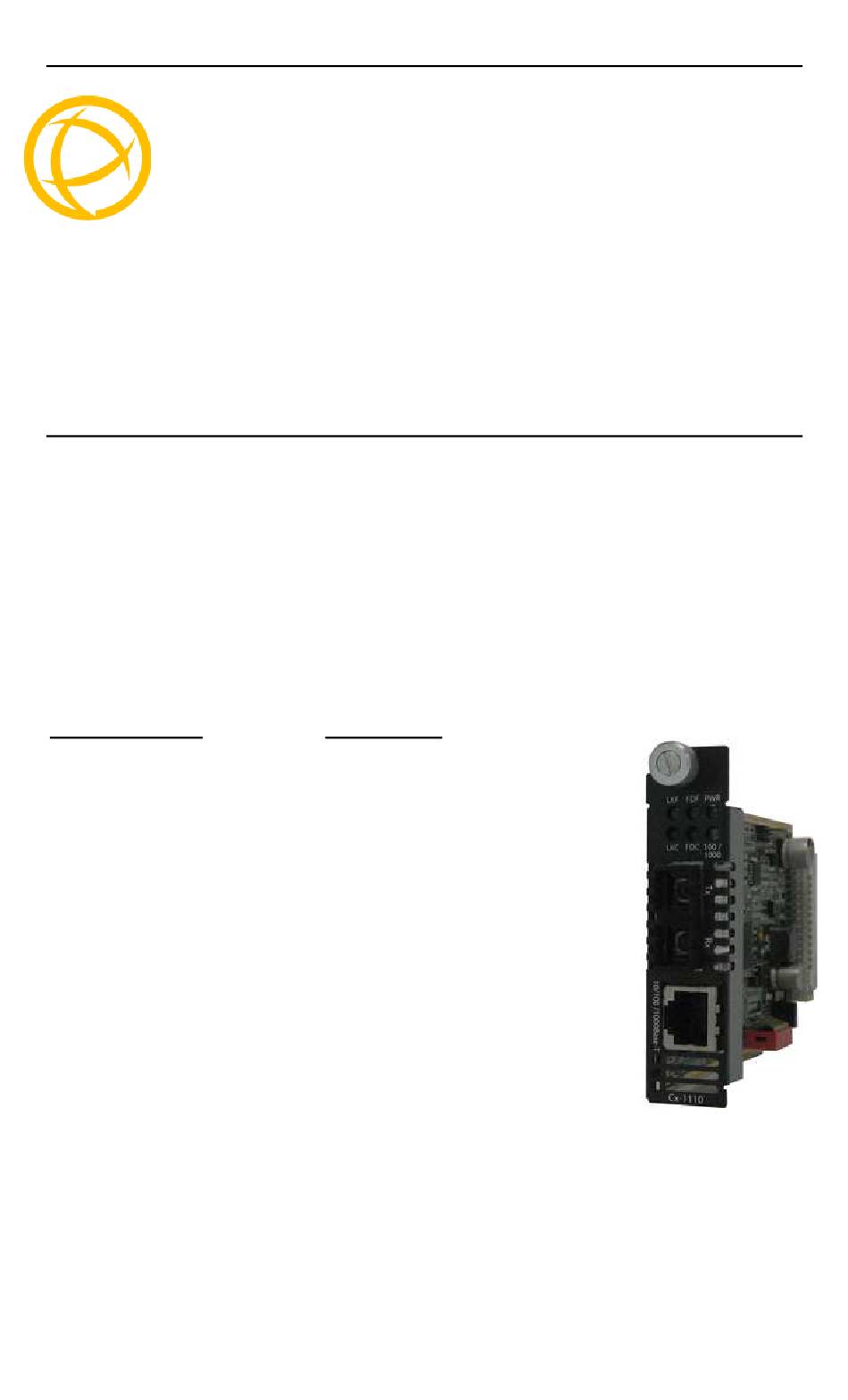

- Page 1 Perle 10/100/1000 Ethernet Media Converter Module Installation Guide Unmanaged Managed C-1110-M2SC05 CM-1110-M2SC05 C-1110-M2LC05 CM-1110-M2LC05 C-1110-S2LC10 CM-1110-S2LC10 C-1110-S2SC10 CM-1110-S2SC10 C-1110-S2LC40 CM-1110-S2LC40 C-1110-S2SC70 CM-1110-S2SC70 C-1110-S2LC70 CM-1110-S2LC70 C-1110-S1SC10U CM-1110-S1SC10U C-1110-S1SC10D CM-1110-S1SC10D C-1110-SFP CM-1110-SFP P/N 5500308-13...
- Page 2 Note 1 CM-1110-SFP Note 1: Fiber characteristics will vary by SFP Fiber module Note 2: Please refer the Perle web site for the most up to date Installation guides, models and specifications: http://www.perle.com/ Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 3: Installation
The default dip switch settings (all switches UP) and default jumper settings will work for most installations The following steps are used to configure the Perle 10/100/1000 Ethernet Media Converter Module: 1. Insert SFP Module (SFP Models only) 2. - Page 4 SW: When set to SW (Switch), the module will, at power-up, read the settings of the DIP Switches and use those as its running configuration. It will ignore any configuration information in its flash memory. NOTE: The default jumper setting is Auto Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 5: Dip Switches
1110 and CM-1110 will parallel detect to 10 or 100 Mbps and force Half Duplex mode as per IEEE specifications. Off: When the Auto Negotiation switch is set to the OFF position, the Media Converter Module will not negotiate the Ethernet Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 6 Enabled: If the Media Converter Module detects a loss of signal on the fiber receiver, it will immediately disable its fiber transmitter signal. This, in effect, notifies the fiber link partner that an error condition exists on the fiber connection. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 7 4 – (B) Drops link on copper connection because Smart Link Pass-Through is configured. 5 – (A) Link on copper connection is not affected because Smart Link Mode is set to Standard. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 8 Converter Module will use this switch setting for its Ethernet copper speed setting. Up: The Media Converter will be fixed at 100 Mbps. Down: The Media Converter will be fixed at 10 Mbps. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 9 This will ensure that the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise 1000Mbps, Full and Half Duplex, no Pause.
-
Page 10: Installing Or Replacing Media Converter Modules
Chassis. Failure to observe this caution could result in damage to the Media Converter Module(s) and /or chassis. The Perle Media Converter Modules can be installed in any available slot and in any order within the chassis. Installing or Replacing a Media Converter Module 1. - Page 11 • Ensure the SFP module is properly seated. • SFP module may be inserted before or after the Media Converter module is inserted into the chassis. • Proceed with cable connections. Perle 10/100/1000 Media Converter Module – Installation Guide...
- Page 12 Locate 10/100/1000Base-T compliant copper cables with male, RJ-45 connectors installed at both ends. • Connect the RJ-45 cable between the Perle Media Converter Module and the device. Note: The Perle Media Converter Module supports Auto-MDIX which allows a straight-through or cross-over Ethernet cable. See page 4 in this guide for jumper positions.
-
Page 13: Operation
Blinking (slow) – Fiber link down but fiber link appears functional. but copper link appears functional. Blinking (fast) – Fiber link is up and Blinking (fast) – Copper link is up receiving data. and receiving data Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 14 Integrated Pause signalling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Perle Media Converter Module can generate and respond to Pause messages. Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 15: Troubleshooting
4. Connect the fiber cable to both Media Converters. The LKF LED indicates good fiber connection. If no LKF LED then check the fiber cabling. 5. Return converters to their desired configuration. Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 16 Media Converter. At the remote Media Converter, the data will be looped back and passed through the fiber, back to the local Media Converter Module and passed to the copper link. Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 17: Technical Specifications
C-1110-S2LC70 CM-1110-S2LC70 RX:1550 Max: 5 Max: -3 Min: -9 Min: -20 TX: 1310 C-1110-S1SC10U CM-1110-S1SC10U RX:1490 Max: -3 Max: -3 Min: -9 Min: -20 C-1110-S1SC10D TX:1490 RX:1310 CM-1110-S1SC10D Max: -3 Max: -3 Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 18 • Category 5 UTP or STP • 24-22 AWG • Straight through or Ethernet crossover Note: Please refer the product page on the Perle website for the most up to date list of models and specifications. http://www.perle.com/ Perle 10/100/1000 Media Converter Module – Installation Guide...
-
Page 19: Compliance Information
Failure to observe this warning could result in an eye injury or blindness. WARNING: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Perle 10/100/1000 Media Converter Module – Installation Guide... - Page 20 Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
