SmartNode 4110 Series router

The SmartNode 4110 Series are compact VoIP Gateways that support two to eight VoIP calls and various
combinations of FXS and FXO ports (see
The following base models (each equipped with one 10/100Base-T Ethernet port) are available:
• SmartNode 4112 (2 VoIP calls)
• SmartNode 4114 (4 VoIP calls)
• SmartNode 4116 (6 VoIP calls)
• SmartNode 4118 (8 VoIP calls)
SmartNode Series VoIP routers overview
figure 5).
V o
ic e
P o
r ts
0 /3
0 /2
0 /1
F X
S
0 /0

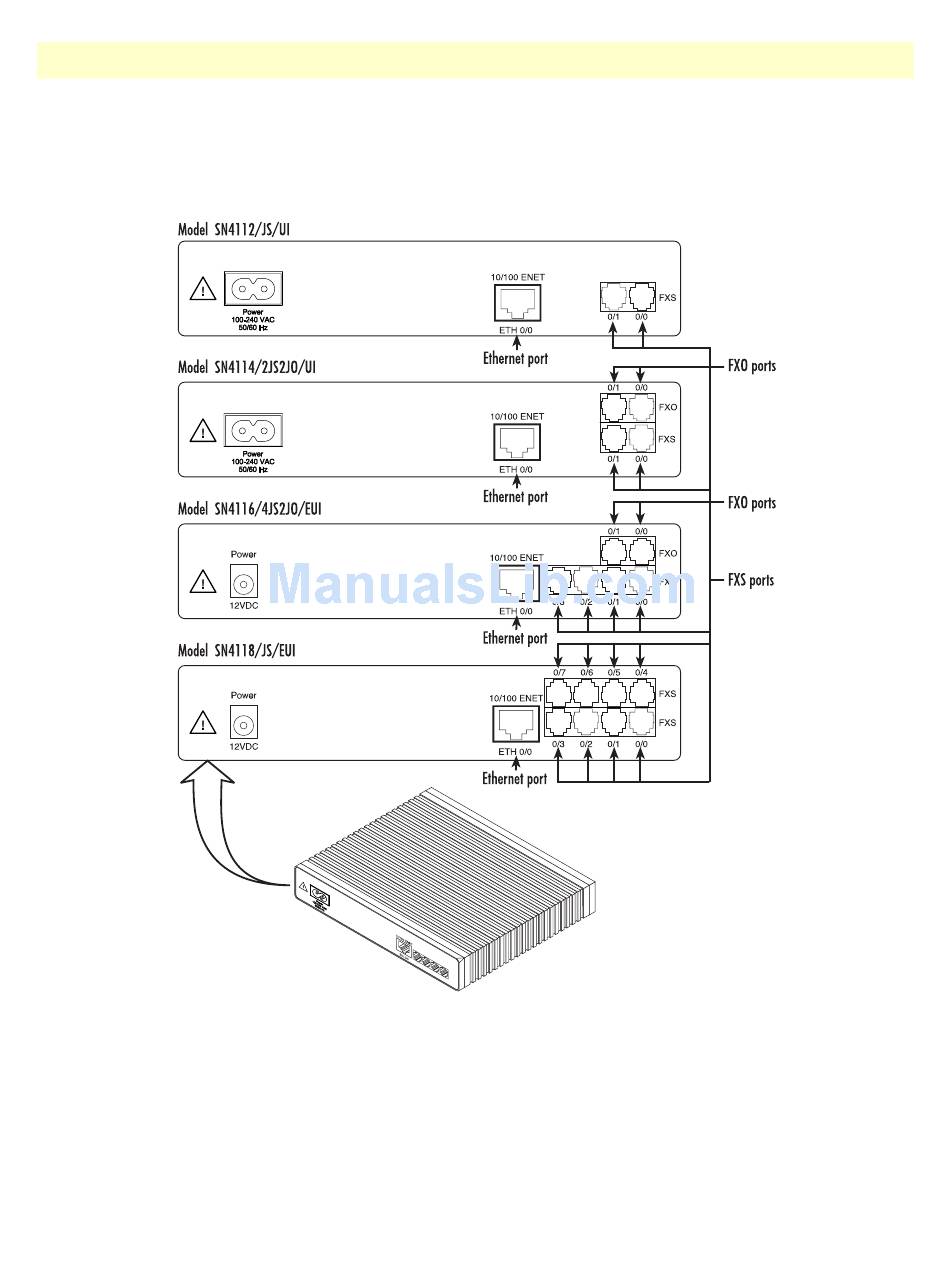

Figure 5. Examples of SN4110 Series rear panels
