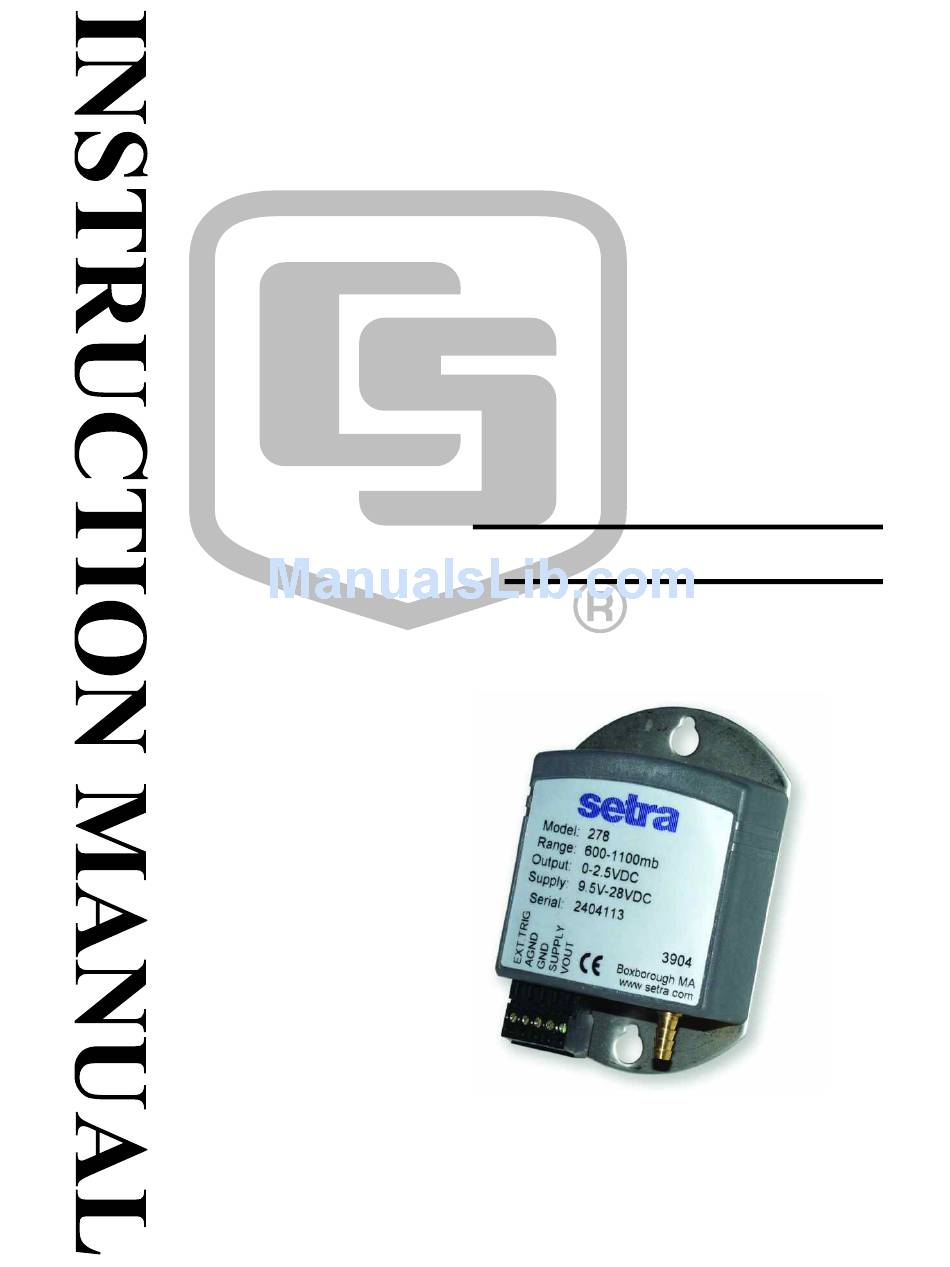

CS100 Barometric

Pressure Sensor

Revision: 8/12
C o p y r i g h t
©
2 0 0 2 - 2 0 1 2
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell CS100

Summary of Contents for Campbell CS100

  • Page 1: Pressure Sensor

    CS100 Barometric Pressure Sensor Revision: 8/12 C o p y r i g h t © 2 0 0 2 - 2 0 1 2 C a m p b e l l S c i e n t i f i c , I n c .
  • Page 3 Campbell pricelist or product manual. Products not manufactured, but that are re-sold by Campbell, are warranted only to the limits extended by the original manufacturer. Batteries, fine-wire thermocouples, desiccant, and other consumables have no warranty.
  • Page 4 SCIENTIFIC, INC., phone (435) 227-9000. After an applications engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific's shipping address is: CAMPBELL SCIENTIFIC, INC.

  • Page 5: Table Of Contents

    Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction ..............1 2. Cautionary Statements..........1 3. Initial Inspection ............1 4. Quickstart ..............1 Step 1 —...
  • Page 6 Table of Contents Figures 5-1. CS100 Barometric Pressure Sensor............. 5 7-1. ENC100 is a very small enclosure that can house one CS100 .... 8 7-2. CS100 as removed from the box ............9 7-3. Connector key attached to 5-pin screw terminal plug connector..10 Tables 7-1.

  • Page 7: Introduction

    Step 1 — Mount Sensor to an Enclosure Backplate The mounting holes for the sensor are one-inch-centered (three inches apart), and will mount directly onto the holes on the backplates of the Campbell Scientific enclosures. Mount the sensor with the pneumatic connector pointing...

  • Page 8: Step 2 - Use Scwin Short Cut To Program Datalogger And Generate Wiring Diagram

    Generate Wiring Diagram The simplest method for programming the datalogger to measure the CS100 is to use Campbell Scientific's SCWin Short Cut Program Generator. 1. Open Short Cut and click on New Program. 2. Select a datalogger and scan interval.
  • Page 9 CS100 Barometric Pressure Sensor 3. Select CS100 Barometric Pressure Sensor then click the right arrow in the middle of the page to add the sensor to the list of sensors to be measured. 4. Define the name of the public variables. Variable defaults to BP_mmHg that holds the barometric pressure measurements.

  • Page 10: Overview

    CS100 Barometric Pressure Sensor 5. Choose the outputs for the barometric pressure and then select finish. 6. Remove the yellow warning label from the pigtails and wire according to the wiring diagram generated by SCWin Short Cut. WARNING Improper wiring may damage the CS100 beyond repair. Overview The CS100 is a capacitive pressure transducer that uses the Setra's electrical capacitor technology for barometric pressure measurements over the 600 to...

  • Page 11: Cs100 Barometric Pressure Sensor

    Setra’s custom Application Specific Integrated Circuit (ASIC). The analog signal generated by the barometer can be directly measured by a Campbell Scientific datalogger. The CS100 is supplied in the triggered mode, in which the datalogger switches 12 VDC power to the barometer before the measurement.

  • Page 12: Specifications

    CS100 Barometric Pressure Sensor Specifications Features: • Integral switching circuit limits power consumption to measurement cycle • Compatible with all Campbell Scientific dataloggers (including the CR200(X) series) • Calibration NIST traceable • Meets CE conformance standards Compatibility Dataloggers: CR200(X) series...

  • Page 13: Performance For "500 To 1100 Mb" Range Option

    CS100 Barometric Pressure Sensor 6.1.2 Performance for “500 to 1100 mb” Range Option Measurement Range: 500 to 1100 mb Total Accuracy ±0.6 mb @ 20°C ±1.2 mb @ 0° to +40°C ±2.0 mb @ -20° to +50°C ±2.5 mb @ -40° to +60°C Linearity: ±0.5 mb Hysteresis:...

  • Page 14: Installation

    Failure to protect the sensor from condensation may result in permanent damage. The CS100 is typically mounted in a Campbell Scientific enclosure next to the datalogger. Campbell Scientific also offers the ENC100 for situations where it is desirable to house the CS100 in its own enclosure. The ENC100 is a 6.7-in.

  • Page 15: Wiring

    CS100 Barometric Pressure Sensor Remember that for the sensor to detect the external ambient pressure, the enclosure must vent to the atmosphere (i.e., not be hermetically sealed). Enclosures purchased from Campbell Scientific properly vent to the atmosphere. NOTE For user-supplied enclosures, it may be necessary to make a vent hole on the outer wall.

  • Page 16: 5-Pin Screw Terminal Plug Connector

    CS100 Barometric Pressure Sensor TABLE 7-1. Signal and Ground Connectors for CS100 Datalogger Datalogger Wire CS100 Terminal Single-Ended Measurement Differential Measurement Blue VOUT S.E. Input High Side of Diff Input Yellow AGND AG (CR10(X), CR500, CR510) Low Side of Diff. Input (Other Dataloggers) Black (21X, CR7, CR9000(X))

  • Page 17: Programming

    CS100 Barometric Pressure Sensor Programming The CS100 sensor is measured using the singled-ended voltage measurement instruction (VoltSE() in CRBasic and Instruction 1 in Edlog). Atmospheric pressure changes little with time. In most weather station applications measuring pressure once an hour is adequate. 7.3.1 Conversion Factors In the example programs, the pressure is reported in millibars (mb).

  • Page 18: Program Examples

    CS100 Barometric Pressure Sensor 7.3.3 Program Examples The CS100 wiring instructions for the example programs are shown in TABLE 7-4 below. TABLE 7-4. Wiring for Example Programs Wire Color Description CR10(X) CR1000 Blue VOUT – Pressure Signal Out SE15 SUPPLY – 12 Vdc Power In Black GND –...

  • Page 19: Crbasic Example 2: Cr1000 Program Using Pipeline Mode

    CS100 Barometric Pressure Sensor EndIf 'Call Data Tables and Store Data CallTable(Table1) CallTable(Table2) NextScan EndProg 7.3.3.2 CRBasic Example 2: CR1000 Program Using Pipeline Mode Although this example is for the CR1000, other CRBasic dataloggers, such as the CR200(X), CR800, CR850, CR3000, and CR9000(X) are programmed similarly.

  • Page 20: Edlog Example - Cr10X Program

    CS100 Barometric Pressure Sensor 7.3.3.3 Edlog Example — CR10X Program Although this example is for a CR10X, other Edlog dataloggers, such as the CR510, CR23X, CR7, and 21X are programmed similarly. In the example, the CR10X datalogger turns on the CS100 one minute before the top of the hour using a control port.

  • Page 21: Output Resolution

    The default resolution (low resolution) for Campbell Scientific dataloggers is limited to a maximum of four digits. Even then, the maximum digit value that can be displayed is 6999 for Edlog dataloggers, and 7999 for the CRBasic dataloggers.

  • Page 22: Maintenance And Calibration

    The external case can be cleaned with a damp, lint-free cloth and a mild detergent solution. Contact Campbell Scientific, Inc. (435-227-9000) for an RMA number before returning the sensor for recalibration. You may also return the unit directly to Setra for recalibration.
  • Page 24 Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com • info@campbellsci.com Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Somerset West 7129 SOUTH AFRICA www.csafrica.co.za • cleroux@csafrica.co.za Campbell Scientific Australia Pty. Ltd. (CSA)
