Campbell CS106 Instruction Manual

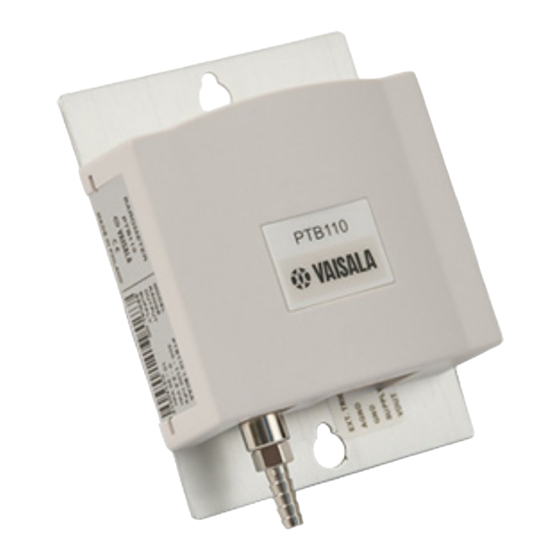

Barometric pressure sensor
Hide thumbs Also See for CS106:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

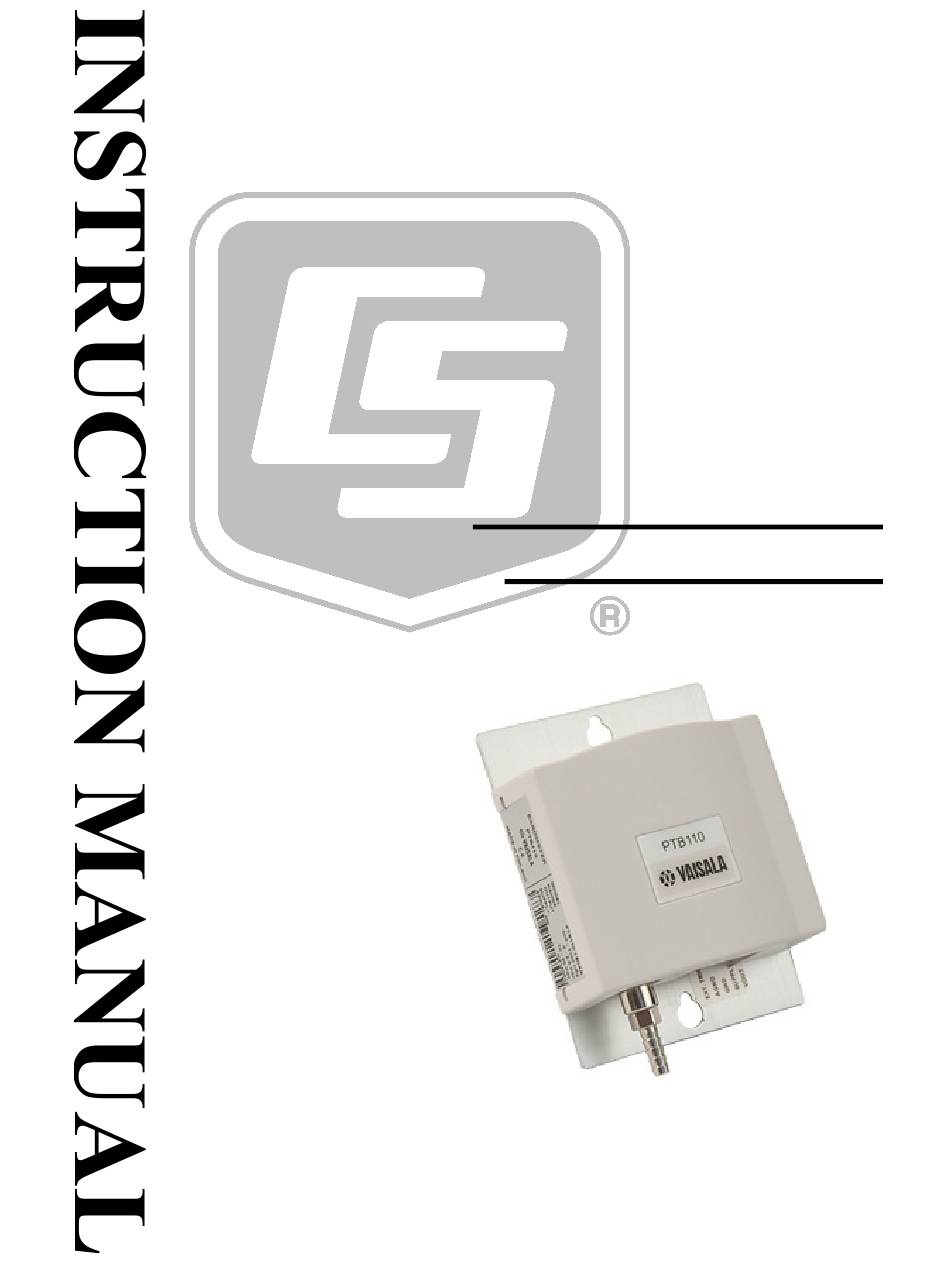

CS106 Barometric
Pressure Sensor
Revision: 10/14
C o p y r i g h t
©
1 9 9 5 - 2 0 1 4
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS106 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell CS106

Summary of Contents for Campbell CS106

  • Page 1 CS106 Barometric Pressure Sensor Revision: 10/14 C o p y r i g h t © 1 9 9 5 - 2 0 1 4 C a m p b e l l S c i e n t i f i c ,...
  • Page 3 Limited Warranty “Products manufactured by CSI are warranted by CSI to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified in the corresponding product manual. (Product manuals are available for review online at www.campbellsci.com.) Products not manufactured by CSI, but that are resold by CSI, are warranted only to the limits extended by the original manufacturer.
  • Page 4 SCIENTIFIC, INC., phone (435) 227-9000. After an application engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.
  • Page 5 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.

  • Page 7: Table Of Contents

    Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction ..............1 2. Cautionary Statements ..........1 3. Initial Inspection ............1 4.
  • Page 8 Figures 7-1. CS106 jumper set to shutdown mode ..........6 7-2. ENC100 is a very small enclosure that can house one CS106 .... 7 7-3. CS106 wiring diagram................. 8 7-4. Connector key attached to 5-pin screw terminal plug connector ..9 8-1.

  • Page 9: Introduction

    File damage claims with the shipping company. Quickstart Short Cut is an easy way to program your datalogger to measure the CS106 and assign datalogger wiring terminals. Use the following procedure to get started. 1. Install Short Cut by clicking on the install file icon. Get the install file from either www.campbellsci.com, the ResourceDVD, or find it in...
  • Page 10 CS106 Barometric Pressure Sensor 2. The Short Cut installation should place a Short Cut icon on the desktop of your computer. To open Short Cut, click on this icon. 3. When Short Cut opens, select New Program. 4. Select Datalogger Model and Scan Interval (default of 5 seconds is OK...
  • Page 11 CS106 Barometric Pressure Sensor 5. Under the Available Sensors and Devices list, select Sensors | Meteorological | Barometric Pressure folder. Select CS106 Barometric Pressure Sensor. Click to move the selection to the Selected device window. Enter the Sea Level Elevation Correction. The default units for the sea level elevation correction is meters;...

  • Page 12: Overview

    This barometer is encased in a plastic shell (ABS/PC blend) fitted with an intake valve for pressure equalization. The CS106 outputs a linear 0 to 2.5 Vdc signal that corresponds to 500 to 1100 mb. It can be operated in a shutdown or normal mode (see Section 7.1, Jumper Settings).

  • Page 13: Accuracy

    10 to 30 Vdc Supply Voltage Control: When the internal jumper is closed, the CS106 is on continually. When the jumper is open, the CS106 can be turned on/off with 5 Vdc/ 0 Vdc. Supply Voltage Sensitivity: negligible Current Consumption: <4 mA (active);...

  • Page 14: Installation

    When the jumper is not installed, the CS106 is in shutdown mode and the datalogger turns the CS106 on and off with a control port or excitation channel; to use the excitation channel the datalogger must be able to provide an excitation voltage of 5 Vdc.

  • Page 15: Enc100 Is A Very Small Enclosure That Can House One Cs106

    The mounting holes for the sensor are one-inch-centered (three inches apart), and will mount directly onto the holes on the backplate of Campbell Scientific enclosures. Mount the sensor with the pneumatic connector pointing vertically downwards to prevent condensation collecting in the pressure cavity, and also...

  • Page 16: Wiring

    See Table 3-1 Black – Power Ground (GND) TABLE 7-1 Control Port or Excitation Channel Green – Control (EXT. TRIG) Control Port or Excitation Channel Ground or Analog Ground Ground or Analog Ground Clear – Shield (G or AGND) FIGURE 7-3. CS106 wiring diagram...

  • Page 17: 5-Pin Screw Terminal Plug Connector

    CS106 right side up (see FIGURE 7-4). When the connector is right side up, it will easily plug into the barometer.

  • Page 18: Programming

    CS106 Barometric Pressure Sensor Programming Short Cut is the best source for up-to-date datalogger programming code. Programming code is needed, when creating a program for a new datalogger installation • when adding sensors to an existing datalogger program • If your data acquisition requirements are simple, you can probably create and maintain a datalogger program exclusively with Short Cut.

  • Page 19: Operations

    CS106 Barometric Pressure Sensor Operations Multiplier and Offset Calculation The multiplier and offset in the VoltSE() CRBasic instruction convert millivolts to millibar or hPa. The output from the sensor is 0 to 2.5 V or 0 to 2500 mV and the sensor’s operating range is from 500 to 1100 mbars (hPa).

  • Page 20: Long Lead Lengths

    (VoltDiff()) to measure the CS106. Output Resolution When storing the values from the CS106 to a data table, care must be taken to choose suitable scaling of the reading, or to store the value with adequate resolution to avoid losing useful resolution of the pressure measurement. The default resolution (low resolution) for Campbell Scientific dataloggers is limited to a maximum of four digits.

  • Page 21: Maintenance And Calibration

    Should you lose the five terminal connector (pn 16004), the replacement part can be purchased from Campbell Scientific, Inc. Contact Campbell Scientific, Inc. to purchase the part. The CS106 is sensitive to static when the backplate is CAUTION removed. To avoid damage, take adequate anti-static...
  • Page 22 CS106 Barometric Pressure Sensor...

  • Page 23: Importing Short Cut Code

    Appendix A. Importing Short Cut Code This tutorial shows: How to import a Short Cut program into a program editor for • additional refinement How to import a wiring diagram from Short Cut into the comments of • a custom program A.1 Importing Short Cut Code into a Program Editor Short Cut creates files that can be imported into CRBasic Editor.
  • Page 24 Appendix A. Importing Short Cut Code mark) begins each line. This character instructs the datalogger compiler to ignore the line when compiling the datalogger code.

  • Page 25: Example Programs

    In the example, the CR1000 measures the CS106 once an hour. To do this, the CR1000 uses a control port to turn on the CS106 one minute before the top of the hour. On the hour, the datalogger measures the CS106, and then turns the CS106 off.

  • Page 26: Cr1000 Program Using Pipeline Mode

    “CS106_temp”. Once the CS106 is turned on one minute before the hour, the CS106 starts to make the correct pressure measurements. At the top of the hour, the correct value is copied into the current variable called “pressure”, and the sensor is turned off immediately.
  • Page 28 • info@campbellsci.com.cn • info@campbellsci.de www.campbellsci.com www.campbellsci.de Campbell Scientific do Brasil Ltda. (CSB) Campbell Scientific Spain, S. L. (CSL Spain) Rua Apinagés, nbr. 2018 ─ Perdizes Avda. Pompeu Fabra 7-9, local 1 CEP: 01258-00 ─ São Paulo ─ SP 08024 Barcelona...
