Revision: 08/2021
Copyright © 2016 – 2021
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell CS230

Summary of Contents for Campbell CS230

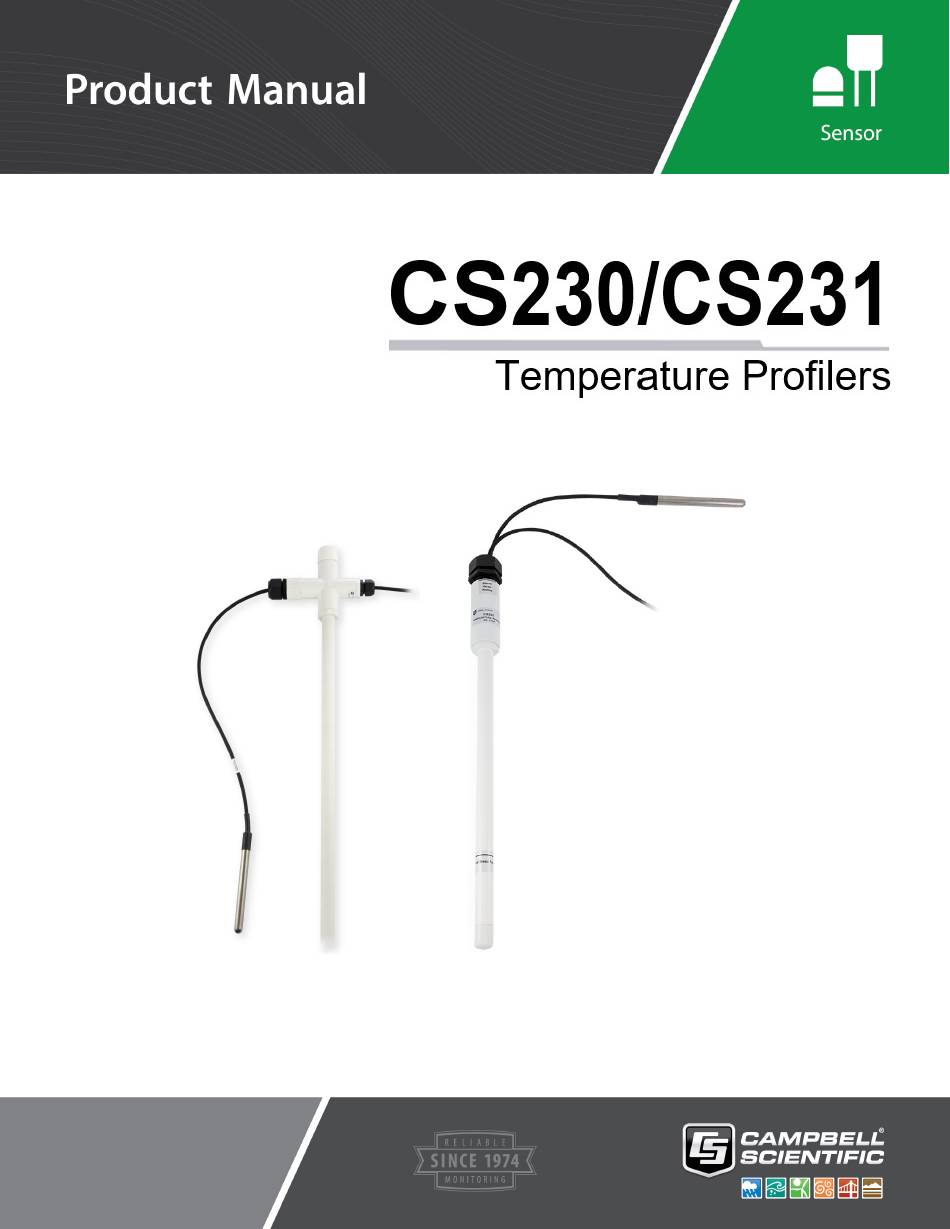

  • Page 1 Revision: 08/2021 Copyright © 2016 – 2021 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. QuickStart 5. Overview 6. Specifications 7. Installation 7.1 Siting 7.2 Mounting 7.3 Wiring 7.4 Programming 7.4.1 SDI12Recorder() instruction 7.4.2 Slow sequence program instructions 8. Operation 8.1 Sensor measurements 8.1.1 SDI-12 addressing 8.1.2 Metadata 8.2 Long cables 8.3 Power conservation...
  • Page 3 B.1.6 Start measurement commands (aM!) B.1.7 Stopping a measurement command B.1.8 Send data command (aD0! … aD9!) B.1.9 Continuous measurement command (aR0! … aR9!) B.2 SDI-12 transparent mode B.2.1 Changing an SDI-12 address B.3 References Appendix C. SGB3 electrical surge protector C.1 SGB3 3-line surge protector specifications C.2 SGB3 3-line surge protector mounting and wiring Table of Contents - ii...

  • Page 4: Introduction

    Safety section at the back of this manual. Although the CS230/CS231 is designed to be a rugged and reliable device for field use, care should be taken when handling or moving it to avoid damage. There are no user-serviceable parts and disassembling the device will void the warranty.

  • Page 5: Quickstart

    . It is included in installations of LoggerNet, RTDAQ, and PC400. The following procedure also shows using Short Cut to program the CS230/CS231. 1. Open Short Cut and click Create New Program. 2. Double-click the data logger model. 3. In the Available Sensors and Devices box, type CS231 or locate the sensor in the Sensors >...
  • Page 6 4. Click the Wiring tab to see how the sensor is to be wired to the data logger. Click OK after wiring the sensor. 5. Repeat steps 3 and 4 for other sensors. 6. In Output Setup, type the scan rate, meaningful table names, and Data Output Storage Interval. CS230/CS231 Temperature Profilers...

  • Page 7: Overview

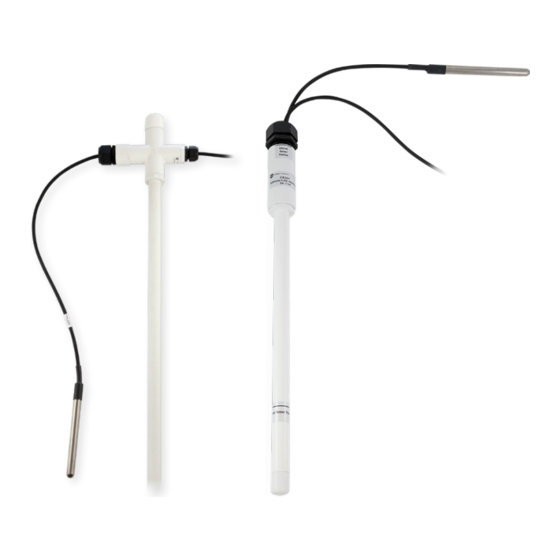

    The CS230/CS231 temperature profiler uses digital sensor technology allowing for a simple 3-wire integration. The CS230/CS231 consists of a rigid probe assembly and up to four optional external temperature probes. The rigid probe assembly maintains the precise position of the temperature points within the profile, while protecting the temperature sensors in all mediums.

  • Page 8: Specifications

    Second sensor from tee: 420 s Remainder of profiler: 300 s Maximum sensors per probe: 32 sensors in rigid probe assembly, 4 external sensors External probe length: 45 cm (18 in) Supply voltage: 9 to 28 VDC CS230/CS231 Temperature Profilers...

  • Page 9: Installation

    (p. 2) for a Short Cut tutorial. 7.1 Siting Install the CS230/CS231 directly in the medium that is to be measured. The types of medium that can be measured are varied, including soils, roadbeds, and water. To make the most representative measurement, it is important that consistent contact be made between the temperature profiler and the medium.
  • Page 10 (p. 7) is an example configuration with three external sensors and five internal sensors. Each profiler is custom built to the user’s specific requirements. FIGURE 7-2 (p. 7) shows the label for the first and last internal sensor locations. FIGURE 7-2. Internal sensor label CS230/CS231 Temperature Profilers...

  • Page 11: Mounting

    Orient the signal and power cable of the CS230/CS231 towards the data logger to avoid loops or strain on the cable. Also use a suitable trench or conduit to protect the signal and power cable from damage.

  • Page 12: Programming

    SDI12Recorder() instruction is used to measure the temperature sensors in the CS230/CS231. This instruction sends a request to the sensor to make a measurement and then retrieves the measurement from the sensor. See Sensor measurements (p. 10) for more information.

  • Page 13: Operation

    SDI-12 protocol. Outputs of both lifetime and user resettable minimum and maximum temperatures are also available during powered operation from each temperature point in the CS230/CS231. The user- resettable minimum and maximum temperatures can be used to monitor specific seasons or periods of measure, without having to review the entire data set.

  • Page 14: Sdi-12 Addressing

    If multiple SDI-12 sensors are connected to the data logger, Campbell Scientific recommends using separate terminals when possible. However, multiple SDI-12 sensors or multiple CS230/CS231 sensors can connect to the same data logger control or U terminal if they have different SDI-12 addresses. If changing the SDI-12 addresses, Campbell Scientific recommends starting the readdressing process with the largest temperature sensor address to avoid duplicate addresses.
  • Page 15 / 51 Q / 26 q / 52 R / 27 r / 53 S / 28 s / 54 T / 29 t / 55 U / 30 u / 56 V / 31 v / 57 CS230/CS231 Temperature Profilers...

  • Page 16: Metadata

    The original SDI-12 standard specifies the maximum total cable length for the cable as being 61 m (200 ft), but we are able to exceed this limit by: CS230/CS231 Temperature Profilers...

  • Page 17: Power Conservation

    U terminals 8.3 Power conservation The CS230/CS231 draws less than 1 mA of current per sensor between polling sessions from its 12 V supply. In many applications, this is minimal compared to overall system power use, so the sensor can be permanently powered to avoid the warm-up period.
  • Page 18 Use the aA{! command, where a is the affected address. This will reset the affected sensors to their factory configured address value. For example, if two sensors have address 2, sending 2A{! will reset both sensors to the original addresses. CS230/CS231 Temperature Profilers...

  • Page 19: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Block. This adds an apostrophe (') to the beginning of each of the highlighted lines, which instructs the data logger compiler to ignore those lines when compiling. The Comment Block feature is demonstrated at about 5:10 in the CRBasic | Features video CS230/CS231 Temperature Profilers...

  • Page 20: Appendix B. Sdi-12 Sensor Support

    SDI-12, Serial Data Interface at 1200 baud, is a protocol developed to simplify sensor and data logger compatibility. Only three wires are necessary — serial data, ground, and 12 V. With unique addresses, multiple SDI-12 sensors can connect to a single SDI-12 terminal on a Campbell Scientific data logger.

  • Page 21: Acknowledge Active Command (A!)

    Table B-1: Campbell Scientific sensor SDI-12 command and response set Response Name Command Address Query a<CR><LF> aAb! Change Address b<CR><LF> Start Measurement atttn<CR><LF> aM1!...aM9! a<values><CR><LF> or aD0!...aD9! Send Data a<values><CRC><CR><LF> Information on each of these commands is given in the following sections.

  • Page 22: Start Verification Command (Av!)

    D commands. n = the number of values returned when one or more subsequent D commands are issued. For the aM! command, n is an integer from 0 to 9. CS230/CS231 Temperature Profilers...

  • Page 23: Stopping A Measurement Command

    D command that follows an M! or MC! command. A sensor may return up to 75 characters of data in response to a D command that follows a C! or CC! command. Data values are separated by plus or minus signs. Command: aD0! (aD1! … aD9!) CS230/CS231 Temperature Profilers...

  • Page 24: Continuous Measurement Command (Ar0

    Transparent mode is entered while the computer is communicating with the data logger through a terminal emulator program. It is accessed through Campbell Scientific data logger support software or other terminal emulator programs. Data logger keyboards and displays cannot be used.
  • Page 25 3. Under Device Type, type the data logger model and double-click on the model type. This example uses a CR1000X directly connected to the computer USB port. 4. Select the correct Communication Port and click Connect. 5. Click the Terminal tab. 6. Select All Caps Mode. CS230/CS231 Temperature Profilers...
  • Page 26 In the following example, the sensor address is changed from 0 to B. 12. To exit SDI-12 transparent mode, click Close Terminal. NOTE: The transparent mode for the CR6, CR3000, CR800-series, CR300-series, and CR1000 data loggers is similar to that shown for the CR1000X. CS230/CS231 Temperature Profilers...

  • Page 27: References

    B.3 References SDI-12 Support Group. SDI-12: A Serial-Digital Interface Standard for Microprocessor-Based Sensors – Version 1.4. River Heights, UT: SDI-12 Support Group, 2017. https://sdi- 12.org/specification CS230/CS231 Temperature Profilers...

  • Page 28: Appendix C. Sgb3 Electrical Surge Protector

    C.2 SGB3 3-line surge protector mounting and wiring Older CS230 profilers were shipped with the SGB3, a 2-ft cable for connecting the SGB3 to the data logger, and two pan Phillips screws and two grommets for mounting the SGB3 to an...
  • Page 29 Clear Shield The SGB3 connects to the data logger using the 2 ft cable shipped with the CS230. U terminals are automatically configured by the measurement instruction. If multiple SDI-12 sensors are connected to a data logger, Campbell Scientific recommends using separate terminals when possible.
  • Page 30 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 31 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 32 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 33 Campbell Scientific Regional Offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
