Summary of Contents for Campbell CS100
- Page 1 CS100 Barometric Pressure Sensor Revision: 03/2020 Copyright © 2002 – 2020 Campbell Scientific, Inc.
-
Page 2: Table Of Contents

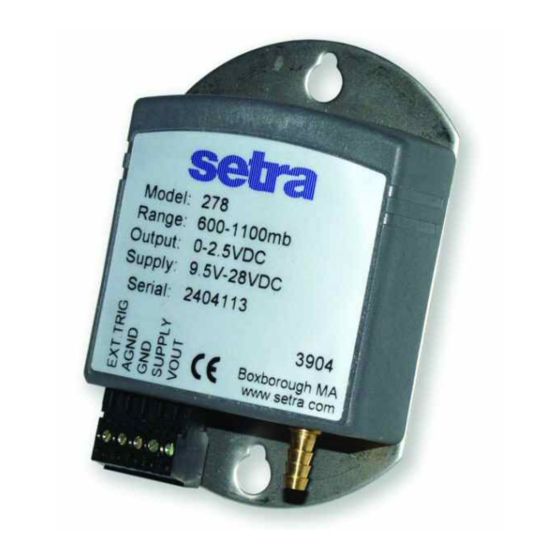

Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction..............1 2. Precautions ..............1 3. Initial Inspection ............1 4. QuickStart ..............1 5. - Page 3 Table of Contents Figures 5-1. CS100 Barometric Pressure Sensor ............4 7-1. ENC100 is a very small enclosure that can house one CS100 .....7 7-2. Connector key attached to 5-pin screw terminal plug connector ..8 7-3. CS100 and cable with warning label ............8 Tables 7-1.
-
Page 4: Introduction
CS100 Barometric Pressure Sensor Introduction The CS100 measures barometric pressure for the range of 600 to 1100 hPa. This range equates to from below sea level (as in a mine) up to 3658 m (12,000 feet) above sea level. Designed for use in environmental applications, the CS100 is compatible with all Campbell Scientific data loggers. - Page 5 Open Short Cut and click Create New Program. Double-click the data logger model. In the Available Sensors and Devices box, type CS100, or locate the sensor in the Sensors > Meteorological > Barometric Pressure folder. Double-click CS100 Barometric Pressure Sensor. Type the Sea Level Elevation Correction.
-
Page 6: Overview
Overview The CS100 is a capacitive pressure transducer that uses the Setra’s electrical capacitor technology for barometric pressure measurements. The transducer is encased in a stainless steel and polyester case fitted with an 1/8-inch barbed... -
Page 7: Cs100 Barometric Pressure Sensor
500 to 1100 hPa and 800 to 1100 hPa. Please contact Campbell Scientific to order these special versions. The CS100 is supplied in the triggered mode that allows the data logger to switch 12 VDC power to the barometer before the measurement. The data logger then powers down the barometer after the measurements to conserve power. -
Page 8: Specifications
CS100 Barometric Pressure Sensor Specifications Performance Operating Temperature Range: –40 to 60 °C (–40 to 140 °F) Storage Temperature Range: –60 to 120 °C (–76 to 248 °F) Proof Pressure: 1500 hPa Burst Pressure: 2000 hPa Humidity Range: non-condensing (up to 95% RH) -
Page 9: Electrical
Campbell Scientific also offers the ENC100 for situations where it is desirable to house the CS100 in its own enclosure. The ENC100 is a small enclosure with dimensions of 17.1 x 14.0 x 9.9 cm (6.7 x 5.5 x 3.9 in). It... -
Page 10: Mounting
Wiring 7.3.1 5-pin Screw Terminal Plug Connector The CS100 is shipped with a cable that connects to the CS100 using a 5-pin screw terminal plug connector. The cable is shipped with a connector key attached to the connector to help ensure the connector is correctly plugged into the CS100 (see FIGURE 7-2). -
Page 11: Data Logger Connection
(see FIGURE 7-3). The warning label reminds the user of the importance of properly connecting the barometer to the data logger. Proper wiring is shown in Table 7-1. Yellow Warning Label FIGURE 7-3. CS100 and cable with warning label... -
Page 12: Programming
CS100 Barometric Pressure Sensor TABLE 7-1. Wire Color, CS100 Connection, and Data Logger Connection CS100 Data Logger Terminal, Data Logger Terminal, Wire Terminal Single-Ended Measurement Differential Measurement U configured for single-ended analog U configured for differential high Blue VOUT input... -
Page 13: Operations
0.02953 0.0145 0.00099 Torr 0.75006 Long Cable Lengths Long cable lengths cause a voltage drop that will raise the barometric reading. Therefore, for cable lengths greater than 6 m (20 feet), use the differential instruction (VoltDiff()) to measure the CS100. -
Page 14: Output Resolution
The external case can be cleaned with a damp, lint-free cloth and a mild detergent solution. You can purchase a replacement five terminal connector from Campbell Scientific. CAUTION The CS100 is sensitive to static when the backplate is removed. To avoid damage, take adequate anti-static measures when handling. -
Page 15: Importing Short Cut Code Into Crbasic Editor
Appendix A. Importing Short Cut Code Into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: Create the Short Cut program. -
Page 16: Example Programs
CR1000X measures the CS100 once an hour. To do this, the CR1000X uses a control terminal to turn on the CS100 one minute before the top of the hour. On the hour, the data logger measures the CS100, and then turns the CS100 off. -
Page 17: Cr1000X Program Using Pipeline Mode
The measurement is made every scan, and the measured value is first written into a temporary variable called CS100_temp. One minute before the hour, the CS100 turns on and starts to make the correct pressure measurements. At the top of the hour, the correct value is stored into the pressure variable, and the sensor is turned off immediately. - Page 18 See Product Details on the Ordering Information pages at www.campbellsci.com. Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty...
- Page 19 Scientific office serves your country. To obtain a Returned Materials Authorization (RMA) number, contact CAMPBELL SCIENTIFIC, INC., phone (435) 227-9000. Please write the issued RMA number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.
- Page 20 Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.
- Page 21 Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil Location: Bremen, Germany Location: Shepshed, Loughborough, UK Phone:...
