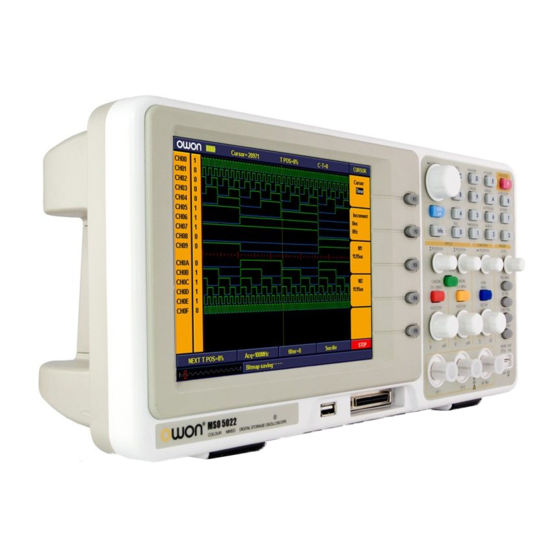

MSO Series
Portable Mixed Signal Digital Storage Oscilloscope
User Manual
■MSO7102TD
■MSO8102T
■MSO8202T
www.owon.com.cn
www.owon.com.hk

Advertisement

Table of Contents
loading

Related Manuals for Owon MSO series

Summary of Contents for Owon MSO series

  • Page 1 MSO Series Portable Mixed Signal Digital Storage Oscilloscope User Manual ■MSO7102TD ■MSO8102T ■MSO8202T www.owon.com.cn www.owon.com.hk...
  • Page 2 The information in this manual was correct at the time of printing. However, OWON will continue to improve products and reserves the rights to changes specification at any time without notice.
  • Page 3 User Manual of OWON Color Mixed Signal Digital Storage Oscilloscope General Warranty The Lilliput warrants that the product will be free from defects in materials and workmanship for a period of three years from the date of purchase of the product by the original purchaser from the Lilliput company.

  • Page 4: Table Of Contents

    Table of Contents 1.General Safety Requirements................... 1 2. Safety Terms and Symbols....................2 3.General Characteristics....................2 4.Junior User Guidebook ....................3 4.1 Introduction to the Front Panel and the User's Interface..........4 Front panel ............................... 4 Control(key and knob) area ........................5 4.2Digital Storage Oscilloscope ....................
  • Page 5 How to Implement the Automatic Measurement..................53 How to Implement the Cursor Measurement ..................56 How to use Autoscale..........................60 How to Use Executive Buttons....................... 61 5.2Logic analyzer........................63 How to set sampling system........................63 How to set trigger system........................65 How to set threshold..........................

  • Page 6: General Safety Requirements

    1.General Safety Requirements 1.General Safety Requirements Before any operations, please read the following safety precautions to avoid any possible bodily injury and prevent this product or any other products connected from damage. In order to avoid any contingent danger, this product is only used within the range specified.

  • Page 7: Safety Terms And Symbols

    2. Safety Terms and Symbols 2. Safety Terms and Symbols Safety Terms Terms in this manual. The following terms may appear in this manual: Warning: Warning indicates the conditions or practices that could result in injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other property.
  • Page 8 2. Safety Terms and Symbols To avoid body damage and prevent product and connected equipment damage, carefully read the following safety information before using the test tool. This product can only be used in the specified applications. Warning The two channels of the oscilloscope are non-isolated electrically. The channels should adopt common basis during measuring.

  • Page 9: General Characteristics

    3.General Characteristics 3.General Characteristics Digital Storage Oscilloscope Model Bandwidth Sample Rate MSO7102TD 100MHz 1GS/s half channel*, 500MS/s each channel MSO8102T 100MHz 2GS/s half channel*, 1G S/s each channel MSO8202T 200MHz 2GS/s half channel*, 1G S/s each channel Dual channel, 2M points on each channel for the Record length; Reading-out with the cursor;...

  • Page 10: Junior User Guidebook

    4.Junior User Guidebook 4.Junior User Guidebook This chapter deals with the following topics mainly: Digital Storage Oscilloscope Introduction to the front panel and the user’s interface of the MSO series oscilloscope How to implement the general inspection How to implement the function inspection How to make a probe compensation How to set the probe attenuation coefficient How to use the probe safely...

  • Page 11: Introduction To The Front Panel And The User's Interface

    4.Junior User Guidebook 4.1 Introduction to the Front Panel and the User's Interface When you get a new-type oscilloscope, you should get acquainted with its front panel at first and the MSO series mixed digital storage oscilloscope is no exception. This chapter makes a simple description of the operation and function of the front panel of the MSO series mixed oscilloscope, enabling you to be familiar with the use of the MSO series mixed oscilloscope in the shortest time.

  • Page 12: Control(Key And Knob) Area

    4.Junior User Guidebook Control(key and knob) area Fig. 4-2 Keys Overview 1、Menu option setting: F1~F5 2、Switch Switch includes two keys and one knob. Press “OSC/LA” to switch between DSO and For DSO “cursor” knob and “info” key are idle. But the “cursor” knob takes effect in magnifying or minificating the waveform after FFT operation when the mode is FFT.
  • Page 13 4.Junior User Guidebook are idle. “CH1 Vertical”, “CH2 Vertical” to adjust the M1, M2 position in Cursor menu when cursor display is on “CH1 Volts/Div”. 5、Horizontal control area with 2 knob and 1 key. For DSO, “Horizontal position” knob control trigger position, “Volts/Div” control time base, “Horizontal menu”...

  • Page 14: Digital Storage Oscilloscope

    4.Junior User Guidebook 4.2Digital Storage Oscilloscope User interface introduction Fig. 4-3 Illustrative Drawing of Display Interfaces 1. The Trigger State indicates the following information: Auto: The oscilloscope is under the Automatic mode and is collecting the waveform under the non-trigger state. Trig' d: The oscilloscope has already detected a trigger signal and is collecting the after-triggering information.
  • Page 15 4.Junior User Guidebook 5. This reading shows the time deviation between the horizontal trigger position and the window centre line, which is regarded as 0 in the window center. 6. It indicates the current function menu. 7. It indicates the operation options for the current function menu, which changes with the function menus.

  • Page 16: How To Implement The General Inspection

    4.Junior User Guidebook waveform of the CH1 channel. If the pointer is not displayed, it shows that the channel is not opened. 22. The positions of two purple dotted line cursors measurements. 23. The reading shows the frequency of the two channels. It is a 6 digits cymometer.Its measurement range of frequency is 2Hz to full bandwidth.

  • Page 17: How To Implement The Probe Compensation

    4.Junior User Guidebook 10X, Set the Switch in the Oscilloscope Probe as 10X and Connect the Oscilloscope with CH1 Channel. Align the slot in the probe with the plug in the CH1 connector BNC, and then tighten the probe with rotating it to the right side. Connect the probe tip and the ground clamp to the connector of the probe compensator.

  • Page 18: How To Set The Probe Attenuation Coefficient

    4.Junior User Guidebook Fig. 4-5 Displayed Wave Forms of the Probe Compensation 3. Repeat the steps mentioned if necessary. Fig. 4-6 Adjust Probe How to Set the Probe Attenuation Coefficient The probe has several attenuation coefficients, which will influence the vertical scale factor of the oscilloscope.

  • Page 19: How To Use The Probe Safely

    4.Junior User Guidebook Note: When the attenuation switch is set to 1X, the probe will limit the bandwidth of the oscilloscope in 5MHz. If it is needed to use the whole bandwidth of the oscilloscope, the switch must be set to 10X. How to Use the Probe Safely The safety guard ring around the probe body protects your finger against the electric shock, shown as Fig.
  • Page 20 4.Junior User Guidebook Fig. 4-9 Vertical Control Zone 1. Use the button “VERTICAL POSITION” knob to show the signal in the center of the waveform window. The “VERTICAL POSITION” knob functions the regulating of the vertical display position of the signal. Thus, when the “VERTICAL POSITION”...

  • Page 21: Introduction To The Horizontal System

    4.Junior User Guidebook Introduction to the Horizontal System Shown as Fig.4-10, there are a button and two knobs in the “HORIZONTAL CONTROLS”. The following practices will gradually direct you to be familiar with the setting of horizontal time base. Fig. 4-10 Horizontal Control Zone 1.
  • Page 22 4.Junior User Guidebook Fig.4-11 Trigger Control Zone 1. Press the “TRIG MENU” button and call out the trigger menu. With the operations of the 5 menu selection buttons, the trigger setting can be changed. 2. Use the “LEVEL” knob to change the trigger level setting. With the rotation of the “LEVEL”...

  • Page 23: Logic Analyzer

    4.Junior User Guidebook 4.3Logic Analyzer LA input connection Insert the plug of OL-16 LA module 50P into the LA signal input on front panel and fix two screw. Then 16 channel clamp of OL-16 LA connect to target signal and ready for measurement User interface introduction Fig.4-12：User interface of logic analyzer...

  • Page 24: How To Acquire Data

    4.Junior User Guidebook detected and wait for sample finished. “STOP” for sampling finished。 12、Value indicate current time base。 13、Info windows: different operation display different info。 14、Value display current filter modulus setting。 15、Value display current sample rate setting。 16、Two purple lines for cursor 1 and cursor 2 in cursor measurement 17、Percentage value indicate trigger position for next sampling in storage area。...

  • Page 25: Display Systems

    4.Junior User Guidebook Display systems We need only three channels as what we measure is 3 signals. And other channel and bus can be off. In this way the display resolution in using channel will be increased. Display system mainly to set on/off for measure channel. We use CH00、CH01、 CH02 as measure channel correspond to signal enable, clock, data accordingly.

  • Page 26: Trigger System

    4.Junior User Guidebook Fig.4-14 Fig. 4-15 Trigger system LA is same as DSO and need to make trigger to synchronize data. The trigger system mainly to set trigger sources, trigger mode and trigger position. We make CH00 as trigger source and trigger mode as falling edge, trigger position in 50%.

  • Page 27: Threshold Voltage System

    4.Junior User Guidebook Fig. 4-16 Threshold voltage system Threshold voltage system is to set high/low of the trigger voltage. The system already fixed the setting for normal logic voltage as CMOS, LVMOS etc. And you can set any trigger voltage using custom setting. The signal voltage is 3.3V and we set threshold voltage as “LVCMO3.3/1.7V”...

  • Page 28: Sampling System

    4.Junior User Guidebook Sampling system The waveform accuracy reverts from sample data depend on sample rate for measured signals. The waveform reverted in LA is referring to the sample signals storage in the memory. The recorded data will display in error if the sample rate is too lower. Below figures explains how sample rate influence the waveform recorded in LA.
  • Page 29 4.Junior User Guidebook Fig. 4-19...

  • Page 30: Advanced User Guidebook

    5.Advanced User Guidebook 5.Advanced User Guidebook Up till now, you have already been familiar with the initial operations of the functions of the function areas, buttons and knobs in the front panel of the MSO series oscilloscope. Based the introduction of the previous Chapter, the user should have an intimate knowledge of the determination of the change of the oscilloscope setting through observing the status bar.

  • Page 31: Digital Storage Oscilloscope

    5.Advanced User Guidebook How to set Utility It is recommended that you read this chapter carefully to get acquainted the various measurement functions and other operation methods of the MSO series oscilloscope. 5.1Digital Storage Oscilloscope How to Set the Vertical System The VERTICAL CONTROLS includes three menu buttons such as CH1 MENU, CH2 MENU and MATH MENU, and four knobs such as VERTICA POSITION, VOLTS/DIV (one group for each of the two channels).
  • Page 32 5.Advanced User Guidebook from input signal. See Fig.5-2. Press F1 again to set “DC” mode, both AC and DC components get passed. See Fig.5-3. The wave forms are shown as Fig.5-2 and Fig.5-3. Fig. 5-2 AC Coupling Oscillogram Fig. 5-3 DC Coupling Oscillogram Setting the“Band Limit”...
  • Page 33 5.Advanced User Guidebook Taking the Channel 1 for example, the operation steps are shown as below: (1). Press the CH1 MENU button and call out the CH1 SETUP menu. (2). Press the F3 menu selection button and select the Channel as OFF, with Channel 1 switched off.
  • Page 34 5.Advanced User Guidebook Fig. 5-5 Regulation of the Attenuation Ratio of the Probe A List of the Attenuation Coefficient of Probes and the Corresponding Menu Settings. Attenuation Coefficient of the Probe Corresponding Menu Setting 10:1 100:1 100X 1000:1 1000X Setting of Wave Form Inverted Wave form inverted: the displayed signal is turned 180 degrees against the phase of the earth potential.

  • Page 35: Implementation Of Mathematical Manipulation Function

    5.Advanced User Guidebook Implementation of Mathematical Manipulation Function The Mathematical Manipulation function is used to show the results of the additive，multiplication, division and subtraction operations between Channel 1 and Channel 2, and the FFT operation of CH1 or CH2 . The corresponding FCL (Functional Capabilities List) of the Wave Form Calculation Setting...
  • Page 36 5.Advanced User Guidebook Function Menu Setting Instruction Turn on FFT function. Turn off FFT function. DO FFT on Channe l Source DO FFT on Channe 2 Rectangle Blackman Window Type of window for FFT. Hanning Hamming Display in dB Format Vrms Display in Vrms multiple *1...
  • Page 37 5.Advanced User Guidebook to select the best window. Type Description Window This is the best type of window for resolving frequencies that are very close to the same value but worst for accurately measuring the amplitude of those frequencies. It is the best type for measuring the frequency spectrum of nonrepetitive signals and measuring frequency components near DC.
  • Page 38 5.Advanced User Guidebook Fig.5-9. Blackman window Fig.5-10 Hamming window Fig.5-11. Rectangle window...
  • Page 39 5.Advanced User Guidebook Fig.5-12 Hanning window Quick Tips If desired, use the zoom feature to magnify the FFT waveform. Use the default dBV RMS scale to see a detailed view of multiple frequencies, even if they have very different amplitudes. Use the linear RMS scale to see an overall view of how all frequencies compare to each other.

  • Page 40: Application Of Vertical Position And Volts/Div Knobs

    5.Advanced User Guidebook Application of VERTICAL POSITION and VOLTS/DIV Knobs 1. The .VERTIVAL POSITION knob is used to adjust the vertical positions of the wave forms of all Channels (including those resulted from the mathematical operation). The analytic resolution of this control knob changes with the vertical division. 2.

  • Page 41: Main Time Base

    5.Advanced User Guidebook Function Menu Setting Description The setting of the horizontal main time Main Time Base base is used to display the wave form. A window area is defined by two Set Window cursors. The defined window area for display is Zone Window expanded to the full screen.
  • Page 42 5.Advanced User Guidebook Fig. 5-16 Window Setting Fig..5-17 Set Window disable under FFT mode Zone Window Press the F3 menu selection button and choose Zone Window. As a result, the window area defined by two cursors will be expanded to the full screen size (see Fig. 5-18).

  • Page 43: How To Set Trigger System

    5.Advanced User Guidebook Fig. 5-18 Zone Window How to set trigger system When the oscilloscope begins to collect the data and display the wave form depends on a trigger. Once it is set correctly, the trigger can transfer the unstable display into a meaningful wave form.

  • Page 44: Single Trigger

    5.Advanced User Guidebook The Single Trigger and Alternate Trigger menus are described respectively as follows: Single trigger Single trigger has four modes: edge trigger, video trigger, pulse trigger and slope trigger . Edge Trigger: It happens when the trigger input passes through a given level along the set direction.

  • Page 45: Video Trigger

    5.Advanced User Guidebook Block the direct current component. Unblock all components. Block the high-frequency signal and only unblock the Coupling low-frequency component. Block the low-frequency signal and only unblock the high -frequency component. 100ns～ Set interval by using TRIG LEVEL control, value range from Holdoff 100ns～10s.

  • Page 46: Pulse Width Trigger

    5.Advanced User Guidebook Pulse Width Trigger Pulse trigger occurs according to the width of pulse. The abnormal signals can be detected through setting up the pulse width condition. Fig. 5-21 The Pulse Width Trigger Menu is shown as Fig. 5-21 Pulse Width Trigger menu Pulse Width Trigger menu list MENU SETTING...

  • Page 47: Slope Trigger

    5.Advanced User Guidebook Slope Trigger Slope trigger sets the oscilloscope as the positive/negative slope trigger within the specified time. Fig. 5-22 The Slope Trigger Menu is shown as Fig. 5-22 Slope Trigger menu Slope Trigger menu list MENU SETTING INSTRUCTION Channel 1 as the trigger source.
  • Page 48 5.Advanced User Guidebook mode is used to observe two unrelated signals. You can choose different trigger modes for different channels. The options are as follows: edge, video, pulse or slope. Alternate trigger(Trigger mode: Edge) Alternate trigger(Trigger Type: Edge) Fig.5-23 Menu is shown as Fig.5-23 Alternate trigger(Trigger Type: Edge) Menu Alternate trigger(Trigger Type: Edge) list:...
  • Page 49 5.Advanced User Guidebook Fig.5-24 Alternate trigger(Trigger Type: video) Menu Alternate trigger(Trigger Type: video) list: Menu MENU SETTING INSTRUCTION Channel 1 as the trigger source. Channel 2 as the trigger source. Source Use external source. EXT/5 1/5 of the External Trigger Source for increasing range of level. Mode Video Trigger the time base on the line of input video signal.
  • Page 50 5.Advanced User Guidebook Alternate trigger(Trigger Type: Pulse) menu list MENU SETTING INSTRUCTION Channel 1 as the trigger source. Source Channel 2 as the trigger source. Mode Pulse (+pulse width less than ) (+pulse width more than ) when (+Pulse width equal to) To select pulse width condition (-Pulse width less than) (-Pulse width more than)
  • Page 51 5.Advanced User Guidebook Condition Rising Edge and less than. Rising Edge and equal to . Falling Edge and more than Negative pulse and less than Negative pulse and equal to Turn “TRIG LEVEL” knob to set slope time settings 24ns~10s Turn “TRIG LEVEL”...

  • Page 52: How To Operate The Function Menu

    5.Advanced User Guidebook Normal: The Normal mode allows the oscilloscope to acquire a waveform only when it is triggered. If no trigger occurs, the oscilloscope keeps waiting, and the previous waveform, if any, will remain on the display. Single: In Single mode, after pressing the RUN/STOP key, the oscilloscope waits for trigger.
  • Page 53 5.Advanced User Guidebook waveform. You can see the “burrs” on the falling edge of signal is detected with noise when it is turned on. Fig.5-28 Peak Detect mode Fig.5-29 Common ACQU Mode display, in which no burr can be detected. Fig.5-30 Average on with reduced noise on waveform...

  • Page 54: How To Set The Display System

    5.Advanced User Guidebook How to Set the Display System Push down the DISPLAY button and the menu displayed in the screen is shown as Fig.5- Function Setting Description Menu Vectors The adjacent sampling points are joined by vector Type form. Dots Only displaying sampling points captured..
  • Page 55 5.Advanced User Guidebook Fig.5-33 Display in Dots form Persist When the Persist function is used, the persistence display effect of the picture tube oscilloscope can be simulated: the reserved original data is displayed in fade color and the new data is in bright color. With the F2 menu selection button, different persistence time can be chosen: 1sec, 2sec, 5sec, Infinite and Closed.
  • Page 56 5.Advanced User Guidebook The Vertical VOLTS/DIV and the Vertical POSITION knobs of Channel 1are used to set the horizontal scale and position. The Vertical VOLTS/DIV and the Vertical POSITION knobs of Channel 2 are used to set the vertical scale and position continuously. Notes: The following functions would be disabled when XY Format is set.

  • Page 57: How To Save And Recall A Wave Form

    5.Advanced User Guidebook How to Save and Recall a Wave Form Press the SAVE/RCL button, you can save and call out the waveforms in the instrument. The menu displayed in the screen is shown as Fig.5-37. Function Menu Setting Description Source of wave form to be saved.
  • Page 58 5.Advanced User Guidebook Fig.5-38 Wave Saving Fig.5-39 FFT wave saving...

  • Page 59: How To Implement The Auxiliary System Function Setting

    5.Advanced User Guidebook How to Implement the Auxiliary System Function Setting Press the UNTILITY button and the menu is displayed in the screen as Fig.5-40. Function Menu Setting Description System Status Display the system function menu. Recall Factory Call out the factory settings. Do Self Cal Carry out the self-calibration procedure.

  • Page 60: How To Implement The Automatic Measurement

    5.Advanced User Guidebook Function Menu Setting Description Horizontal Show the horizontal parameter of the channel. Vertical Show the vertical parameter of the channel. Trigger Show the parameters of the trigger system. Misc Show the serial number and edition number. Fig.5-41 SYS STAT Menu After entering into the SYS STAT menu, choose the corresponding function, with the corresponding parameters shown in the screen.
  • Page 61 5.Advanced User Guidebook Overshoot, Preshoot, RiseTime, Fall Time, +Width, -Width, +Duty, -Duty, DelayA B and DelayA B . To use Measure, simply Press Measure button would activate MEASURE menu. Press F1 next to Source/Type to allow you to switch between Source and Type. Source is the signal from the channel which user to carry out a measurement, and Type is one of the 20 measurements user wants Oscilloscope to work out.
  • Page 62 5.Advanced User Guidebook Average The arithmetic mean over the entire waveform. Vrms The true Root Mean Square voltage over the entire waveform. Time that the leading edge of the first pulse in the waveform takes to rise Rise Time from 10% to 90% of its amplitude. Time that the falling edge of the first pulse in the waveform takes to fall Fall Time from 90% to 10% of its amplitude.

  • Page 63: How To Implement The Cursor Measurement

    5.Advanced User Guidebook Fig.5-44) Fig.5-44 Automatic Measurement How to Implement the Cursor Measurement Press the CURSOR button to display the cursor measurement function menu (CURS MEAS) in the screen. the Cursor Measurement for normal model: The cursor measurement includes Voltage Measurement and Time Measurement at normal model, shown as Fig.5-45.
  • Page 64 5.Advanced User Guidebook Delta Absolution value of the difference between two cursors. Reading of Cursor 1. Time: read time from start position-the horizontal trigger Cursor 1 point (0s). Voltage: read voltage from ground level (0 v). Read the position of Cursor 1 (the Time is read with Cursor 2 reference to the horizontal trigger position and the Voltage is to the ground point).
  • Page 65 5.Advanced User Guidebook Fig.5-47 Wave Form of Cursor Measurement the Cursor Measurement for FFT model: Press the CURSOR button to display the cursor measurement function menu (CURS MEAS) in the screen, which includes Vamp Measurement and Freq Measurement at the mode of FFT, shown as Fig.5-48.
  • Page 66 5.Advanced User Guidebook When carrying out the cursor measurement, the position of Cursor 1 can be adjusted with the CURSOR1 (VERTICAL POSITION) knob of Channel 1, and that of Cursor 2 can be adjusted with the CURSOR2 (VERTICAL POSITION) knob of Channel 2. Perform the following operation steps for the Vamp cursor measurement : 1.

  • Page 67: How To Use Autoscale

    5.Advanced User Guidebook Fig.5-50 wave of Freq cursor measurement How to use Autoscale The function is applied to follow-up signals automatically even if the signals change at any time. Autoscale enables the instrument to set up trigger mode, voltage division and time scale automatically according to the type, amplitude and frequency of the signals.

  • Page 68: How To Use Executive Buttons

    5.Advanced User Guidebook : Multi cycles mode single cycle mode Fig.5-51 Fig.5-52 Note: Things you should be ware when turning on Autoscale. 1. The symbol is flickering on the top left corner of screen every half second. 2. The oscilloscope is setting Triggers automatically for the incoming signal based on its best approach.
  • Page 69 5.Advanced User Guidebook Horizontal Sale Adjust to the proper division Trigger Type Current Trigger Source Show the minimum number of channels. Trigger Coupling Current Trigger Slope Current Trigger Level Mid-point Setting Trigger Mode Auto Display Format RUN/STOP Enable or disable sampling on input signals. Notes: When there is no sampling at STOP state, user is still able to change vertical division or time base for waveform within a certain range.

  • Page 70: Logic Analyzer

    5.Advanced User Guidebook 5.2Logic analyzer How to set sampling system Sampling system is to set sample rate, storage depth and filter. Different sampling setting will result in different measure results. In the same storage depth, the higher sample rate set, the shorter the continuance time for signal will be. If the sample rate set too low, narrower pulse signal may get lost.
  • Page 71 5.Advanced User Guidebook Listing of corresponding continuance time to different sample rate and storage depth: Sample Continuance Sample Continuance Storage depth Storage depth rate time rate time Low memory 160 ms 1GHz Low memory 16us 100kHz General 2.56 s Deep memory 40 s Low memory 320 ms...

  • Page 72: How To Set Trigger System

    5.Advanced User Guidebook 3. Press “F2” till storage depth display as “Deep Memory”. 4. Press “F3” till digital filter display as “None”. Then sample system setting finished (refer to Fig.5-53 Fig.5-53: Sampling setting How to set trigger system Trigger system including “Trigger level” adjust knob, “Trigger menu”, “SET 50%”, “Set to Zero”.
  • Page 73 5.Advanced User Guidebook Function Settings Instructions Signal choice CH00～CH0F CH00-CH0F can be set as trigger resource Rising Trigger on the rising edge. Slope Falling Trigger on the falling edge. Either Trigger either on rising edge or falling edge. For example: to measure a 3 lines SPI signal which includes enable, clock and data. The data get into effective when enable is low voltage.
  • Page 74 5.Advanced User Guidebook ：Bus trigger menu Fig.5-56 Bus trigger menu as below: Function Setting Instruction Source BUS0～BUS3 BUS0 to BUS3 can be set as trigger source 0x0000～0xffff Can be set discretionarily between 0x0000 and 0xffff （HEX） （HEX） Code 0～65535 or between 0 and 65535 (DEC）according to the bus and code setting.
  • Page 75 5.Advanced User Guidebook ：Bus trigger Fig.5-57 3. Pattern trigger: Set channel as signal source and make high/low voltage for channel as trigger condition combination to get trigger (refer to Fig.5-58 ：Pattern trigger menu Fig.5-58 Pattern trigger menu as below: Function Setting Instruction CH00～CH0F...
  • Page 76 5.Advanced User Guidebook Don’t Care No trigger occurs. CH00～CH0F Trigger occur when signal on the low level High Trigger occurs when signal on the high level. To observe the 16 channel data need to know how data changed before and after when "BIT0-BIT3"...
  • Page 77 5.Advanced User Guidebook ：Sequential queue trigger Fig.5-60 Sequential queue trigger function as below： Function Setting Instruction Source BUS0～BUS3 Select the trigger source from BUS0~BUS3 0x0000～0xffff Can be set discretionarily between 0x0000 and 0xffff （HEX） （HEX） Code 0～65535 or between 0 and 65535 (DEC）according to the bus and code setting.
  • Page 78 5.Advanced User Guidebook Then sequential queue trigger setting finished (refer to ) and data ready for Fig.5-61 acquisition. ：Sequential queue trigger Fig.5-61 5. Distributed queue trigger: make BUS as trigger source and dis-continuous setting data in BUS as trigger condition to generate trigger and also can set 8 data at the same time. Distributed queue trigger menu refer as Fig.5-62 ：Distributed queue trigger menu...
  • Page 79 5.Advanced User Guidebook （DEC） Add the code type to the queue Delete Delete the code type from the queue Setting operation are same as sequential trigger setting. ：Distributed queue trigger Fig.5-63 6、Data width queue trigger: Make BUS as trigger source and continuous duration in BUS as trigger condition to generate trigger.

  • Page 80: How To Set Threshold

    5.Advanced User Guidebook The duration width can be set from 10ns (1-2-5) to Duration 10ns～50s 10.00us (1-2-5) according to the sampling rate from high to low. >= Trigger occur on condition that the bus value is equal to the code type and the duration is more than or equal to the duration width.
  • Page 81 5.Advanced User Guidebook measurement. For example, if measure signal is LVCMOS1.8V and set threshold as “CMOS/ （ 2.5V） ” then all the measurement data will become “0”. Threshold setting menu refer to Fig.5-66 : Threshold setting menu Fig.5-66 Threshold menu function as below Function Setting Instruction...

  • Page 82: How To Set Display System

    5.Advanced User Guidebook Threshold voltage setting finished (refer to Fig.5-67 Fig.5-67：Threshold custom setting How to set display system Display system is to set on/off for channel and BUS, also to adjust the contrast of panel display. Press “A(DISPLAY)” and panel display as Fig.5-68 ：Display menu Fig.5-68...

  • Page 83: How To Set Bus

    5.Advanced User Guidebook BUS or Channel on display Bus or Channel off contrast Increase panel display contrast Increase contrast Decrease panel display contrast Decrease For example, display channel as CH00～CH03 and BUS as BUS0, other channels and BUS all off. Follow up below steps: 1、Press “A(DISPLAY)”...
  • Page 84 5.Advanced User Guidebook ：Bus menu Fig.5-70 BUS setting menu as below: Function Setting Instruction BUS0～BUS3 Choose BUS for operating CH0F～CH00 Choose any channel among CH00~CH0F Channel 1X111111 BUS channel complex indication: 1 for include; X 11111111 for exclude CH0F～ Include The bus selected includes this channel CH00 Exclude...

  • Page 85: How To Measure

    5.Advanced User Guidebook ：Bus setting Fig.5-71 How to measure Measurement can take auto measure for values of 4 BUS synchronously. Press “measure” and BUS value for current cursor position will display directly in measurement window. BUS0 include CH00～CH03，BUS1 include CH00～CH07，BUS2 include CH00～CH0B，BUS3 include CH00～CH0F。...
  • Page 86 5.Advanced User Guidebook display setting, threshold setting and trigger setting. And it is possible to save 10 groups of settings. Waveform storage and setting storage menu display as Fig.5-73 .：Storage menu Fig.5-73 Storage menu instruction as below: Function Setting Instruction Memory Waveform Waveform for storage or recall...

  • Page 87: How To Use Usb Flash Disk To Storage

    5.Advanced User Guidebook 4：Waveform saving Fig.5-7 How to use USB flash disk to storage  U se USB flash disk is to storage acquired data. Insert U disk into USB port, then press “B” key and you can save the waveform data into the U disk. There is two formats available for choice: Vector format and Bitmap which the corresponding name will be WAVE1.BIN 、...
  • Page 88 5.Advanced User Guidebook 5：Search trigger position Fig.5-7 2. Search specified value in BUS Searching BUS menu as below: Function Setting Instruction BUS0～BUS3 Choose searching BUS 0x0000～0xffff Can be set discretionarily between 0x0000 and Code type 0xffff （HEX）or between 0 and 65535 (DEC） （HEX）...
  • Page 89 5.Advanced User Guidebook .：Search Bus Fig.5-76 3. Searching target is pattern: pattern refers to the complex of different channel according to high/low voltage or irrelated condition. Pattern type searching menu as below Function Setting Instruction CH0F～CH00 Select the channel to set the signal pattern. CH SEL x0100000 16 channel pattern indication.

  • Page 90: How To Review Setting Info

    5.Advanced User Guidebook .：Search Code type Fig.5-77 How to review setting info You can choose system information display to be “On” or “OFF” by press “INFO” key. System information includes all settings for acquired waveform and next acquisition. .：System info Fig.5-78 How to use cursor measurement You can measure manually the time difference between two either data in display or...
  • Page 91 5.Advanced User Guidebook ：Cursor measurement menu Fig.5-79 Cursor measurement time menu as below: Function Setting Instruction Time The time difference between two cursors. Increment Frequency The frequency difference between two cursors. Cursor 1 Time The time display of cursor 1 corresponds to trigger position. Cursor 2 Time The time display of cursor 2 corresponds to trigger position.
  • Page 92 5.Advanced User Guidebook ：Cursor time measurement Fig.5-80 Cursor measure position menu as below: Function Display Instruction M1-M2 Position The position difference between two cursors in memory area. Cursor 1 Position The position of cursor 1 corresponds to trigger in memory area. Cursor 2 Position The position of cursor 2 corresponds to trigger in memory area.

  • Page 93: How To Set Utility

    5.Advanced User Guidebook ：Cursor position measurement Fig.5-81 How to set Utility Utility function includes recall factory, Language, Carry. Utility menu as below Function Setting Instruction Recall Default setting for LA factory Chinese Support multi-languages, choose you preferred Language English system language. …...

  • Page 94: Demonstration

    6.Demonstration 6.Demonstration Notice: The following is to take MSO7102T model as an example. Example 1: Measurement of Simple Signals The purpose of this example is to measure the frequency and peak-to-peak value of a given signal. Step1 Go to CH1 menu and Probe menu to set attenuation coefficient as 10X, turn the switch on the Probe to 10X as well.

  • Page 95: Example 2: Working Out The Gain Of The Amplifier In The Metering Circuit

    6.Demonstration Example 2: Working out the Gain of the Amplifier in the Metering Circuit The purpose of this example is to work out the Gain of an Amplifier in a Metering Circuit. First we use Oscilloscope to measure the amplitude of input signal and output signal from the circuit, then to work out the Gain by using given formulas.

  • Page 96: Example 3: Capture The Single Signal

    6.Demonstration Fig.6-2 Wave Form of Gain Measurement Example 3: Capture the Single Signal The digital storage oscilloscope takes the lead in providing the convenience capturing of such non-periodic signals as pulse and burr, etc. If you intent to capture a single signal, you can not set the trigger level and the trigger edge unless you have particular priori knowledge of this signal.

  • Page 97: Example 4: Analyze The Details Of A Signal

    6.Demonstration the signal in conformity with the trigger conditions. If a signal reaches to the set trigger level, one sampling will be made and then displayed in the screen. With this function, any random occurrence can be captured easily. Taking the burst burr of larger amplitude for example, set the trigger level to the value just greater than the normal signal level, and then presses the RUN/STOP button and waits.
  • Page 98 6.Demonstration Fig.6-4 Signal with Noises Reduce the effect of noises from your signal When focusing on signal itself, the important thing is to reduce the noise level as lower as possible, this would enable user to have more details about the signal. The Average function offered by our Oscilloscope can help you to achieve this Here are the steps for how to enable Average function.

  • Page 99: Example 5: Examine The Phase Shift Between Two Related Signals

    6.Demonstration Example 5: Examine the Phase shift between two related signals X-Y mode is a very useful when examining the Phase shift of two related signals. This example takes you step by step to check out the phase change of the signal after it passes a specified circuit.

  • Page 100: Example 6: Video Signal Trigger

    6.Demonstration Example 6: Video Signal Trigger Observe the video circuit of a television, apply the video trigger and obtain the stable video output signal display. Video Field Trigger For the trigger in the video field, carry out operations according to the following steps: 1.

  • Page 101: F.a.q

    7.F.A.Q 7.F.A.Q 1. In the case of that the oscilloscope is still in the black-screen state without any display after the power is switch on, implement the following fault treatment procedure. Check whether the power connection is connected properly. Check whether the power switch is pushed down to the designated position. Restart the instrument after complete the checks above.

  • Page 102: Technical Specifications

    8. Technical Specifications 8. Technical Specifications Unless otherwise specified, the technical specifications applied are applicable to the probe with the attenuation switch setting 10X and the MSO series digital oscilloscope. Only if the oscilloscope fulfill the following two conditions at first, can these specification standards be reached.
  • Page 103 8. Technical Specifications 1S/s~1GS/s half channel*, 1S/s~500MS/s each channel ----MSO7102TD Sampling rate range 1S/s~2GS/s half channel*, 1S/s~1G S/s each channel ----MSO8102T, MSO8202T Interpolation （sin x）/x Record length 2M points on each channel 2ns/div～100s/div, step by 1～2～5 Horizontal System ----MSO7102TD, MSO8102T Scanning speed（S/div）...
  • Page 104 8. Technical Specifications DC accuracy ±3% Average﹥16: ±(3% rdg + 0.05 div) for DC accuracy (average) △ Cursor V and △ between cursors △ Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Automatic Period, Rise Time, Fall Time, DelayA→B , DelayA→B , +Width,...

  • Page 105: Logic Analyzer

    8. Technical Specifications negative pulse：＞、＜、＝ Pulse Width 24ns～10s range Support standard NTSC、PAL and SECAM Modulation broadcast systems Video Trigger Line number 1-525 (NTSC) and 1-625 (PAL/SECAM) range Positive pulse：＞、＜、＝ Trigger condition Slope Trigger negative pulse：＞、＜、＝ Time setting 24ns～10s Trigger on CH1 Edge, Pulse, Video, Slope Alternate Trigger Trigger on CH2...

  • Page 106: General Technical Specifications

    8. Technical Specifications General Technical Specifications Display Display Type 8” Colored LCD (Liquid Crystal Display) Display Resolution 640 (Horizontal) × 480 (Vertical) Pixels Display Colors 65536 colors, TFT screen Output of the Probe Compensator Output Voltage About 5V, with the Peak-to-Peak value equal to or greater (Typical ) than 1MΩ...

  • Page 107: Appendix

    9. Appendix 9. Appendix Appendix A: Enclosure Standard Accessories: Passive probe: 2, 1.2 m, 1:1 (10:1) OL-16 LA measurement module CD: x 1 (PC link application software) RS232 data line or USB data line Power line: one, up to the standards of the country in which it is used. User Manual: One Options: Battery...

  • Page 108: Appendix C: Battery Using Guide

    9. Appendix Appendix C: Battery Using Guide Charging the oscilloscope The lithium battery maybe not be charged when delivery. Please charge the battery for 12 hours to make sure enough power to supply to oscilloscope. The battery can supply power for 4 hours after being charged completely.
