WARNING:
Do not connect to power supply
until assembly is complete. Failure to comply could
result in accidental starting and possible serious
personal injury.
As mentioned previously, your saw has been factory as-
sembled and adjusted. The miter lock handle, dust guide,
and blade are the only parts that have to be installed.

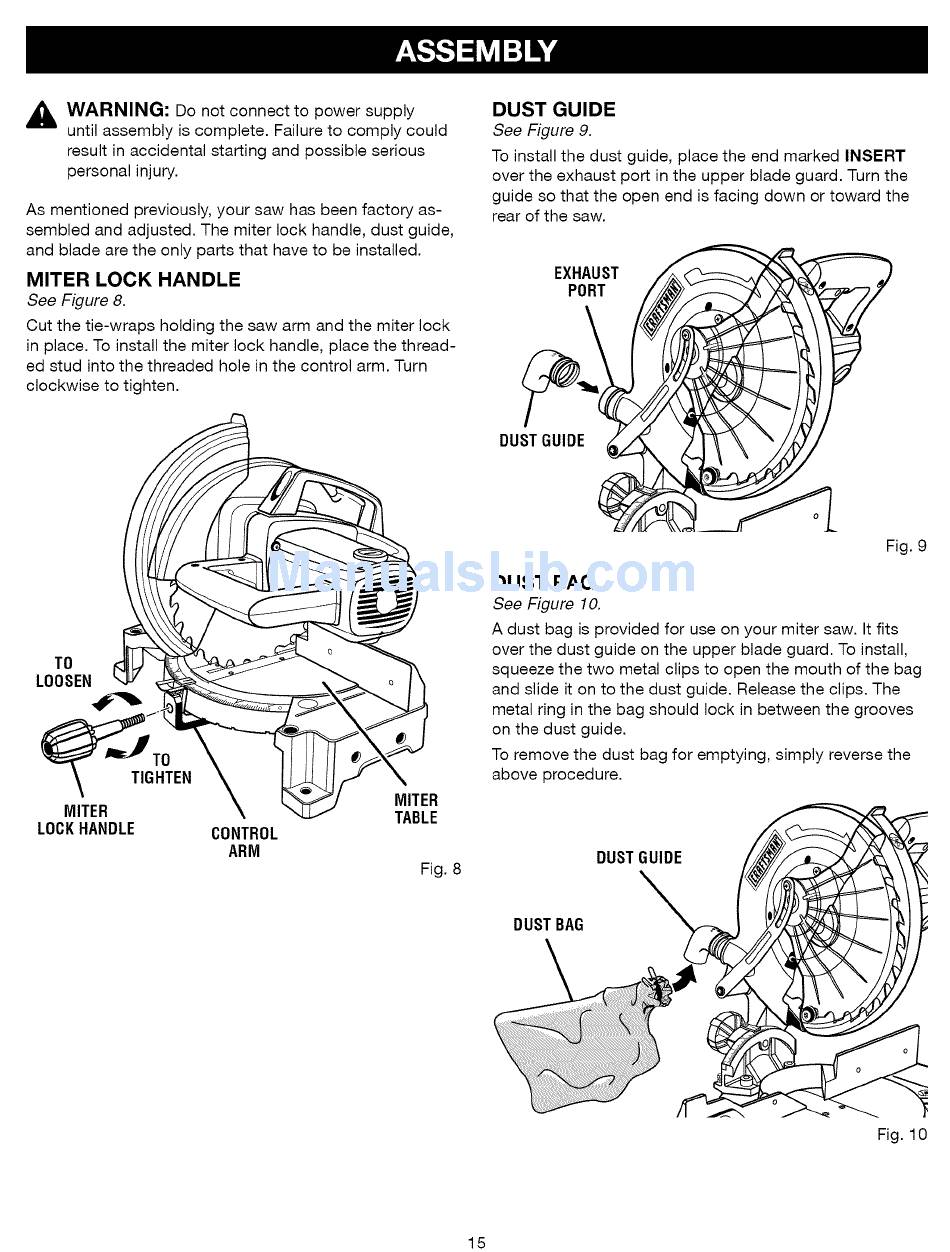

MITER
LOCK HANDLE
See Figure 8.
Cut the tie-wraps holding the saw arm and the miter lock
in place. To install the miter lock handle, place the thread-
ed stud into the threaded hole in the control arm. Turn
clockwise to tighten.
DUST GUIDE
See Figure 9.
To install the dust guide, place the end marked INSERT
over the exhaust port in the upper blade guard. Turn the
guide so that the open end is facing down or toward the
rear of the saw.
EXHAUST
PORT
DUST GUIDE
TO
LOOSEN
TO
TIGHTEN
MITER
LOCKHANDLE
CONTROL
ARM
MITER
TABLE
Fig. 8
Fig. 9
DUST BAG
See Figure 10.
A dust bag is provided for use on your miter saw. It fits
over the dust guide on the upper blade guard. To install,
squeeze the two metal clips to open the mouth of the bag
and slide it on to the dust guide. Release the clips. The
metal ring in the bag should lock in between the grooves
on the dust guide.
To remove the dust bag for emptying, simply reverse the
above procedure.
DUSTGUIDE
DUSTBAG
Fig. 10
