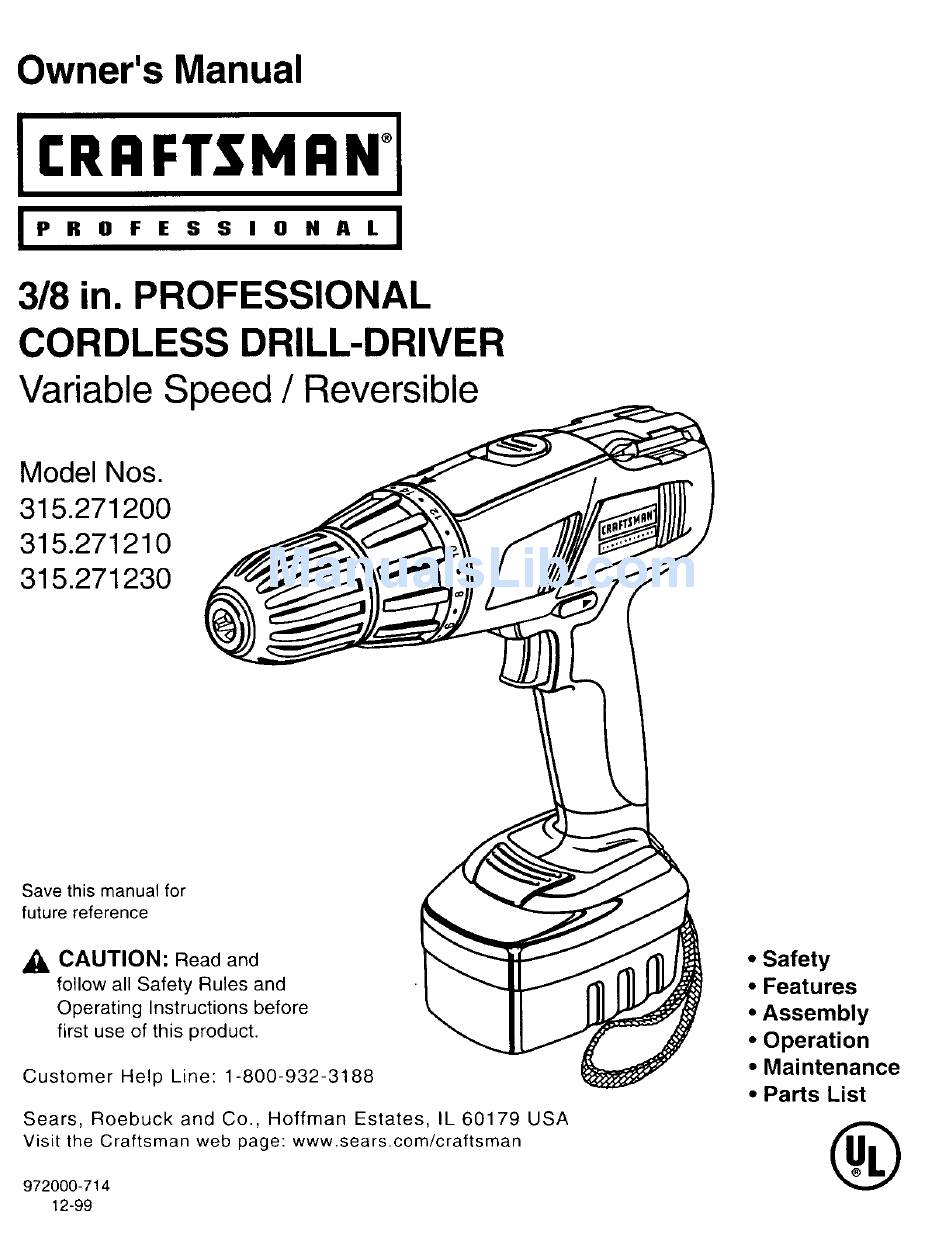

Owner's Manual
iPR
0 F E S S I 0 NAL
i
318 in. PROFESSIONAL
CORDLESS DRILL-DRIVER
Variable Speed / Reversible
Model Nos.
315.271200
315.271210
315.271230
Save this manual
for
future reference
CAUTION:
Read and
follow all Safety Rules and
Operating Instructions before
first use of this product.
Customer
Help Line:
1-800-932-3188
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
USA
Visit the Craftsman
web page: www.sears.com/craftsman
972000-714
12-99
• Safety
• Features
• Assembly
• Operation
• Maintenance
• Parts List
®

Advertisement

   Related Manuals for CRAFTSMAN 315.271200

   Summary of Contents for CRAFTSMAN 315.271200

  • Page 1

    Safety Rules and Operating Instructions before • Assembly first use of this product. • Operation • Maintenance Customer Help Line: 1-800-932-3188 • Parts List Sears, Roebuck and Co., Hoffman Estates, IL 60179 ® Visit the Craftsman web page: www.sears.com/craftsman 972000-714 12-99...

  • Page 2

    TABLE OF CONTENTS • General Safety Rules ..............................• Specific Safety Rules/Symbols ..........................• Features ..................................• Assembly ..................................• Operation ................................10-14 • Maintenance ................................• Accessories ................................. • Exploded View And Repair Parts List ......................... • Parts Ordering / Service .............................. Personal Safety WARNING:...

  • Page 3

    Tool Use and Care Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp • Use clamps or other practical way to secure and cutting edges are less likely to bind and are easier to support the workpiece to a stable platform.

  • Page 4

    c. That wire size is large enough for AC ampere Important Safety Instructions For Charger rating of charger as specified below: • Save these instructions. This manual contains Cord Length (Feet) 100' important safety and operating instructions for battery charger part number 9-11040. Following this Cord Size (AWG) rule will reduce the risk of electric shock, fire, or Note: AWG = American Wire Gage...

  • Page 5

    SYMBOLS SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Current Amperes Hertz Frequency (cycles per second) Minutes Time Alternating Current Type or a characteristic of current Direct Current Type or a characteristic of current No Load Speed Rotational speed, at no load •..Imin Revolutions or Reciprocation Per Minute Revolutions, strokes,...

  • Page 6

    PRODUCT SPECIFICATIONS: DRILL-DRIVER 315.271200 315.271210 315.271230 Chuck 3/8 in. Keyless 3/8 in. Keyless 3/8 in. Keyless Motor DC Motor 9.6 Volt DC Motor 12 Volt DC Motor 14.4 Volt Gear Train Two Speed Two Speed Two Speed Switch Variable Speed Variable Speed Variable Speed No Load Speed...

  • Page 7

    TWO SPEED LEVEL GEARTRAIN(HI-LO) KEYLESS CHUCK BIT STORAGE AREA YELLOWLIGHT"ON" ANDRED LIGHTFLASHINGINDICATES DEFECTIVEBATTERYPACK DIRECTIONOF ROTATION SELECTOR (FORWARD/REVERSE) TORQUE CHARGER ADJUSTMENT SWITCH RING TRIGGER REDLIGHT "ON" INDICATES BATTERY FASTCHARGINGMODE PACK GREENLIGHT "ON" INDICATESFULLY CHARGEDANDSLOWCHARGING TO MAINTAINBATTERYPACK SCREWDRIVER BITS WRISTSTRAP Fig. 1 CHARGER See Figure 2.

  • Page 8

    INSTALLING BITS ,_WARNING: Do not insert drill bit into chuck jaws See Figure 3. and tighten as shown in Figure 4. This could cause • Lock the switch trigger by placing the direction of drill bit to be thrown from drill resulting in possible rotation selector in center position.

  • Page 9

    TO ATTACH BATTERY PACK TO DRILL TO REMOVE BATTERY PACK FROM DRILL See Figure 6. See Figure 5. • Lock the switch trigger by placing the direction of Note: Battery pack is shipped in a low charge condition. Therefore, it must be charged prior to use. Refer to page 10, rotation selector in center position.

  • Page 10

    If after one hour red light is still flashing, this indicates a WARNING: Always wear safety goggles or safety defective battery pack and should be replaced. glasses with side shields when operating tools. Failure to do so could result in objects being thrown Green light on indicates battery pack is fully charged into your eyes, resulting in possible serious injury.

  • Page 11

    SWITCH LOCK SWITCH See Figure 8. See Figure 10. To turn your drill ON, depress the switch trigger. To turn it The switch trigger can be locked in the OFF position. This OFF, release the switch trigger. feature can be used to prevent the possibility of accidental starting when not in use.

  • Page 12

    KEYLESSCHUCK ADJUSTING RING TO DECREASE See Figure 11. TORQUE A keyless chuck has been provided with your drill to allow for easy installation and removal of bits. As the name implies, you can hand tighten or release drill bits in the chuck jaws.

  • Page 13

    DRILLING APPLICATIONS See Figure 15. (Use drill-driver only for the purpose listed below) • Drilling in wood. LEVEL • Drilling in ceramics, plastics, fiberglass, and lami- nates. • Drilling in both hard and soft metals. • Using driving accessories, such as driving screws with screwdriver bits.

  • Page 14

    Insert allen wrench in chuck and tighten chuck jaws CHUCK REMOVAL securely, Tap sharply with a mallet in a counterclock- See Figures 16, 17, and 18. wise direction. This will loosen chuck on the spindle, It The chuck must be removed in order to use some can now be unscrewed by hand.

  • Page 15

    Do not abuse power tools. Abusive practices can WARNING: When servicing use only identical Craftsman replacement parts. Use of any other damage tool as well as workpiece. parts may create a hazard or cause product damage. Only the parts shown on parts list, page 17, are intended to be repaired or replaced by the customer.

  • Page 16

    Thefollowing recommended accessories arecurrently available atSearsRetail S tores. • 17-Pc. P owerScrewdriver/Nutdriver SetandCase • 6-Pc.ExtraLength Mageite Power B itSet • 30-Pc.Power S crewdriver/Nutdriver SetandCase • HighSpeed Bits(ForWoodor Metal)..3/4 in. Max. WARNING: The use of attachments or accessories not listed might be hazardous. WARNING: The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage.

  • Page 17

    NOS. 315.271200 / 315.271210 / 315.271230 in all correspondence regarding your CRAFTSMAN 3/8 in. PROFESSIONAL CORDLESS DRILL-DRIVER The model number will be found on a plate attached to the motor housing. Always mention the model number or when ordering repair parts.

  • Page 18

    In U.S.A. or Canada for in-home major brand repair service: Call 24 hours a day, 7 days a week 1-800-4-MY-HOME sM(1-800-469-4663) Para pedir servicio de reparacibn a domicilio - 1-800-676-5811 Au Canada pour tout le service ou les pieces - 1-800-469 4663 For the repair or replacement parts you need: Call 6 a.m.

This manual also for:

315.271210, 315.271230
