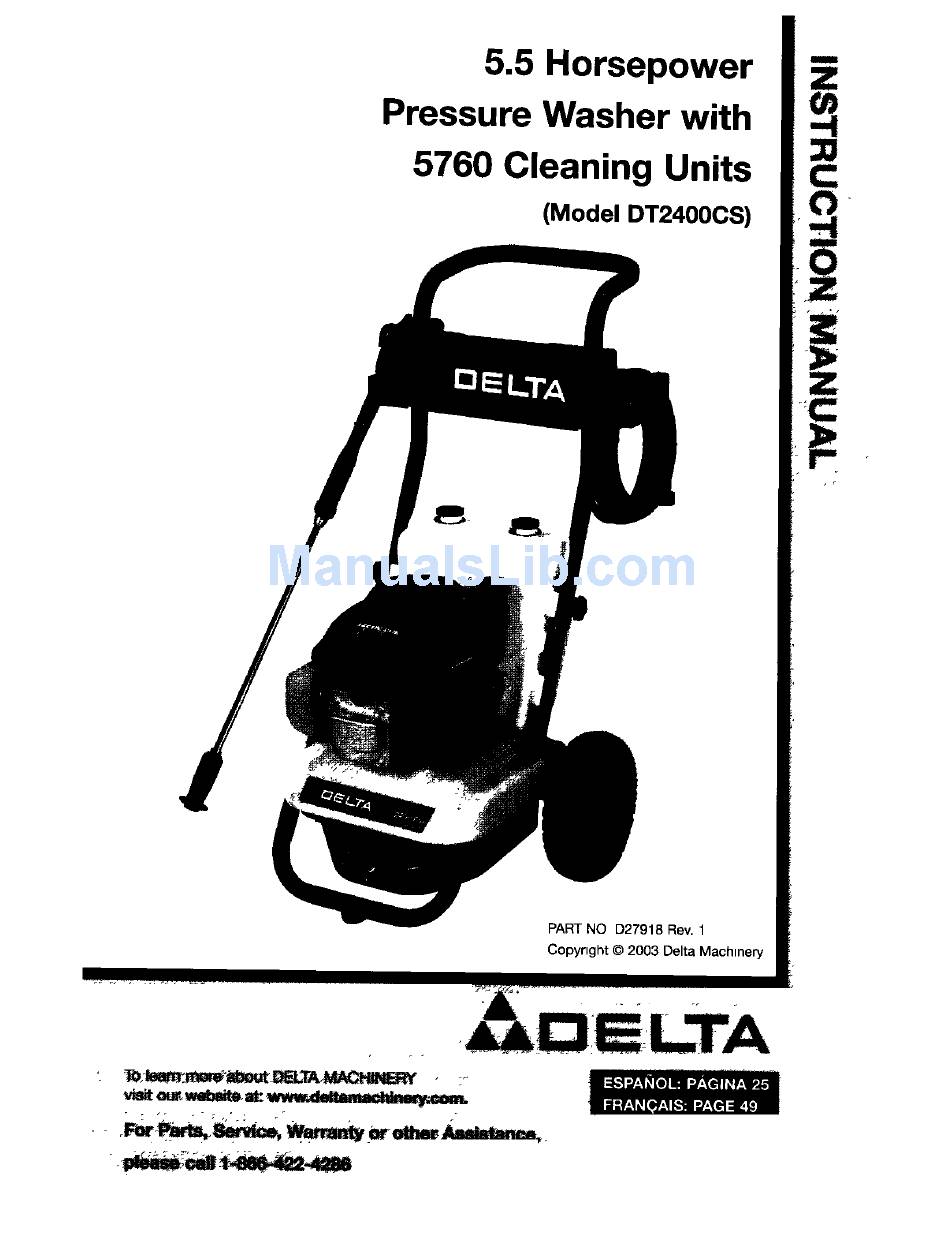

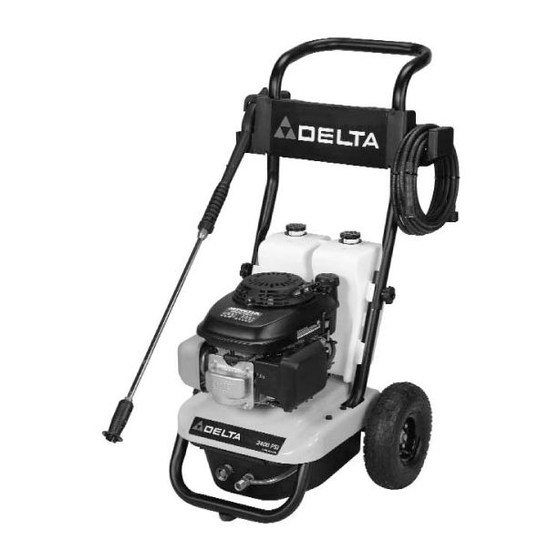

- Page 1 5.5 Horsepower Pressure Washer with 5760 Cleaning Units (Model DT2400CS) PART NO D27918 Rev. 1 CopyrLght © 20(33 Delta MachLnery...
- Page 2 SAFETY GUIDELINE/DEFINITIONS ..2 OPERATING INSTRUCTIONS ..11-17 CONSUMER SAFTEY INFORMATION...2 MAINTENANCE ........ 17-18 IMPORTANT SAFETY STORAGE ......... 19-20 INSTRUCTIONS ........3-6 TROUBLE SHOOTING GUIDE ..21-22 CONSUMER GENERAL AND SERVICE WARRANTY ..........INFORMATION ......... SPANISH ........... 23-44 CARTON CONTENTS ......7 ASSEMBLY INSTRUCTIONS ....
- Page 3 F_I_ Read Operation Manual. Do not operate equipment until you have read OperaUon Manual for Safety, Assembly, Operation, and Maintenance InstxucUons. READ AND SAVE THESE INSTRUCTIONS HAZARD RISK OF EXPLOSION OR FIRE WHAT CAN HAPPEN HOW TO PREVENT IT • Spilled gasoline and it's vapors can be- •...
- Page 4 HAZARD RISK OF INJURY OR PROPERTY DAMAGE WHEN TRANSPORTING OR STORING WHAT CAN HAPPEN HOW TO PREVENT IT = Fuel or oil can leak or spill and could * If preesurewasher is equipped with e fuel resultin fire or breathing hazard, serious shut*offvalve, turn the valve to the off injuryor death can result.
- Page 5 HAZARD RISK OF UNSAFE OPERATION WHAT CAN HAPPEN HOW TO PREVENT • Unsafe operation of your pressure washer • Do not use chlorine bleach or any other could lead to serious injury or death to corrosive compound. you or others. Become familiar with the operation and cony trois of the pressure washer.
- Page 6 HAZARD _RISK OF INJURY FROM SPRAY WHAT CAN HAPPEN HOW TO PREVENT IT • AJwayswearANSI approved7.87safety • High velocity fluidspray can cause glasses.Wear p rotective clothingto protect objects to break, propelling particlesat againstaccidentalspraying. high speed. • Never pointwand at,or spray people or , Ught 0r Unsecured objects can become animals.
- Page 7 Accessories Panel [++] Manual Engine F rame, Wheel Bagged Accessories Panel Handle Assembly, andDual Tank Cleaning System Knobs English/ Spanish/ French _ddle Bolts Operation Manual Chemical injector rinsing Nozzle Cleaning hose High Pressure Hose Bagged Pa_s Multi-Adjustable Spray Wand Spray Gun Engine Oil 7-ENG D27918...
- Page 8 Remove cleaning solution tanks from frame assembly. Slide tanks up and away from frame assembly. Place handle assembly onto frame and connect handle to frame. NOTE: Knobs are assembled to the outside of frame. Connect wand to gun. Tighten securely. D27918 8-ENG...
- Page 9 Attach high pressure hose to gun. Tighten securely. To Assemble Accessories Panel Remove top screws on handle assembly, Loosen bottom screws on handle assembly. Remove Loosen Place grooves in accessories panel assembly onto screws and slide panel assembly into place. Screws Place screws (removed earlier) into the top holes and secure...
- Page 10 Reinstall cleaning solution tanks. Tilt cleaning solution tanks toward engine, slide onto handles, and snap into place. Attach cleaning solution hose to barb fitting on control valve located at the rear of unit. Add engine oil (supplied) to engine. Refer to Engine Owners Manual supplied by engine manufacturer for correct procedure.
-
Page 11: Basic Elements Of A Pressure Washer
READ THIS OPERATION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Spray High .Pressure Engine Dual Tank Multi- Cleaning Adjustable... -
Page 12: Basic Elements Of Engine
BASIC ELEMENTS OF ENGINE Refer to the engine manual for location and operation of engine controls. Choke Control: Opens and closes carburetor choke valve Throttle Control Lever: Controls engine speed. Fuel Valve Lever: Opens/closes connection between fuel tank and carburetor. Starter Grip: Pulling starter grip operates recoil starter to crank engine. - Page 13 TO USE SPRAY WAND: Your pressure washer is equipped with a multi-adjustable spray wand with both high and low pressure settings. The high pressure setting is for cleaning rinsing, the low pressure setting is for applying cleaning solutions to surfaces. When using the high pressure setting,...
- Page 14 DUAL TANK CLEANING SYSTEM NOTE: Use only soaps and cleaning solutions designed for pressure washer use. Do not use bleach. To apply cleaning solutions: Make sure cleaning solution tanks are assembled and all hoses are connected. Turn control valve knob arrow to the down (off) position as shown.
- Page 15 READ AND UNDERSTAND ALL WARNINGS BEFORE STARTING UNIT When using the hiah pressure setting. DO NOT allow the high pressure spray to come in contact with unprotected skin, eyes, or with any pets or animals. Serious injury can occur. Your washer operates at fluid pressures and velocities high enough to penetrate human and animal flesh, which could result in amputation or other serious injury.
- Page 16 Connect water source to pump inlet. NOTE: Water source must provide a minimum of 5 gallons per minute at 20 p.s.i. Connect high pressure hose to pump outlet. If applying a cleaning solution, see How To Use the Dual Cleaning Solution System in Operation section of this manual.
-
Page 17: Nozzle Cleaning
Before reconnecting cleaning solution hose to chemical injector barb fitting make sure that any remaining cleaning solution has been completely drained from the cleaning solution hose. To rinse chemical using cleaning solution system tank Turn control valve knob arrow to the down (off) position. - Page 18 Shut off the pressure washer and turn off the water supply. Disconnect spark plug wire to insure the unit will not start while performing maintenance. Pull trigger on gun handle to relieve any water pressure. Disconnect the wand from the gun. Remove the nozzle from the end of the wand with the 2ram allen wrench...
- Page 19 ENGINE Consult the Engine Owners Manual for the manufacturer's recommendations storage. PUMP Drain all water from high pressure hose, coil it, and store it in cradle of the pressure washer handle. Drain all water from spray gun and spray wand by holding spray gun in a vertical position with nozzle end pointing down and squeezing trigger.
- Page 20 DUAL TANK CLEANING SYSTEM Turn control valve knob to the down (off) position. Remove cleaning solution hose at chemical injector and pull through rear shroud. Place end of cleaning solution hose into a suitable container to drain cleaning solution. Turn control valve toward tank to be drained.
- Page 21 CAUSE CORRECTION PROBLEM No fuel. Add Fuel, Engine will not Pressure builds up after two pulls start (see Engine Squeeze gun trigger to relieve on the recoil starter or after initial Manual for :)ressure. use. further engine troubleshooting) Choke lever in the ,No Choke,' Move choke to the ',Choke', position.
- Page 22 CAUSE CORRECTION PROBLEM Wand not in low pressure. See How to Use Wand paragraph Will not draw in the Operation Section. cleaning solution Clean filter, Filter ctogged on chemical injector rinsing hose. Make sure end of chemical Screen on end of chemical injecto injector rinsing hose is fully rinsing hose not in water...
- Page 23 23-ENG D27918...
- Page 24 (income producing) and service parts. Delta will repair or replace, at Delta's option, products or components which have failed within the warranty period. Service will be scheduled according to the normal work flow and business hours at the service center location, and the availability of replacement parts.
