To learn more about DELTA MACHINERY visit our website at:
www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call 1-866-422-4286

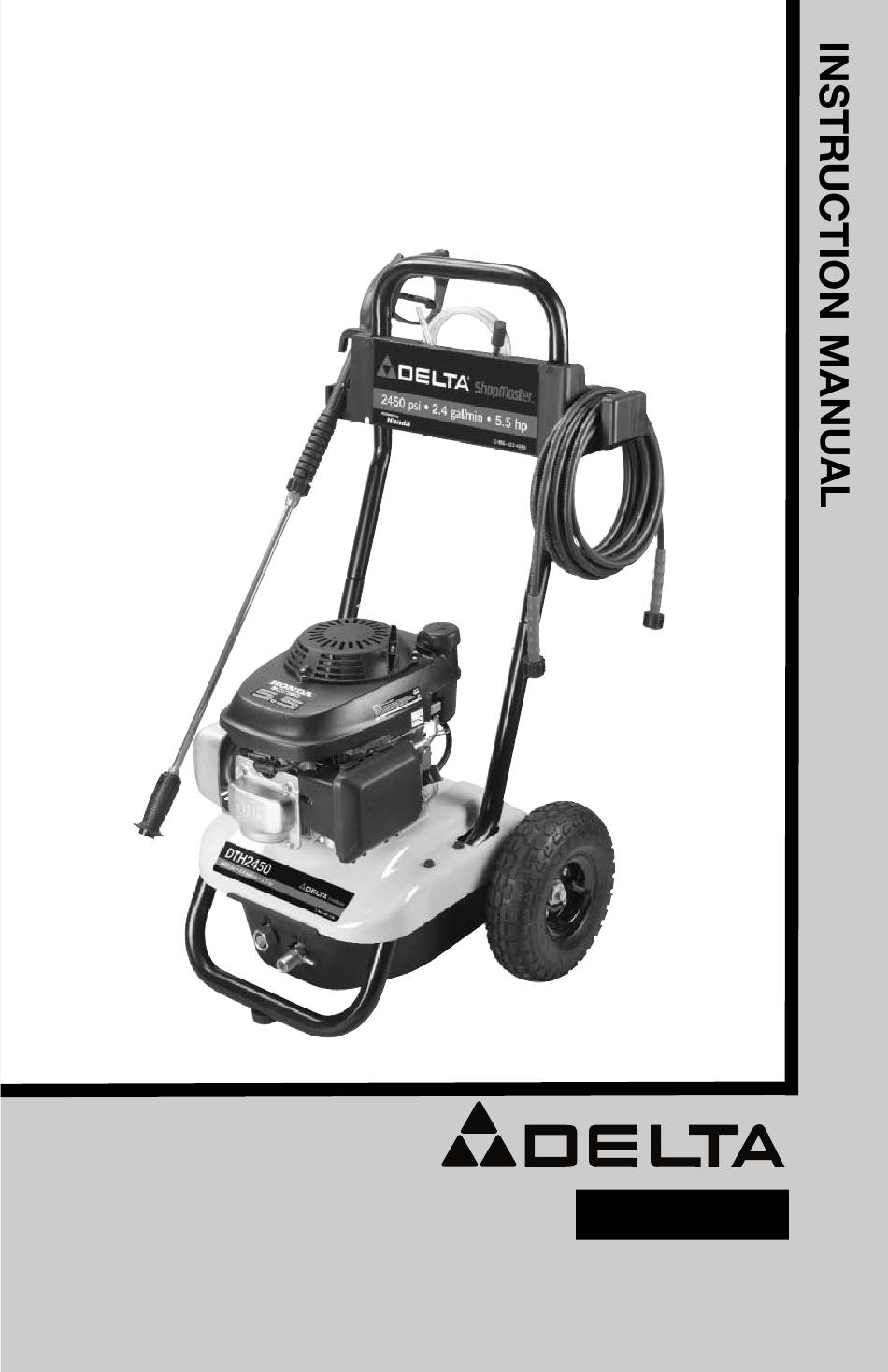

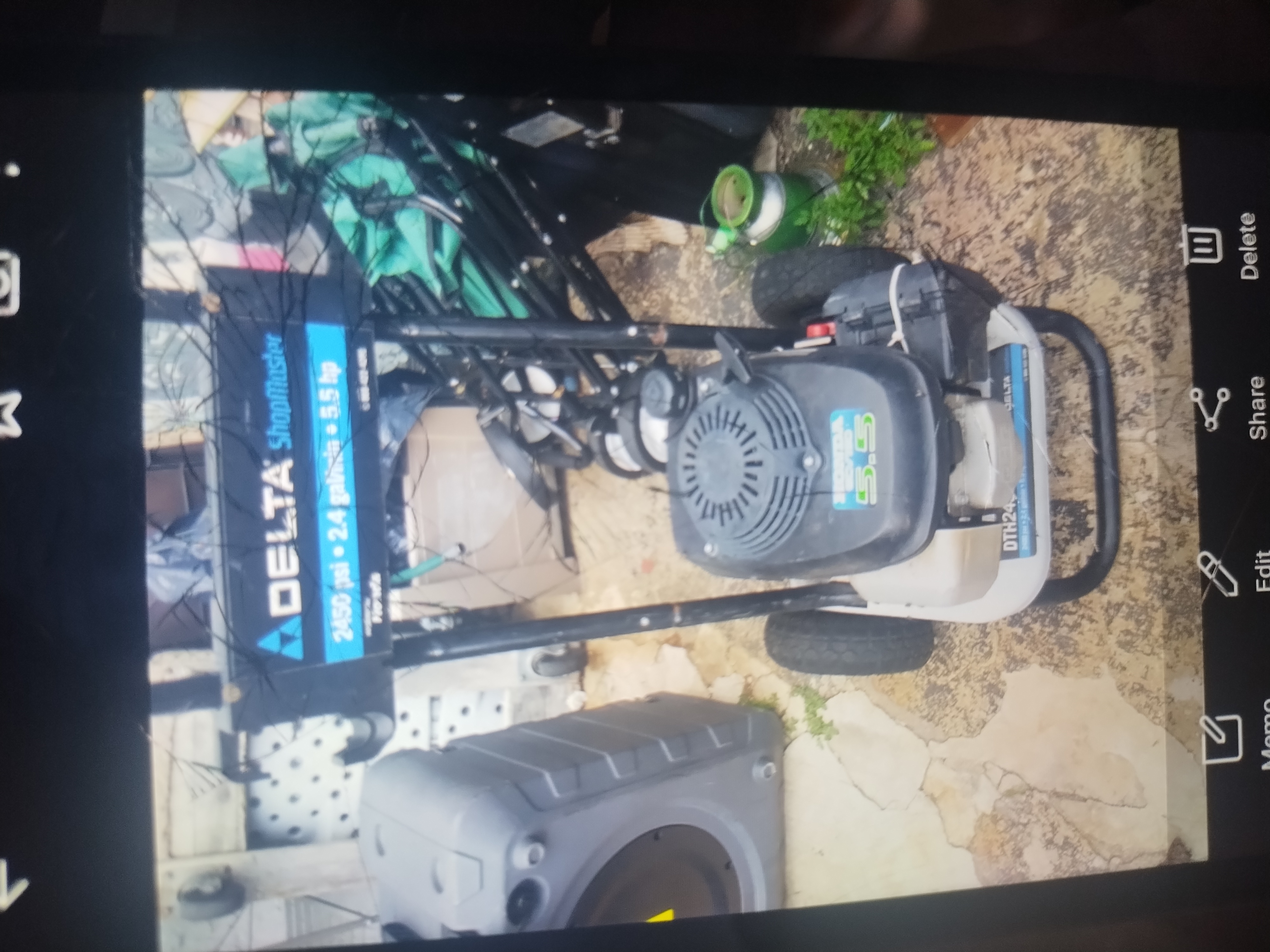

5.5 Horsepower
Pressure Washer with
5880 Cleaning Units
(Model DTH2450)
PART NO. A00521 Rev. 0 1/04
Copyright © 2004 Delta Machinery
ESPAÑOL: PÁGINA 17
FRANÇAIS: PAGE 33
Advertisement
Table of Contents
Related Manuals for Delta DTH2450-1
Summary of Contents for Delta DTH2450-1
- Page 1 5880 Cleaning Units (Model DTH2450) PART NO. A00521 Rev. 0 1/04 Copyright © 2004 Delta Machinery To learn more about DELTA MACHINERY visit our website at: ESPAÑOL: PÁGINA 17 www.deltamachinery.com. FRANÇAIS: PAGE 33 For Parts, Service, Warranty or other Assistance,...
-
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these symbols. - Page 3 HAZARD RISK OF EXPLOSION OR FIRE (continued) WHAT CAN HAPPEN HOW TO PREVENT IT • Materials placed against or near the pres- • Never operate pressure washer in an area sure washer can interfere with its proper containing dry brush or weeds. ventilation features causing overheating and possible ignition of the materials.
- Page 4 HAZARD RISK OF CHEMICAL BURN WHAT CAN HAPPEN HOW TO PREVENT IT • Use of acids, toxic or corrosive chemicals, • Do not use acids, gasoline, kerosene, or poisons, insecticides, or any kind of flam- any other flammable materials in this mable solvent with this product could re- product.
- Page 5 HAZARD RISK OF UNSAFE OPERATION WHAT CAN HAPPEN HOW TO PREVENT IT • Unsafe operation of your pressure washer • Do not use chlorine bleach or any other could lead to serious injury or death to corrosive compound. you or others. •...
-
Page 6: Carton Contents
CARTON CONTENTS Allen Wrench and Cleaning Tool Accessories Panel English/ Engine Spanish/French Handle Engine Frame and Manual Operation Wheel Assembly Manual Chemical Hose Accessories Panel Bagged Parts Multi-Adjustable Spray Wand Spray Gun Engine High Pressure Hose ASSEMBLY INSTRUCTIONS Place handle assembly onto frame, Place grooves in accessories depress the snap buttons, and slide panel assembly onto screws... -
Page 7: Basic Elements Of Apressure Washer
OPERATING INSTRUCTIONS Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Chemical Hose High Spray Pressure Hose Engine Multi- Adjustable Spray Wand High Pressure Pump (located inside the shroud) BASIC ELEMENTS OF A BASIC ELEMENTS OF AN... - Page 8 PRESSURE WASHER PRESSURE WASHER TERMINOLOGY (cont'd) OPERATING FEATURES Bypass Mode: Allows water to PRESSURE ADJUSTMENTS re-circulate within pump when the gun The pressure setting is preset at the trigger is not pulled. factory to achieve optimum pressure Allowing the unit to and cleaning.
- Page 9 spray wand as shown. HOW TO USE SPRAY WAND The high pressure Your pressure washer is equipped with spray from your a multi-adjustable spray wand with pressure washer is capable of both high and low pressure settings. causing damage to surfaces such as The high pressure setting is for wood, glass, automobile paint, auto cleaning and rinsing, the low pressure...
-
Page 10: Shutting Down
STARTING Turn water source on. NOTE: Failure to do so could Prior to starting, refer to your engine cause damage to the pump. manual for proper starting procedure. Start engine. See Engine Owners In a well ventilated outdoor area Manual for correct procedure. add fresh, high quality, unleaded NOTE: When engine rope is gasoline with a pump octane rating... -
Page 11: Nozzle Cleaning
MAINTENANCE When performing Clean the nozzle using the nozzle maintenance, you cleaner provided or a straightened may be exposed to hot surfaces, paper clip. Insert into the nozzle water pressure, or moving parts that end and work back and forth until can cause serious injury or death! obstruction is removed. -
Page 12: Pressure Washer
STORAGE Pull engine starter rope slowly ENGINE several times until antifreeze Consult the Engine Owners Manual for comes out of high pressure hose the manufacturer's recommendations for connection of pump. storage. Remove garden hose from water PUMP inlet of pump. Reconnect spark plug wire. -
Page 13: Troubleshooting Guide
TROUBLE SHOOTING GUIDE CAUSE CORRECTION PROBLEM Add Fuel. No fuel. Engine will not start (see Engine Squeeze gun trigger to relieve Pressure builds up after two pulls Manual for pressure. on the recoil starter or after initial further engine use. troubleshooting) Move choke to the “Choke”... - Page 14 CAUSE CORRECTION PROBLEM See How to Use Spray Wand Spray wand not in low pressure. Will not draw instructions in the Operation chemicals Section. Chemical filter clogged. Clean filter. Make sure end of chemical hose Chemical screen not in cleaning is fully submerged into cleaning solution.
- Page 15 NOTES 15- ENG A00521...
-
Page 16: Warranty
• Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s). • Deliver or ship the product to the nearest Delta Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.
