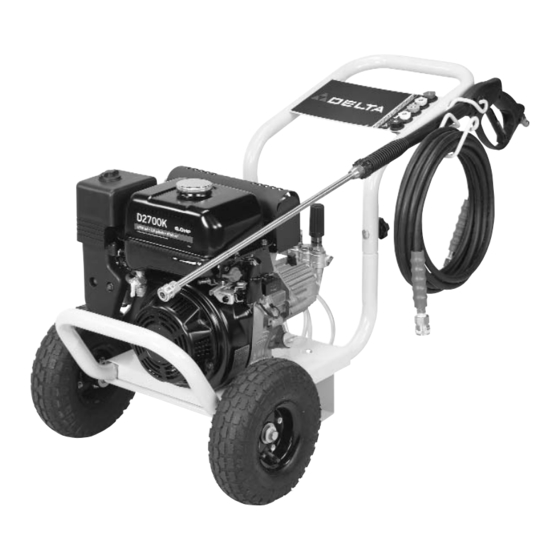

- Page 1 6 Horsepower Pressure Washer with 6750 Cleaning Units (Model D2700K) PART NO. D28569 Rev. 0 Copyright © 2003 Delta Machinery...
-
Page 2: Safety Guidelines - Definitions
SAFETY GUIDELINES / DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIP- MENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections. indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Operation Manual. Do not operate equipment until you have read Operation Manual for Safety, Assembly, Operation, and Maintenance Instructions. READ AND SAVE THESE INSTRUCTIONS HAZARD RISK OF EXPLOSION OR FIRE WHAT CAN HAPPEN HOW TO PREVENT IT •... - Page 4 HAZARD RISK OF INJURY OR PROPERTY DAMAGE WHEN TRANSPORTING OR STORING WHAT CAN HAPPEN HOW TO PREVENT IT • Fuel or oil can leak or spill and could • If pressure washer is equipped with a fuel result in fire or breathing hazard, serious shut-off valve, turn the valve to the off injury or death can result.
-
Page 5: Risk Of Unsafe Operation
HAZARD RISK OF UNSAFE OPERATION WHAT CAN HAPPEN HOW TO PREVENT IT • Unsafe operation of your pressure washer • Do not use chlorine bleach or any other could lead to serious injury or death to corrosive compound. you or others. •... -
Page 6: Consumer General And Service Information
HAZARD RISK OF INJURY FROM SPRAY WHAT CAN HAPPEN HOW TO PREVENT IT • Always wear ANSI approved Z87 safety • High velocity fluid spray can cause glasses.Wear protective clothing to protect objects to break, propelling particles at against accidental spraying. high speed. -
Page 7: Carton Contents
CARTON CONTENTS English/ Spanish/ French Handle Operator’s Manual Engine Manual Bagged Handle Engine Frame and High Pressure Hose Wheel Assembly Knobs Saddle Bolts Grommet Kit Chemical with Quick Hose Connect Nozzles Engine Oil Nozzle Cleaning Bagged Parts Quick Connect Spray Wand Spray Gun ASSEMBLY INSTRUCTIONS Place handle assembly onto frame and connect handle to frame. - Page 8 Attach high pressure hose to gun. Tighten securely. Connect spray wand to gun. Tighten securely. To Assemble Quick Connect Grommets: Squeeze grommet and place into hole, fitting groove to rim. Push grommet into place. Repeat steps until all grommets are assembled. To Assemble Quick Connect Nozzles: Remove five colored quick connect nozzles from plastic bag and insert them into correct grommet.
-
Page 9: Basic Elements Of A Pressure Washer
OPERATING INSTRUCTIONS READ THIS OPERATION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Quick Spray Connect Spray Wand Engine High Pressure... -
Page 10: Pressure Washer Terminology
PRESSURE WASHER TERMINOLOGY PSI: Pounds per Square Inch. The unit of measure for water pressure. Also used for air pressure, hydraulic pressure, etc. GPM: Gallons Per Minute. The unit of measure for the flow rate of water. CU: Cleaning Units. GPM multiplied by PSI. Bypass Mode: In Bypass Mode, the pump is recirculating water because the trigger of the spray gun is not pulled. - Page 11 TO USE SPRAY WAND Your pressure washer is equipped with five spray nozzles. Each nozzle is color coded and delivers a specific spray pattern for a particular cleaning purpose. The size of the nozzle determines the size of the fan spray and the pressure out of the nozzle.
- Page 12 HOW TO APPLY CHEMICALS AND CLEANING SOLVENTS Applying chemicals or cleaning solvents is a low pressure operation. NOTE: Use only soaps and chemicals designed for pressure washer use. Do not use bleach. To Apply chemicals: Press chemical hose onto barbed fitting located Barb fitting near high pressure hose connection of pump as shown.
-
Page 13: Shutting Down
STARTING Prior to starting, refer to your engine manual for proper starting procedures for your engine type. In a well ventilated outdoor area add fresh, high quality, unleaded gasoline with a pump octane rating of 86 or higher. Do not overfill. Wipe up spilled fuel before starting the engine. -
Page 14: Maintenance
MAINTENANCE When performing maintenance, you may be exposed to hot surfaces, water pressure, or moving parts that can cause serious injury or death! Before performing any maintenance or repair, disconnect spark plug wire, let engine cool and release all water pressure. The engine contains flammable fuel. - Page 15 HOW TO CLEAN THE WATER INLET FILTER This screen filter should be checked periodically and cleaned if necessary. Filter Screen Remove filter by grasping end and removing it from water inlet of pump as shown. Clean filter by flushing it with water on both sides.
- Page 16 STORAGE ENGINE Consult the Engine Owners Manual for the manufacturer's recommendations for storage. PUMP Drain all water from high pressure hose, coil it, and store it in cradle of the pressure washer handle. Drain all water from spray gun and spray wand by holding spray gun in a vertical position with nozzle end pointing down and squeezing trigger.
-
Page 17: Troubleshooting Guide
TROUBLE SHOOTING GUIDE CAUSE CORRECTION PROBLEM Add Fuel. No fuel. Engine will not Add required amount of oil. Low oil start (see Engine Manual for Squeeze gun trigger to relieve Pressure builds up after two pulls further engine pressure. on the recoil starter or after initial troubleshooting) use. - Page 18 CAUSE CORRECTION PROBLEM See How to Use Spray Wand Spray wand not in low pressure. Will not draw paragraph in the Operation chemicals Section. Chemical filter clogged. Clean filter. Insure end of chemical hose is Chemical screen not in chemical fully submerged into chemical.
-
Page 19: Warranty
• Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s). • Deliver or ship the product to the nearest Delta Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.
