Single-Phase Cabling for Europe

Caution

Connecting the Power Supply Cord

56
The DKC has two main disconnect devices (two main breaker CB200s for
dual power Lines) so that AC Power of the unit can be supplied from the
separate power distribution board with two power supply cords. Similarly,
each of the 1st DKU, the 2nd DKU, the 3rd DKU, the 4th DKU, the 5th
DKU, and the 6th DKU also has two main disconnect devices (two main
breaker CB101s for dual power Lines). Observe all instructions described
in this manual before connecting the equipment to the power source and
before servicing.
The unit has two power supply cords. The power cord included with the
unit is a type H07RN-F or equivalent, with five 2.5 mm

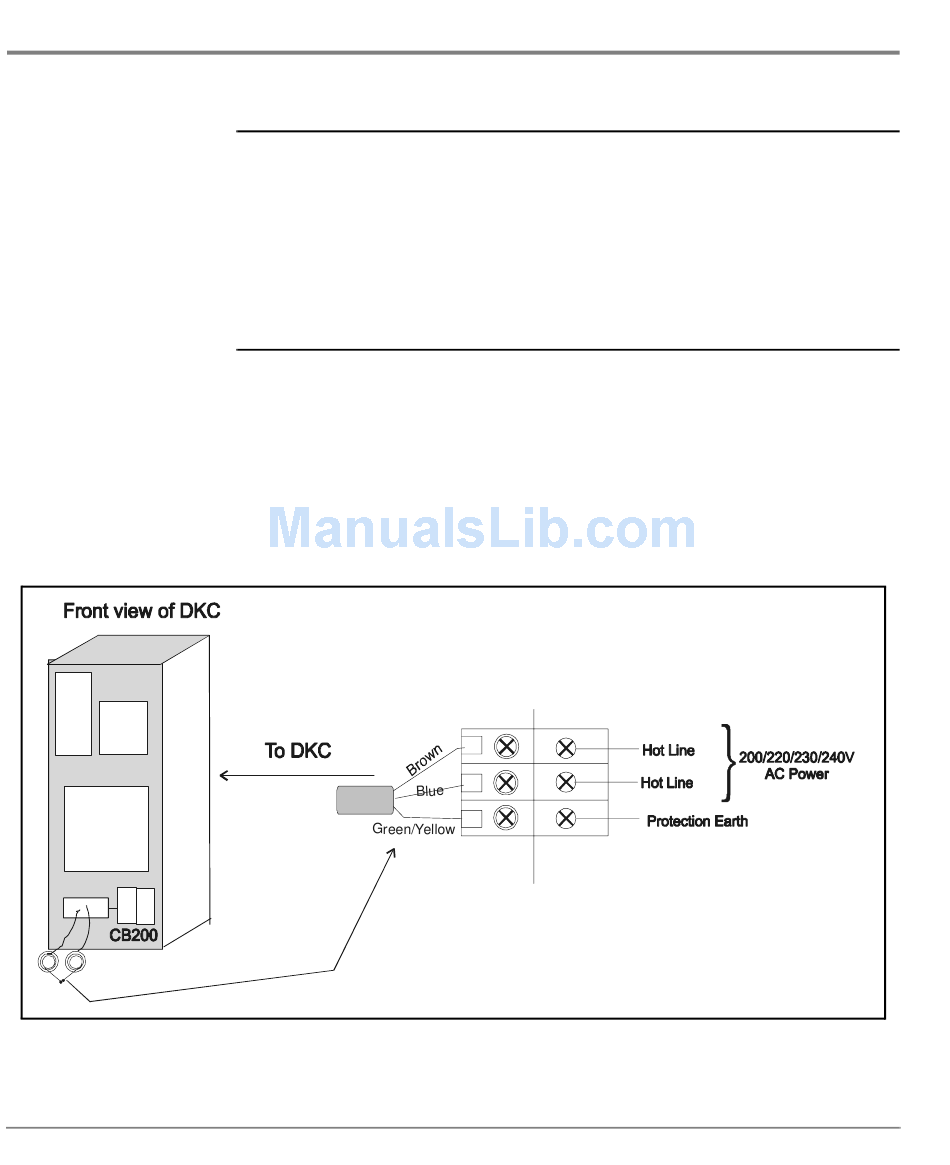

Socket Receptacle: As shown in the following figure.
/
/
*
HP SureStore E Disk Array XP512: Site Prep Guide
2
conductors.
