3-2. Special Notes on Repair Servicing

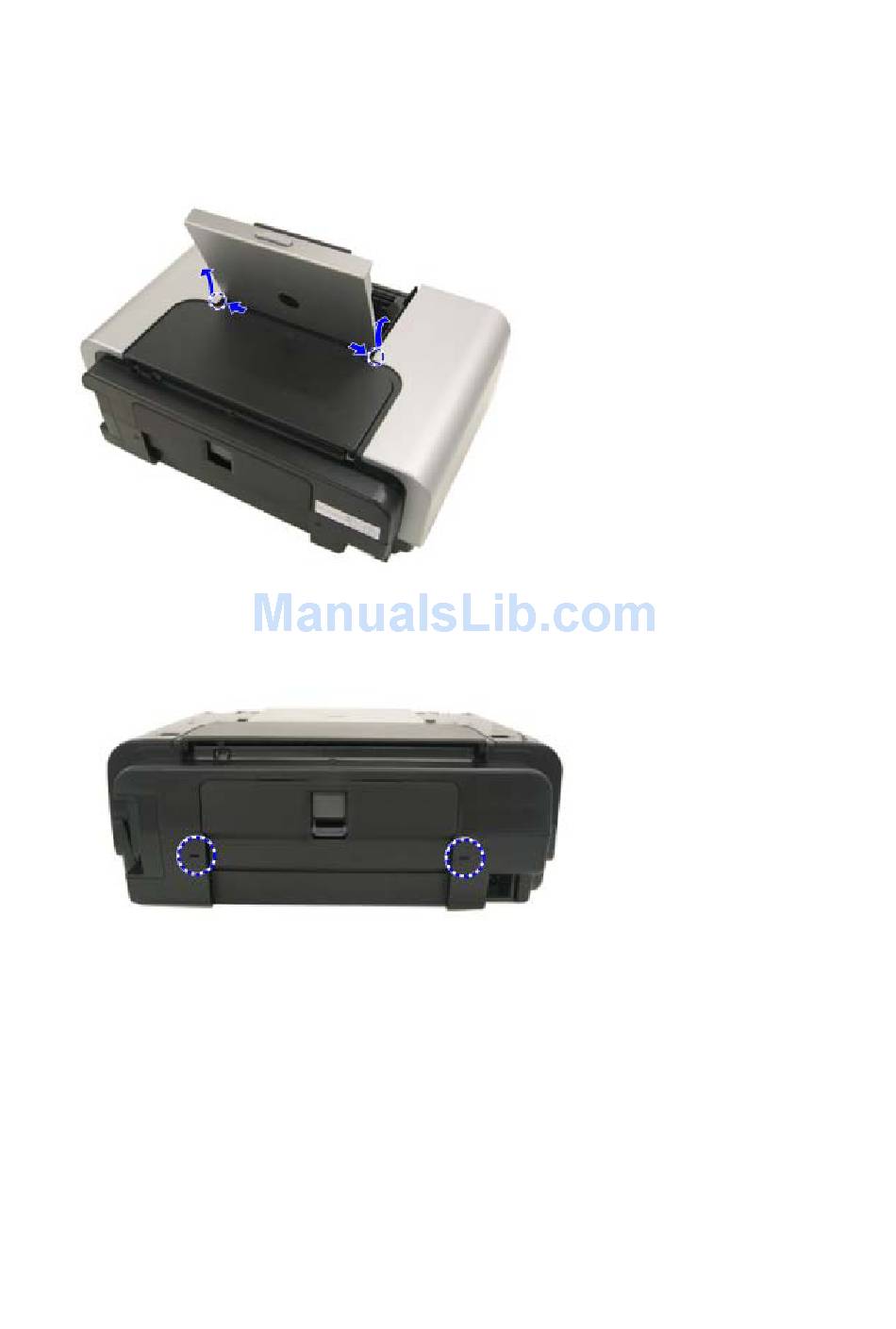

(1) External cover removal
(I) With your fingers at the points indicated by the blue circle, raise and slide the left and right side
covers to remove them.
(II) Release the 2 hooks on the rear side of the printer (indicated by the blue circles).
(III) Slide the left and right panel cover units.
1-15
