Canon PIXMA iP5200 Service Manual page 21

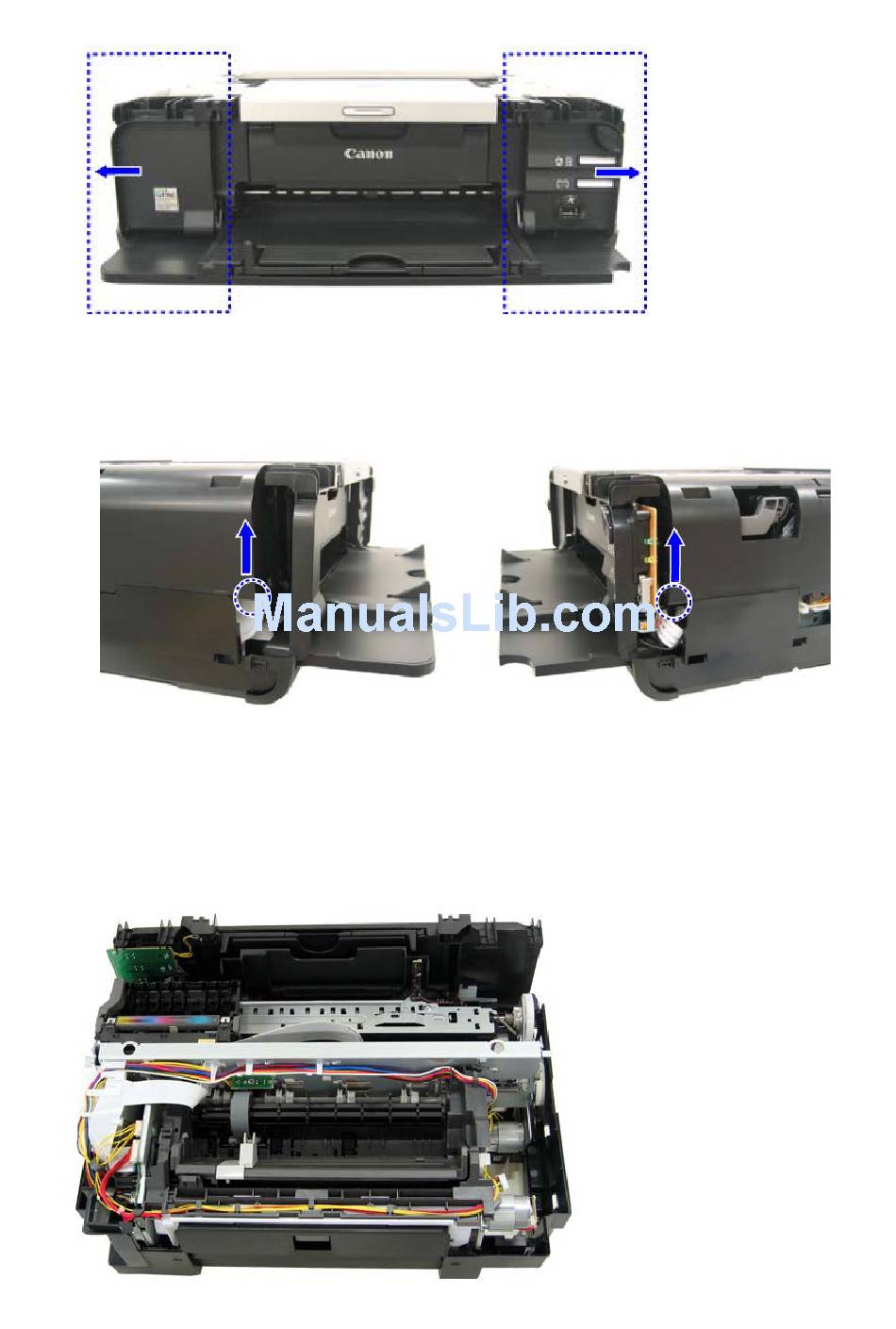

(IV) Hold the left and right corners indicated by the blue circle, and lift the upper case to remove it.
Note: In removing or re-assembling the upper case, make sure not to damage the ink tank
sensor and ink tank sensor cover.
(2) Flexible cable and harness wiring, connection
Be careful of wiring of the flexible cables and harness. Improper wiring or connection may cause
breakage of a line, leading to ignition or emission of smoke.
Left side
1-16
Right side
