Control Panel Parts - KitchenAid KDRP407HSS0 Parts List

30" kitchenaid free standing range dual fuel
Hide thumbs

Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
4455216 Panel, Control
2
4453000 Bracket, Display
3
4453120 Bracket, Display
Mounting
4
3196537 Screw, 8−18 x 3/8
5
4452443 Control, Zodiac
6
4449899 Screw, 6−19 x 1
8177425

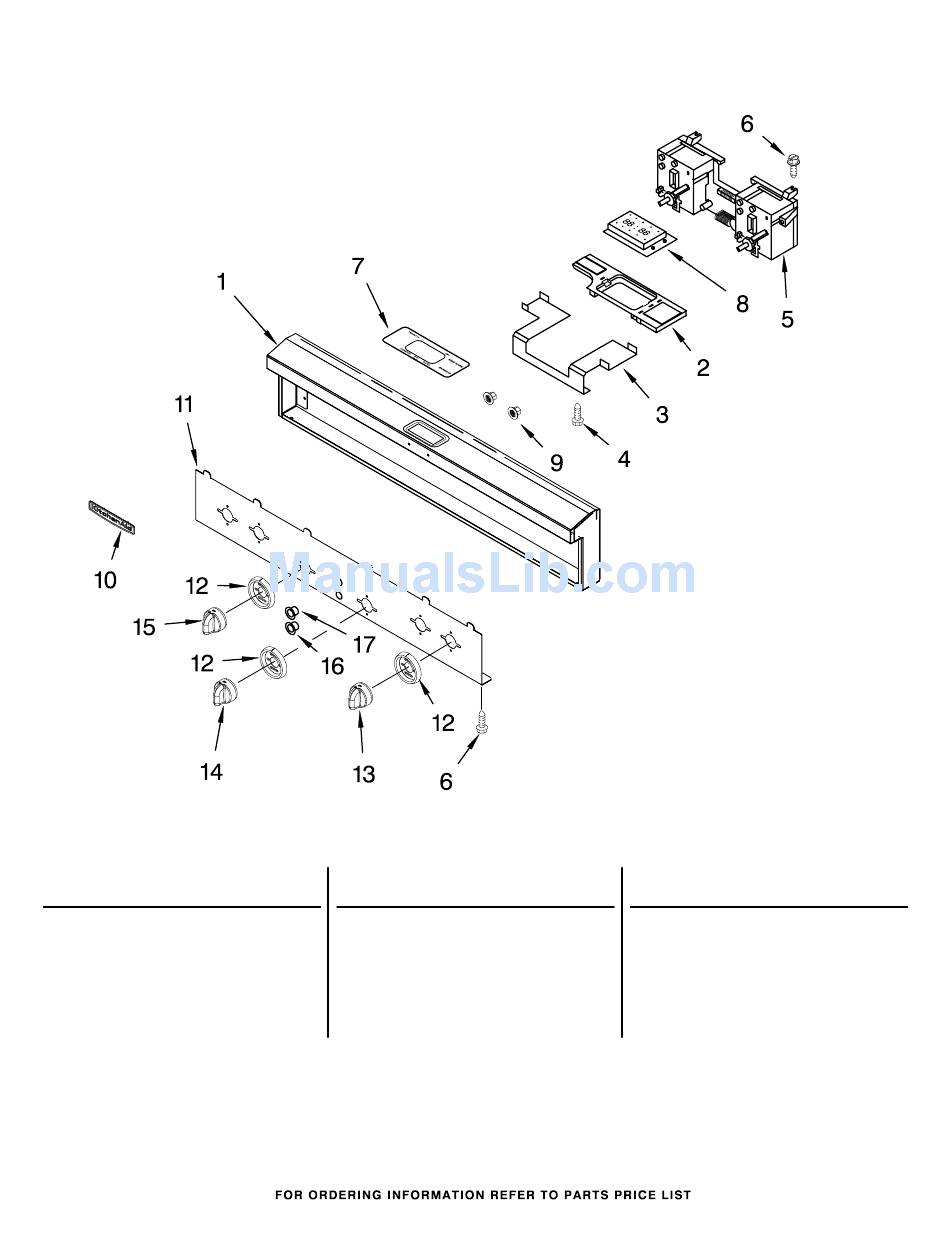

CONTROL PANEL PARTS

For Model: KDRP407HSS0
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
7
4453199 Escutcheon,
Control Panel
8
4452999 Module, Display
9
2004333 Palnut
10
2005292 Nameplate
11
4455211 Face, Control
Panel
5
Illus.
Part
No.
No.
DESCRIPTION
12
4455192 Bezel, Knob
13
4454970 Knob, Control
14
4455115 Knob, Temp/Time
15
4455141 Knob, Selector
16
4452998 Button, Cancel
17
4452997 Button, Enter
