Control Panel Parts - KitchenAid KDRP463LSS08 Parts List

36" free standing range dual fuel w/griddle
Hide thumbs Also See for KDRP463LSS08:

Advertisement

Table of Contents
Illus.
Part
No.
No.
DESCRIPTION
1
4457250 Panel, Control
2
4453000 Bracket, Display
3
8300805 Bracket, Display
Mounting
4
3196537 Screw, 8−18 x 3/8
5
8300203 Control, Zodiac
6
3196184 Screw, 6−19 x 1
7
4452842 Switch, Rocker
8
4452999 Module, Display
8186220

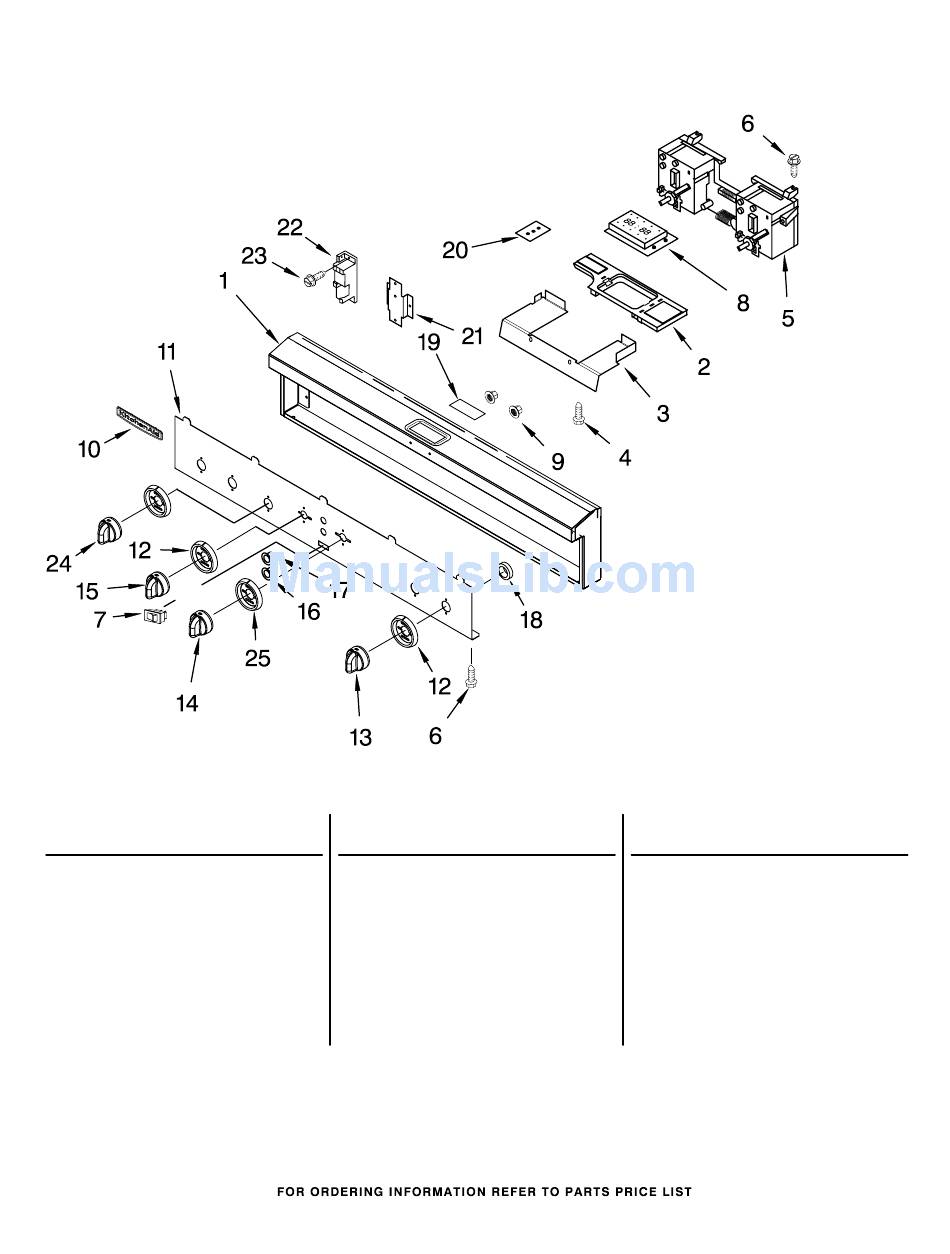

CONTROL PANEL PARTS

For Model:KDRP463LSS08
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
9
2004333 Palnut
10
2005292 Nameplate
11
4457165 Face, Control
Panel
12
4455192 Bezel, Knob
13
4454970 Knob, Control
14
4455115 Knob, Temp/Time
15
4455141 Knob, Selector
16
4452998 Button, Cancel
5
Illus.
Part
No.
No.
DESCRIPTION
17
4452997 Button, Enter
18
4455719 Spacer Ring
19
4455806 Glass, Display
20
3192439 Seal, Limiter
21
4457260 Bracket, Spark
Module
22
8522426 Module, Spark
23
3400843 Screw
24
8284743 Knob, Grill
25
4457152 Bezel, T−Stat
