Control Panel Parts - KitchenAid KDRP462LSS08 Parts List

Illus. Part
No. No. DESCRIPTION
1 4457167 Panel, Control
2 4453000 Bracket, Display
3 8300805 Bracket, Display
Mounting
4 3196537 Screw, 8−18 x 3/8
5 8300203 Control, Zodiac
6 3196184 Screw, 6−19 x 1
7 4452842 Switch, Rocker
8 4452999 Module, Display
9 2004333 Palnut
8186669

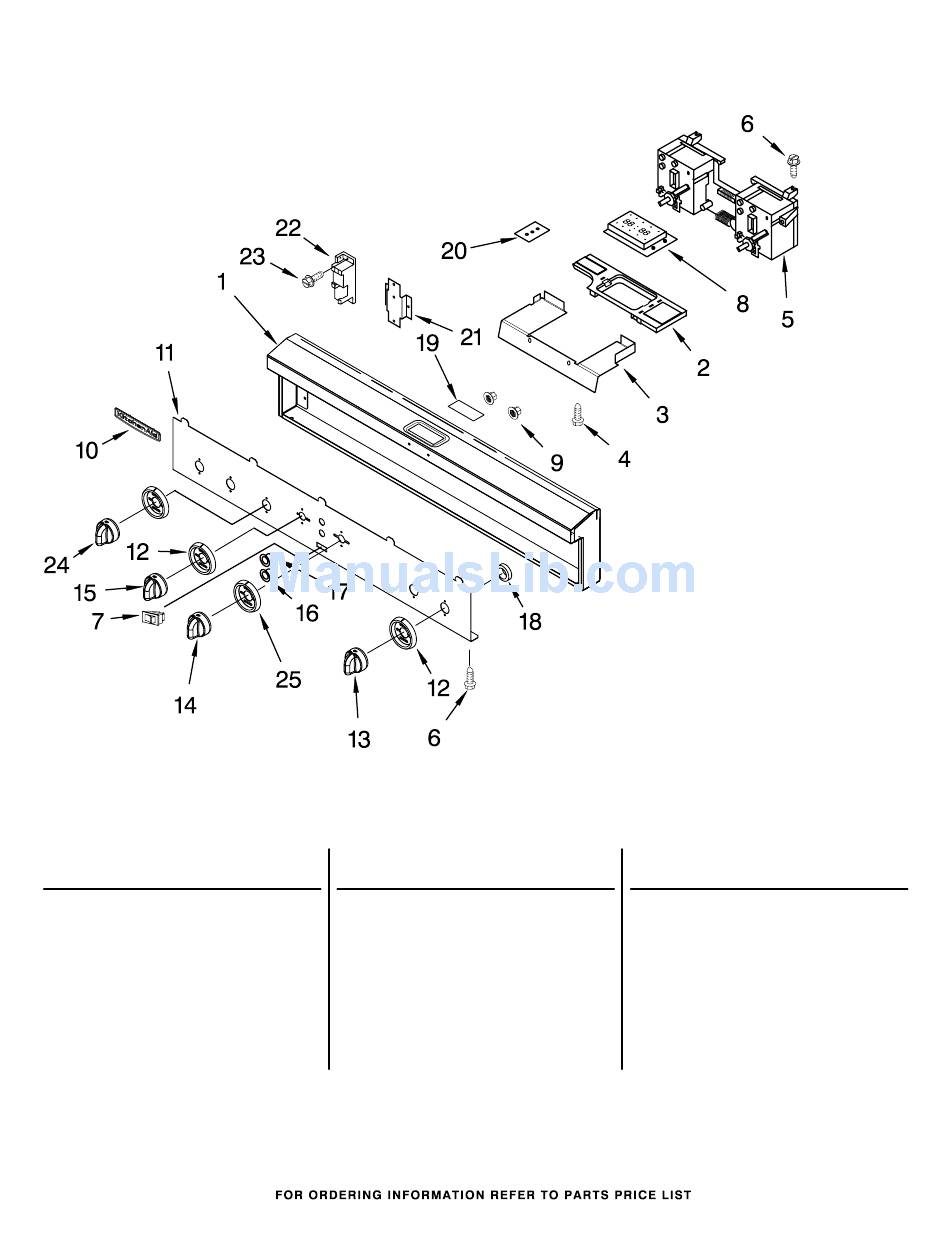

CONTROL PANEL PARTS

For Model:KDRP462LSS08
(Stainless Steel)
Illus. Part
No. No. DESCRIPTION
10 2005292 Nameplate
11 4457166 Face, Control
Panel
12 4455192 Bezel, Knob
13 4454970 Knob, Control
14 4455115 Knob, Temp/Time
15 4455141 Knob, Selector
16 4457218 Button, Cancel
17 4452997 Button, Enter
18 4455719 Spacer Ring
5
Illus. Part
No. No. DESCRIPTION
19 4455806 Glass, Display
20 3192439 Seal, Limiter
21 4457260 Bracket, Spark
Module
22 8522426 Module, Spark
23 3400843 Screw
24 8284742 Knob, Grill
25 4457152 Bezel, T−Stat
Knob
