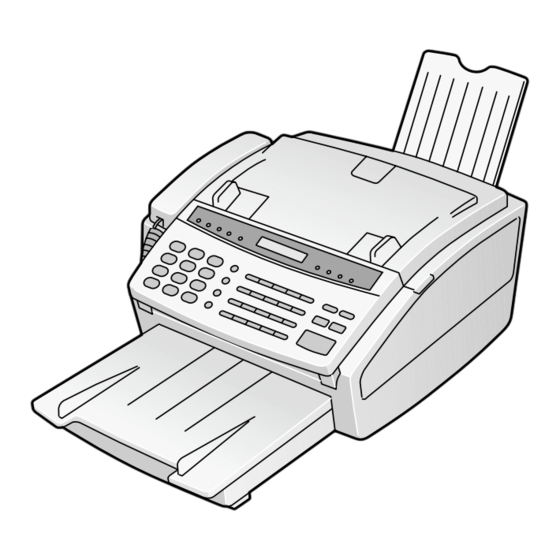

FO-1650
FO-1850
FACSIMILE
OPERATION MANUAL
1.INSTALLATION
2.INITIAL SETTINGS
3.FAX OPERATIONS
4.USING THE ANSWERING MACHINE
5.MAKING COPIES
6.MAKING TELEPHONE CALLS
7.SPECIAL FUNCTIONS
8.OPTIONAL SETTINGS
9.PRINTING OUT REPORTS AND LISTS
10.MAINTENANCE
11.TROUBLESHOOTING
SPECIFICATIONS
QUICK REFERENCE GUIDE
INDEX
MODEL

Advertisement

Table of Contents
loading

Related Manuals for Sharp FO-1650

Summary of Contents for Sharp FO-1650

  • Page 1 MODEL FO-1650 FO-1850 FACSIMILE OPERATION MANUAL 1.INSTALLATION 2.INITIAL SETTINGS 3.FAX OPERATIONS 4.USING THE ANSWERING MACHINE 5.MAKING COPIES 6.MAKING TELEPHONE CALLS 7.SPECIAL FUNCTIONS 8.OPTIONAL SETTINGS 9.PRINTING OUT REPORTS AND LISTS 10.MAINTENANCE 11.TROUBLESHOOTING SPECIFICATIONS QUICK REFERENCE GUIDE INDEX...
  • Page 2 In order to program this information into your facsimile machine, please refer to the appropriate instructions in the operation manual." As an NERGY partner, SHARP has deter- mined that this product meets the NERGY guidelines for energy efficiency. FOR YOUR RECORDS Please record the model number and serial number below, for easy reference, in case of loss or theft.
  • Page 3 INTRODUCTION Welcome to the FO-1650/1850 and thank you for choosing Sharp! The FO-1650/1850 combines a fascimile and answering machine into a single unit, allowing you to engage in both fax and voice communications with convenience and economy. In addition, the FO-1650/1850 features plain paper printing and the ability to be connected to a personal computer.
  • Page 4 INTRODUCTION Important safety information If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network. The socket-outlet shall be installed near the equipment and shall be easily accessi- ble.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INSTALLATION Unpacking Check List ..... . Installing the Imaging Film ....Connections .
  • Page 6 TABLE OF CONTENTS Broadcasting ......Polling ......7-10 Timer Operations .

  • Page 7: Installation

    Rapid key labels document tray Operation manual Paper tray cover Handset cord Telephone Paper tray line cord Sample sharp Handset printing paper (with the FO-1850 only) 3 gears and Multifunction 1 flange interface kit (with the FO-1850 only) Imaging film...

  • Page 8: Installing The Imaging Film

    INSTALLING THE IMAGING FILM The printer unit in your fax creates printed text and images by applying heat to the imaging film, which causes toner to be transferred from the film to the page. Follow the steps below to install or replace the imaging film. Grasp the finger hold on the right side of the printing compartment cover, and pull up to open the cover.
  • Page 9 INSTALLING THE IMAGING FILM Take the new film out of its package, and insert two of the gears provided with the fax into the ends of the spool with film. Make sure that the two tabs on the gears fit properly into the slots in the ends of the spool.
  • Page 10 INSTALLING THE IMAGING FILM Pull the empty spool toward the back of the compartment, unwinding the film as you pull. Insert the empty spool into the back of the compartment so that the gear and the flange fit into the slots on the sides of the compartment.
  • Page 11 INSTALLING THE IMAGING FILM Rotate the printing head frame back down, and press down on the " PUSH " mark in the center of the frame until the frame clicks into place. Close the printing compartment cover. If you replaced the film, initialize the new FUNCTION FUNCTION film by pressing the...

  • Page 12: Connections

    CONNECTIONS Connect the power cord, telephone line, and handset as shown below. If desired, you can also connect an extension telephone to your fax. You can use an extension phone connected to the fax to make and receive calls like any other extension phone on your line. For details on receiving faxes from an extension phone, see "Receiving Documents"...
  • Page 13 CONNECTIONS Use the handset to make ordinary phone calls, or to transmit and receive docu- ments manually. Handset Insert one end of the telephone line cord into the "TEL. LINE" jack. Insert the other end into a stand- ard (RJ11C) single-line telephone wall jack.

  • Page 14: Attachments

    ATTACHMENTS Attach the received document tray by inserting the tabs into the holes at the rear of the fax. INSTALLATION...

  • Page 15: Loading Printing Paper

    Up to 300 sheets of letter or legal size paper from 16 to 24 lbs. (60 to 90 ) can be loaded in the tray. For the best results, we recommend that you use Sharp FO-16NA (letter size) or Sharp FO-16NB (legal size) paper. If the paper tray is in the fax machine, re- move the cover.
  • Page 16 " " key three times, and then press " " to select regular, or " " to se- lect Sharp high quality paper. When fin- STOP ished, press the key. Be sure to change this setting again if you change S T O P back to regular paper.

  • Page 17: Initial Settings

    INITIAL SETTINGS SETUP GUIDE Before you can begin using your fax, there are some settings which must be made with the keys on the operation panel. Some of the settings are required for basic use of your fax, others may or may not be necessary depending on how you want to use the fax.

  • Page 18: A Look At The Operation Panel

    A LOOK AT THE OPERATION PANEL Before you make the settings, take a moment to familiarize yourself with the operation panel. REDIAL key REMINDER key Press this key to Press this key to send a fax automatically redial and/or voice message to the last number another party or yourself at dialed.
  • Page 19 A LOOK AT THE OPERATION PANEL Display This displays various messages during operation and programming. RESOLUTION key Press this key to adjust the RECEPTION MODE key resolution and contrast Press this key to select the before sending or copying mode of reception. a document.

  • Page 20: Entering Your Name And Fax Number

    Press each key repeatedly until the desired letter appears in the dis- play. (Max. of 24 characters.) S P E A K E R (Example: "SHARP") S T O P S T A R T START Press the...

  • Page 21: Entering Letters For Names

    ENTERING LETTERS FOR NAMES Names are programmed by pressing the number keys. You will notice that letters are marked above each of the number keys " " through " ". To enter a letter (or number), press the appropriate key one or more times until the letter appears in the display (the number will appear first, followed by the letters in the order marked above the key).
  • Page 22 ENTERING LETTERS FOR NAMES Symbol list To enter a symbol from the list below, press the "#" key or the "*" key repeatedly until the desired symbol appears. . / ! " # $ % & ’ ( ) + + , - : ; < = > ? @ [ ¥ ] ^ _ p { | } Example The following is an example of entering the name "ABC Co.

  • Page 23: Setting The Date And Time

    SETTING THE DATE AND TIME The date and time appear in the display and reports, and are printed at the top of every page you transmit. Set the date and time by pressing the keys on the operation panel as shown below. SPEED DIAL To correct a mistake, press the key to move the cursor back to...

  • Page 24: Selecting The Reception Mode

    SELECTING THE RECEPTION MODE Your fax has three modes for receiving incoming calls and faxes: TAD mode: Select this mode when you are out and want the built-in answering machine to answer all calls. Voice messages will be recorded, and fax messages will be received automatically.

  • Page 25: Answering Machine Set-Up

    ANSWERING MACHINE SET-UP About the answering machine The FO-1650/1850’s built-in answering machine allows you to receive both voice messages and fax transmissions while you are out. Up to 24 minutes of voice messages can be recorded when no documents are stored in memory (memory capacity will vary depending on current memory features in use).
  • Page 26 ANSWERING MACHINE SET-UP Recording an outgoing message To use the built-in answering machine, you must first record a general outgoing message. This must be done even if you only intend to use personal boxes. An outgoing message for each personal box used must also be recorded. A personal box cannot be accessed if it does not have an outgoing message.
  • Page 27 ANSWERING MACHINE SET-UP Pick up the handset and speak into it. The general outgoing message can be up to 60 seconds long. A personal outgoing message can be up to 30 seconds long. While recording, the display will show the time remaining to record. When finished, replace the handset or S T O P STOP...
  • Page 28 ANSWERING MACHINE SET-UP Programming a passcode A 3-digit passcode can be programmed for each of the boxes. If this is done, the passcode must be entered before messages in the box can be listened to or erased. Program a new passcode or clear a previously programmed passcode by pressing the panel keys as shown below.
  • Page 29 ANSWERING MACHINE SET-UP Fax reception in boxes As explained at the beginning of this section, a caller can press their Start key after accessing a box to send a fax to that box. In this case, the fax will not be printed out until you listen to the messages in the box.
  • Page 30 ANSWERING MACHINE SET-UP Setting ICM time Incoming messages (ICMs) are the messages which callers leave for you on the built-in answering machine. The answering machine is set at the factory to allow each caller a maximum of 4 minutes to leave a message. If desired, you can change this setting to 15, 30, or 60 seconds.
  • Page 31 ANSWERING MACHINE SET-UP Fax reception on TAD failure If the memory for recording incoming messages becomes full while you are out, the answering machine will no longer be able to record messages. The ON TAD FAILURE setting is used to choose the response of the machine to incoming calls when this happens: Automatic fax reception "NO": The FO-1650/1850 will answer after 20 rings, after which it will wait to receive a remote command.
  • Page 32 ANSWERING MACHINE SET-UP Calling Party Control detection When a caller hangs up, the central telephone exchange will issue a signal called a Calling Party Control (CPC) signal. The built-in answering machine has been set to detect this signal, and this allows it to immediately stop recording when a caller hangs up, thereby saving memory space and freeing you from having to listen to long periods of silence when you play back your messages.

  • Page 33: Distinctive Ringing

    DISTINCTIVE RINGING Distinctive ringing in FAX mode Distinctive ringing is a service offered by some local telephone companies which allows you to use up to four different telephone numbers, each with a different ringing pattern, on your regular single line. If you subscribe to a distinctive ringing service, you can set your fax to automatically answer when it detects one of those ringing patterns, thereby allowing you to use the number corresponding to that pattern as an exclusive fax number.
  • Page 34 DISTINCTIVE RINGING Press the keys shown at left. "OPTION FUNCTION SETTING" will appear in the display. Press the keys shown at left. "DISTINC- TIVE RING" will appear in the display. Select a ringing pattern by entering the appropriate number ("1" to "5" as shown in the list on the previous page).
  • Page 35 DISTINCTIVE RINGING Note that the above assignment of ringing patterns to boxes is not affected by the distinctive ringing setting for FAX mode described on the previous page. The above assignment is effective when the fax is in TAD mode, and the selection made for FAX mode is effective when the fax is in FAX mode.

  • Page 36: Storing Numbers For Automatic Dialing

    STORING NUMBERS FOR AUTOMATIC DIALING Automatic dialing is a quick and convenient way of dialing which is done by either SPEED DIAL pressing a Rapid Key (Rapid Key Dialing), or pressing the key and entering a 2-digit number (Speed Dialing). It can be used for both fax transmissions and voice calls.
  • Page 37 STORING NUMBERS FOR AUTOMATIC DIALING Enter a 2-digit number (from "01" to "99") by pressing the number keys. This will be the Speed Dial number. (Example) Enter the fax or voice number by press- ing the number keys (max. of 32 digits in- cluding pauses).
  • Page 38 STORING NUMBERS FOR AUTOMATIC DIALING Clearing numbers Note: You cannot clear a number if it is used in a program or timer operation, or if it is included in a Group Key. First clear the number from the operation or group, then perform the following clearing procedure.
  • Page 39 STORING NUMBERS FOR AUTOMATIC DIALING Storing Numbers in Group Keys Group Keys allow you to dial a group of fax numbers by simply pressing the appropriate Group Key once. They are convenient for the Broadcasting function, which is used to transmit a document to a group of fax machines. Rapid Keys 18/G1 and 19/G2 can be programmed as Group Keys.

  • Page 40: Volume Adjustment

    VOLUME ADJUSTMENT You can adjust the volume of the speaker, handset, and ringer using the DOWN keys on the operation panel. Speaker The speaker has three volume levels: HIGH, MIDDLE, and LOW. To adjust the SPEAKER DOWN volume of the speaker, press the key and then press the SPEAKER key until the desired level appears in the display.

  • Page 41: Fax Operations

    FAX OPERATIONS SENDING DOCUMENTS Transmittable documents Your fax can transmit most standard office documents. Specific guidelines are as follows: Size and weight The size and weight of documents which you can load in the document feeder depend on whether you load one sheet at a time or several sheets at once. One sheet at a time: 39.4"...
  • Page 42 SENDING DOCUMENTS Loading the document Up to 20 pages can be placed in the feeder at one time. The pages will be automatically fed into the fax starting from the page on the bottom. If you need to send or copy more than 20 pages, place the additional pages gently and carefully in the feeder just before the last page is scanned.
  • Page 43 SENDING DOCUMENTS Optional transmission settings If desired, there are several transmission settings which you can make before dialing and transmitting the document. Note: To make the settings, the document must first be loaded in the feeder. Resolution Your fax has four resolution settings. If you do not make a setting, the fax will automatically send the document in STANDARD resolution.
  • Page 44 SENDING DOCUMENTS Cover Sheet You can have your fax generate a cover sheet and send it as the last page of the transmission. The cover sheet includes the date and time, the sender’s name and number, and the receiver’s name and number if an automatic dialing number is used.
  • Page 45 SENDING DOCUMENTS Batch Page Numbering This setting is used to change the page numbering of the transmitted document from simple numbering ("P.1", "P.2", etc.) to batch numbering, which means that a slash and the total number of pages being sent are added after each page number (for example, "P.
  • Page 46 SENDING DOCUMENTS Dialing and transmission Once you have loaded the document and made any desired transmission settings, you are ready to dial the number of the receiving fax machine and transmit the document. There are several ways of dialing, and you can select the one which best suits your needs.
  • Page 47 SENDING DOCUMENTS When you hear the reception tone, press S T A R T START key. Replace the handset if you used it. When transmission is completed, the fax will beep. Direct Keypad Dialing If you do not need to talk with the other party before sending the fax, you can just SPEAKER dial;...
  • Page 48 SENDING DOCUMENTS Rapid Key Dialing If the number you want to dial has been stored for automatic dialing as a Speed Dial number from "01" to "20" (see "Storing Numbers for Automatic Dialing" in Chapter 2), you can dial it by pressing the corresponding Rapid Key. Press the Rapid Key corresponding to the desired Speed Dial number.
  • Page 49 SENDING DOCUMENTS Using the HOLD/SEARCH key If you don’t remember the Rapid Key or Speed Dial number in which you have stored a particular fax number, you can search for the number by following the steps below. Once you have found the number, you can dial it and transmit the START loaded document by simply pressing the key.
  • Page 50 SENDING DOCUMENTS START Press the key. The document S T A R T will be automatically transmitted once the connection is made. Redialing Automatic redialing If you use automatic dialing (including Direct Keypad Dialing) and the line is busy, your fax will automatically redial the number. Up to 2 redialing attempts will be made at intervals of 5 minutes.

  • Page 51: Receiving Documents

    RECEIVING DOCUMENTS Using FAX mode RECEPTION MODE When the reception mode is set to FAX (press the key until "FAX" appears in the display), your fax automatically answers all calls on 4 rings and receives the incoming documents. You can change the number of rings on which the fax answers incoming calls by changing Option Setting 2 (see Chapter 8, "Optional Settings").
  • Page 52 RECEIVING DOCUMENTS Note: If you have set Option Setting 10 to "OFF" and you hear a fax tone when you pick up the handset, you must press the START key to begin reception. Receiving documents on an extension phone If you hear a soft fax tone when you answer an extension phone, wait until your fax answers (the extension phone will go dead if it is connected to your fax, or you will hear pronounced high-pitched fax tones if the phone is connected to a separate wall jack), and then hang up.
  • Page 53 RECEIVING DOCUMENTS Optional reception settings 2 in 1 Print To save paper, you can have the size of your incoming faxes reduced by 55%. This will allow you to receive, for example, a 2-page document on one page (note that this may not be possible if the document pages are longer than your printing paper).
  • Page 54 RECEIVING DOCUMENTS PC reception (only for FO-1850) If you have connected the FO-1850 to a personal computer with the provided PC interface box and have set the RECEIVE UNIT setting to "PC" as described in " Selecting the Reception Mode" in Chapter 2, faxes will be received as follows depending on the reception mode of the FO-1850: If the FO-1850 is set to FAX reception mode, an incoming call will be automatically answered after the number of rings set in your fax software.

  • Page 55: Using The Answering Machine

    USING THE ANSWERING MACHINE OPERATING THE ANSWERING MACHINE Activating the answering machine Activate the answering machine before you go out as follows: RECEPTION MODE Press the key one or two times to set the reception mode to T.A.D. RECEPTION MODE FUNCTION RESOLUTION Each outgoing message will play (you can stop playback by pressing the...
  • Page 56 OPERATING THE ANSWERING MACHINE If you want to listen to the messages in a personal box, enter the number of that box by pressing the appropriate number (Example) key. If the box (general or personal) has a passcode, enter the passcode by press- ing the appropriate number keys.
  • Page 57 OPERATING THE ANSWERING MACHINE Note: Playback will stop if you receive a call, lift the handset, press the STOP key, or open the paper compartment cover. Erasing received messages It is important to erase received messages after you listen to them to ensure that the memory does not become full.
  • Page 58 OPERATING THE ANSWERING MACHINE Recording phone conversations: To REC/MEMO record a phone conversation, hold down the REC/MEMO key during the conversation you want to record. When you are finished, release the key. Note: To comply with federal and local regulations regarding recording a tele- phone call, start the recording process and then inform the caller that you are recording the call.

  • Page 59: Remote Operations

    REMOTE OPERATIONS You can call the FO-1650/1850 from any touch-tone telephone and play back your messages using the remote commands. You can also use these commands to change the reception mode and other settings. Remote code number When you call the FO-1650/1850, you must enter the passcode for the box you want to listen to, or a remote code number if the box does not have a passcode.
  • Page 60 REMOTE OPERATIONS Toll Saver When you call the FO-1650/1850 to listen to your messages, it will answer after two rings if it has received at least one message in any of the boxes, or after four rings if no messages are received. This allows you to save money on telephone charges, particularly if you are calling long distance.
  • Page 61 REMOTE OPERATIONS Retrieving your messages Follow the steps below to listen to your messages from a remote location. Note that you can only access one box per call; if you want to access more than one box, you must make a separate call for each box. Note: You can also access the FO-1650/1850 for remote operation when the re- ception mode is set to FAX.
  • Page 62 REMOTE OPERATIONS If no messages have been received in the box, you will hear a short beep. You can either hang up, or perform any of the operations described in the following section "Other remote operations". While the messages are playing, you can do any of the following: Repeat: To listen to a message a second time, press "2"...
  • Page 63 REMOTE OPERATIONS When you have finished listening to your messages, you can do any of the follow- ing: Erase all messages: To erase all of the messages in the box, press "3", "3", and "#". Repeat playback: To listen to your messages again, press "7"...
  • Page 64 REMOTE OPERATIONS Other remote operations After listening to your messages, you can do any of the operations described below by pressing the appropriate keys on the telephone. Note: The following commands cannot be entered while messages are being played back. If you do not want to wait until playback ends to enter a com- mand, first stop playback by pressing "0"...
  • Page 65 REMOTE OPERATIONS Turning the Transfer function on or off (The Transfer function is described in the following section, "Other functions".) To turn Transfer on: Press " ", " ", and " ", followed by the number of the box ("0" for the General Box) and "#". To turn Transfer off: Press "...
  • Page 66 REMOTE OPERATIONS Recording a "Memo" You can leave a "memo" for yourself or other users of the machine. It will be recorded in the General Box, and played back when messages in that box are listened to. Press "*" and " "...

  • Page 67: Other Functions

    OTHER FUNCTIONS Transfer function The Transfer function is used to make the FO-1650/1850 automatically call you at a specified number every time it receives an incoming message in a selected box. This allows you to hear your messages immediately after they come in, even when you are at a remote location.
  • Page 68 OTHER FUNCTIONS Note: If needed, you can change the transfer number from a remote location. See "Other remote operations" in the previous section, "Remote operations". Recording the transfer message The transfer message plays when you answer the telephone, and informs you that the call is a transfer call.
  • Page 69 OTHER FUNCTIONS Note: If needed, you can turn the Transfer function on or off from a remote loca- tion. See "Other remote operations" in the previous section, "Remote opera- tions". Override Ringing This function allows selected callers using a touch-tone telephone to override the answering machine’s outgoing message and cause the FO-1650/1850 to make a special ringing sound, alerting you that they are calling.
  • Page 70 OTHER FUNCTIONS Overriding the answering machine Your callers should follow the steps below to override the answering machine. Your caller calls the FO-1650/1850 from a touch-tone telephone. When the outgo- ing message begins, they should press the " " key on their telephone. The caller will hear a short beep, and the outgoing message will stop.

  • Page 71: Making Copies

    MAKING COPIES Your fax can also be used to make copies. Single and multiple copies (up to 99 per original) can be made, enabling your fax to double as an office copier. The default resolution for copying is SUPER FINE. If you are making multiple copies of more than one original, you can choose whether to have the copies sorted (SORT COPY) or not sorted (MULTI COPY).
  • Page 72 MAKING COPIES Press " " (MULTI COPY) if you don’t want the copies sorted, or " " (SORT COPY) if you want them sorted. Enter the desired number of copies with the number keys. If the desired number of copies is from 1 to 9, enter "0"...
  • Page 73 MAKING COPIES Copy Cut-off When making a copy, your fax has been set at the factory to not print the remaining part of a document if the document is longer than the printing paper. If you want your fax to always print the remaining part of the document on a second page, follow the steps below.
  • Page 74 MAKING COPIES Notes MAKING COPIES...

  • Page 75: Making Telephone Calls

    MAKING TELEPHONE CALLS Your fax can be used like a regular telephone to make and receive voice calls. To make or receive a phone call, the power must be on. Pick up the handset or press the SPEAKER key. Listen for the dial tone. S P E A K E R Dial the number using one of the follow- ing methods:...
  • Page 76 MAKING TELEPHONE CALLS Using the HOLD/SEARCH key HOLD/SEARCH You can use the key to search for a Rapid Key or Speed Dial HOLD/SEARCH number. First search for the number as described in "Using the key" in "Sending Documents" in this chapter, and then pick up the handset or press SPEAKER key.

  • Page 77: Special Functions

    SPECIAL FUNCTIONS CALLER ID If you subscribe to a caller identification service from your telephone company, you can set your fax to display the name and number of the caller while the fax rings. The fax will also store information about unanswerered calls which you can view in the display or print out as a list.
  • Page 78 CALLER ID Viewing the caller list If you subscribe to a caller ID service and have set Option Setting 13 to YES, your fax will keep information on the most recent 20 unanswered calls you have received. (Note that if the caller sends a fax or leaves a voice message, information on that call will not be stored.) You can view this information, which consists of the name and number of each caller, in the Caller ID List.
  • Page 79 CALLER ID To delete calls from the caller list If you want to delete a single call from the caller list, press the " " key while the call appears in the display. If you want to delete all calls from the list, hold the " "...
  • Page 80 CALLER ID Direct Call If desired, you can allow a designated phone number to access a personal box directly when the answering machine is activated. In this case, when the caller calls, he or she will immediately hear the outgoing message of the personal box instead of that of the general box.

  • Page 81: Anti Junk Fax

    ANTI JUNK FAX The Anti Junk Fax function allows you to block reception of faxes from parties which you specify. This saves paper by not printing out unwanted "junk" faxes. To use this function, first turn it on by setting Option Setting 11 to YES as described in Chapter 8, and then enter the fax numbers from which you do not want to receive faxes as shown below.

  • Page 82: Memory

    MEMORY Your fax has a memory which can be used to temporarily store both incoming and outgoing documents. When no voice messages (including outgoing messages) have been recorded, approximately 34 pages of average content can be held in memory if they are all going to be transmitted (24 pages if Option Setting 16 is set to YES), or 31 pages if they are all received (29 pages if Option Setting 16 is set to YES).
  • Page 83 MEMORY Press the START key if you entered a S T A R T Speed Dial number or a full number. The document will be scanned and stored in memory. Your fax will then dial the receiving machine and trans- mit the document (redialling will be done automatically if necessary).

  • Page 84: Broadcasting

    BROADCASTING This function allows you to send the same document to as many as 20 different locations with just one operation. First store the document in memory, then enter the numbers of the receiving machines. The document will be transmitted to each location.
  • Page 85 BROADCASTING START Press the key. Transmission will S T A R T begin. A Transaction Report is automatically printed out after Broadcasting is com- pleted. Check the "Note" column of the report to see if any of the locations are marked "Busy" or have a communi- cation error code.

  • Page 86: Polling

    POLLING Polling allows you to request another fax machine to send a document to your fax machine. In other words, the receiving fax machine, not the transmitting fax machine, initiates the transmission. You can use your fax to both poll and be polled by others.
  • Page 87 POLLING Being polled (Polling Standby) To let another fax machine poll your fax, simply set the reception mode to FAX, and load the document(s) to be sent. Transmission will take place when the other fax machine calls your fax and activates polling.
  • Page 88 POLLING Storing and clearing fax numbers for polling permission You can store up to 10 fax numbers in your fax’s list of permitted numbers. Press the keys shown at left. "ENTRY FUNCTION MODE" will appear in the display. Press the "*" key 4 times. "PASSCODE # MODE"...

  • Page 89: Timer Operations

    TIMER OPERATIONS The Timer function allows you to set a transmission and/or polling operation to be performed automatically at a time you specify. One transmission operation and one polling operation can be set at any one time, and the times they will be performed can be specified up to 24 hours in advance.
  • Page 90 TIMER OPERATIONS Enter the Speed Dial number of the re- ceiving fax machine. (Example) START Press the key. S T A R T If this is a transmission operation, you RESOLUTION can adjust the resolution and/or contrast (skip this step if you don’t want to). START Press the key and then the...

  • Page 91: Entering And Using Programs

    ENTERING AND USING PROGRAMS If you frequently perform the same operation involving the same party, you can program all the steps of the operation into one Program Key. This allows you to perform the operation by simply pressing that key. Rapid Keys 16/P1 and 17/P2 can be used as Program Keys.
  • Page 92 ENTERING AND USING PROGRAMS START Press the key. S T A R T Press the " " key or the " " until the de- sired operation appears in the display. The operations will appear in the follow- ing order: Transmission ("SEND") Polling Broadcasting...
  • Page 93 ENTERING AND USING PROGRAMS Enter the Speed Dial number of the re- ceiving fax machine. (Example) S T A R T Press the START key. If desired, set the resolution and/or con- RESOLUTION RESOLUTION trast by pressing the (otherwise, skip this step). START Press the key and then the...
  • Page 94 ENTERING AND USING PROGRAMS Broadcasting (Continued from "Initial procedure".) Enter the Speed Dial numbers of the re- ceiving machines. (Example) START Press the key. S T A R T If desired, set the resolution and/or con- RESOLUTION RESOLUTION trast by pressing the (otherwise, skip this step).
  • Page 95 ENTERING AND USING PROGRAMS Using a Program Key A programmed operation is performed as follows: Load the document. 16/P1 Press the appropriate Program Key. (Example) Note: A maximum of 2 timer operations can be set at any one time, including both timer operations set by pressing a Program Key and operations set as de- scribed in "Timer Operations"...

  • Page 96: Reminder Function

    REMINDER FUNCTION The Reminder function allows you to send either a voice message, fax message, or both to another person or yourself at a preset time. If the reminder is for another person, your fax will call the other machine and transmit the message when the selected time arrives.
  • Page 97 REMINDER FUNCTION START Press the key. S T A R T To record a voice message, pick up the handset and speak into it. When fin- ished, replace the handset or press the STOP key. (Skip this step if you only want to send a fax message.) If you are only sending a voice mes- REMINDER...

  • Page 98: Pc Link Function

    PC LINK FUNCTION Note: This section applies only to the FO-1650. If you have a personal computer with a fax modem and fax software, you can connect the computer to your fax with a regular telephone cord and set your fax to PC Mode (PC mode is a special mode for operation with a computer).
  • Page 99 PC LINK FUNCTION FUNC - To turn PC Mode off, press the TION key and then the " " key once FUNCTION again. The reception mode ("FAX", "TEL", or "TAD") will appear next to the time in the display. Note: If you will be performing fax operations with your computer but do not set the fax machine to PC MODE, you must set Option Setting 10 to "NO"...
  • Page 100 PC LINK FUNCTION Load the document. If desired, press the RESOLUTION key to make a resolution and/or con- trast setting. START Press the key. S T A R T Start your fax software on your computer (if it is not already running) and select manual reception.

  • Page 101: Optional Settings

    OPTIONAL SETTINGS A variety of optional settings are available which you can use to fine-tune your fax to better suit your needs. The settings are made by pressing the panel keys, and each setting is described in the list below. Accessing the settings Press the keys shown at left.
  • Page 102 OPTIONAL SETTINGS Setting 3: RECALL INTERVAL This sets the amount of time your fax will wait between automatic redials when the line is busy. Enter "01" for 1 minute, "02" for 2 minutes, etc., up to a maximum of 15 minutes.
  • Page 103 OPTIONAL SETTINGS Setting 9: DISTINCTIVE RINGING This sets the ring pattern to which your fax will answer if you subscribe to a distinctive ringing service. Enter a number from "1" to 5" to select a pattern. See "Distinctive Ringing" in Chapter 2 for more details. Factory setting: "...
  • Page 104 OPTIONAL SETTINGS Setting 15: ACTIVITY REPORT AUTO PRINT OUT Press "1" to have your fax automatically print out an Activity Report once every 30 operations. (The list can still be printed out manually when desired.) Press "2" to turn automatic print-out off. Factory setting: "...

  • Page 105: Printing Out Reports And Lists

    PRINTING OUT REPORTS AND LISTS You can print out a variety of lists showing settings and information entered in the fax. You can also have the fax automatically print out a report on transactions after they are made. Each list and the report is described below. Printing out a list Press the keys shown at left.
  • Page 106 PRINTING OUT REPORTS AND LISTS Explanation of headings SENDER/ The fax number of the other machine involved in the transaction. If this RECEIVER machine does not have an ID function, the communication mode will appear (for example, "G3"). PAGES Number of pages transmitted or received. NOTE OK - Transmission/reception was normal.

  • Page 107: Reception Errors

    PRINTING OUT REPORTS AND LISTS Reception errors Able to recognize handshake signal, but it has errors. Line disconnected during reception. Cannot recognize the handshake signal from the transmitter side. Cannot recognize the last handshake signal from the transmitter side. Cannot recognize the handshake signal for next page from the transmitter side in the case of mode change.
  • Page 108 PRINTING OUT REPORTS AND LISTS Telephone Number List This list shows the fax and voice numbers which have been stored for automatic dialing. Passcode List This list shows settings made for polling security, your name and fax/telephone number as entered in the machine, and a sample of the header printed at the top of HEADER PRINT every page you transmit ( PRINTING OUT REPORTS AND LISTS...
  • Page 109 PRINTING OUT REPORTS AND LISTS Options Setting List This list shows the current status of the optional settings. The bottom part of the list shows the status of the settings made for answering machine connection. Anti Junk Number List This list shows the fax numbers (and voice numbers if the Caller ID function is being used) from which reception is not allowed.
  • Page 110 PRINTING OUT REPORTS AND LISTS T.A.D. Program List This list shows the settings and codes programmed for the answering machine. Message List This list shows information about the messages currently recorded in the answering machine, including the date and time of recording, the length, and the type (ICM or memo).
  • Page 111 PRINTING OUT REPORTS AND LISTS Program and Group List The top part of this list shows the programs which have been entered. The bottom part shows the fax numbers which have been stored in each Group Key. Caller ID List This list shows information about your most recent unanswered calls (maximum of 20 calls).
  • Page 112 PRINTING OUT REPORTS AND LISTS Print Set List This list shows the current status of the printing settings made by pressing the FUNCTION key and the " " key. Transaction Report This report is printed out automatically after an operation is completed to allow you to check the result.

  • Page 113: Maintenance

    MAINTENANCE Reading glass and rollers Clean the reading glass and rollers frequently to ensure the quality of transmitted images and copies. Open the operation panel by pulling the front edge up (grasp it at the " PANEL RELEASE " mark), and clean them as shown below. Wipe the reading glass, white backplate, and rollers with a soft cloth or cotton swab.
  • Page 114 MAINTENANCE Fax print head Clean the print head frequently to ensure optimum printing performance. To clean the print head, first unplug the power cord, open the paper compartment cover (grasp the finger hold on the right side of the cover and pull up), and remove the imaging film.

  • Page 115: Troubleshooting

    TROUBLESHOOTING PROBLEMS AND SOLUTIONS Problem Check and remedy Make sure the power cord is properly Nothing appears in the display. plugged into a power outlet. Make sure the power switch has been switched to the correct position. Connect another electrical appliance to the outlet to see if it has power.
  • Page 116 If the receiving machine is in manual mode with no attendant, reception will not be possible. If the receiving machine is not a Sharp model, make sure it is G3 compatible. Check the display for error messages. Pick up the handset and check for a dial tone.

  • Page 117: Messages And Signals

    MESSAGES AND SIGNALS Display messages The paper size setting is incorrect. Change the CHECK PAPER SIZE paper size setting as described in "Loading the Paper" in Chapter 1. COVER OPEN The printing compartment cover is open. Close it. The original document is jammed. See the DOCUMENT JAM following section, "Clearing Paper Jams".
  • Page 118 MESSAGES AND SIGNALS Audible signals Indicates the end of Continuous tone 3 seconds transmission, reception, or copying. 5 seconds Indicates incomplete Intermittent tone (1 second on, transmission, reception, or (3 beeps) 1 second off) copying. 0.5 seconds on, Indicates that the printer cover is Rapid intermittent tone 0.5 seconds off open.

  • Page 119: Clearing Paper Jams

    CLEARING PAPER JAMS Clearing a jammed document If a document doesn’t feed properly during transmission or copying, or DOCUMENT START JAMMED appears in the display, first try pressing the key. If the document PANEL doesn’t feed out, open the operation panel (grasp the front edge at the " RELEASE "...
  • Page 120 CLEARING PAPER JAMS Remove the paper tray from the fax. Gently pull the jammed paper out of the printing compartment. Replace the imaging film, making sure that the flange goes into the rear slot on the left side of the printing compartment. Also, make sure that the right, rear gear engages with the gear below it.

  • Page 121: Specifications

    Weight: Approx. 13.0 lbs. (5.9 kg) * Based on ITU-T Test Chart #1 at standard resolution in Sharp special mode, excluding time for protocol signals (i.e., ITU-T phase C time only). As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice.
  • Page 122 SPECIFICATIONS Notes Spec-1 SPECIFICATIONS...
  • Page 123 SPECIFICATIONS Notes SPECIFICATIONS Spec-1...

  • Page 124: Material Safety Data Sheet

    (Name and Telephone Number) U.S.A. Sharp Electronics Corporation Telephone number for information : 201-529-8200 Emergency telephone number : 1-800-255-3924 Canada Sharp Electronics of Canada Ltd. Telephone number for information : 416-890-2100 Emergency telephone number : 1-800-424-9300 United Sharp Electronics(U.K.)Ltd. Kingdom Telephone number for information : 0923-211900 Section 3.
  • Page 125 SHARP Date Issued: Feb. 9,1996 MATERIAL SAFETY DATA SHEET MSDS No. B-1006 Section 6. Physical Chemical Characteristics Boiling/Melting Point m.p. about 70 C Specific Gravity about 1 for ink Vapor Pressure not applicable Solubility negligible (water) Vapor Density not applicable...

  • Page 126: Fcc Regulatory Information

    If you have any questions or problems which cannot be solved by reading this manual, please contact Sharp Electronics Corporation at Sharp Plaza, Mahwah, NJ 07430-2135. The customer number is 800-237-4277. This equipment may not be used on coin service provided by the telephone company.
  • Page 127 REMOTE OPERATION CARD The card below is provided as a quick guide to remote operation. Cut it out and carry it with you when you go out. Remote Operation Guide 1. Call your fax from a touch-tone telephone, and press when the outgoing message begins.

  • Page 128: Remote Commands

    REMOTE COMMANDS FAX RECEPTION MODES PLAYBACK T.A.D. mode ... . Play messages..FAX mode ... . . Move backward/repeat.

  • Page 129: Quick Reference Guide

    QUICK REFERENCE GUIDE INSTALLATION 4. Enter your fax number (max. of 20 digits) by pressing the number keys. If you make a mistake, press the HOLD/SEARCH key to move the cursor back to the mistake, then enter the correct number or letter. (To move the cursor for- SPEAKER ward, press the key.)
  • Page 130 QUICK REFERENCE GUIDE SENDING DOCUMENTS SETTING THE DATE & TIME To set the date and time, press the following Place your document sequence of keys: FUNCTION (up to 20 pages) face down in the document feeder. "DATE & TIME SET" will appear. S T A R T Press the START...

  • Page 131: Deleting Messages

    QUICK REFERENCE GUIDE DELETING MESSAGES Record an outgoing message for a box as fol- lows: Erasing a single message: Press the 1 Press the following sequence of keys: DELETE key while the message is being S T A R T FUNCTION played.
  • Page 132 QUICK REFERENCE GUIDE FUNCTION key menu The following chart shows the layout of the functions and settings accessed by pressing the FUNCTION key. First press the FUNCTION key, the appropriate numeric key as shown, and then "#" or "*" until the desired item appears. Instructions for making each setting appear in the display.
  • Page 133 QUICK REFERENCE GUIDE Optional Settings Print Set-up Program/Group Cover Sheet Polling Cover Sheet Fine Resolution Initialize Film Program Entry (8-3) Header Priority (1-5) Mode (3-4) (8-1) (7-15) Caller ID Reception Ratio (8-3) Number of Rings in (3-13) Group Entry Auto Mode Mode Autocover Sheet 2 in 1 Print...

  • Page 134: Index

    INDEX Activity Report, 9-1 - 9-3 Electrical outlet, 1-6 Automatic print-out, 8-4 Error Correction Mode, 8-4 Anti Junk Fax/Number, 7-5, 8-3 Extension telephone, connecting, 1-6 - Anti Junk Number List, 9-5 Audible signals, 11-4 Extension telephone, using, 3-11 - 3-12 Auto Cover Sheet, 8-3 Automatic dialing, 2-20 - 2-23 FAX reception mode, 2-8, 3-11...
  • Page 135 INDEX TEL mode, 2-8, 3-11 - 3-12 Playback, 4-1 - 4-3 Reception mode key, 2-3, 2-8 Erasing, 4-3 Reception ratio setting, 3-13 Date and time, 4-4 Redial key, 2-2, 2-11, 3-9, 3-18 Redialing, 3-9, 3-18 Reminder Function, 7-20 - 7-21 Normal Dialing, 3-6, 3-17 Resolution, 3-3 Number of Rings in FAX Mode, 8-1...
  • Page 136 Sharp. You should be aware, however, that Sharp does not itself extend any warranties, either express or implied, directly to you, the end-user, and no one is authorized to make any representations or warranties on behalf of Sharp.
  • Page 137 SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 SHARP CORPORATION PRINTED IN THAILAND (TINSE3594XHZC)
