Please read and save this guide through before using your range hood.
Store the guide away in a safe place so that you will know where it is,
when you want to refer to it.
OPERATION
MANUAL
(For residential and indoor use only)
WS-38U30SS
WS-38U36SS
WS-38U42SS
WS-38U48SS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-38U30SS and is the answer not in the manual?

Questions and answers

Related Manuals for Windster WS-38U30SS

Summary of Contents for Windster WS-38U30SS

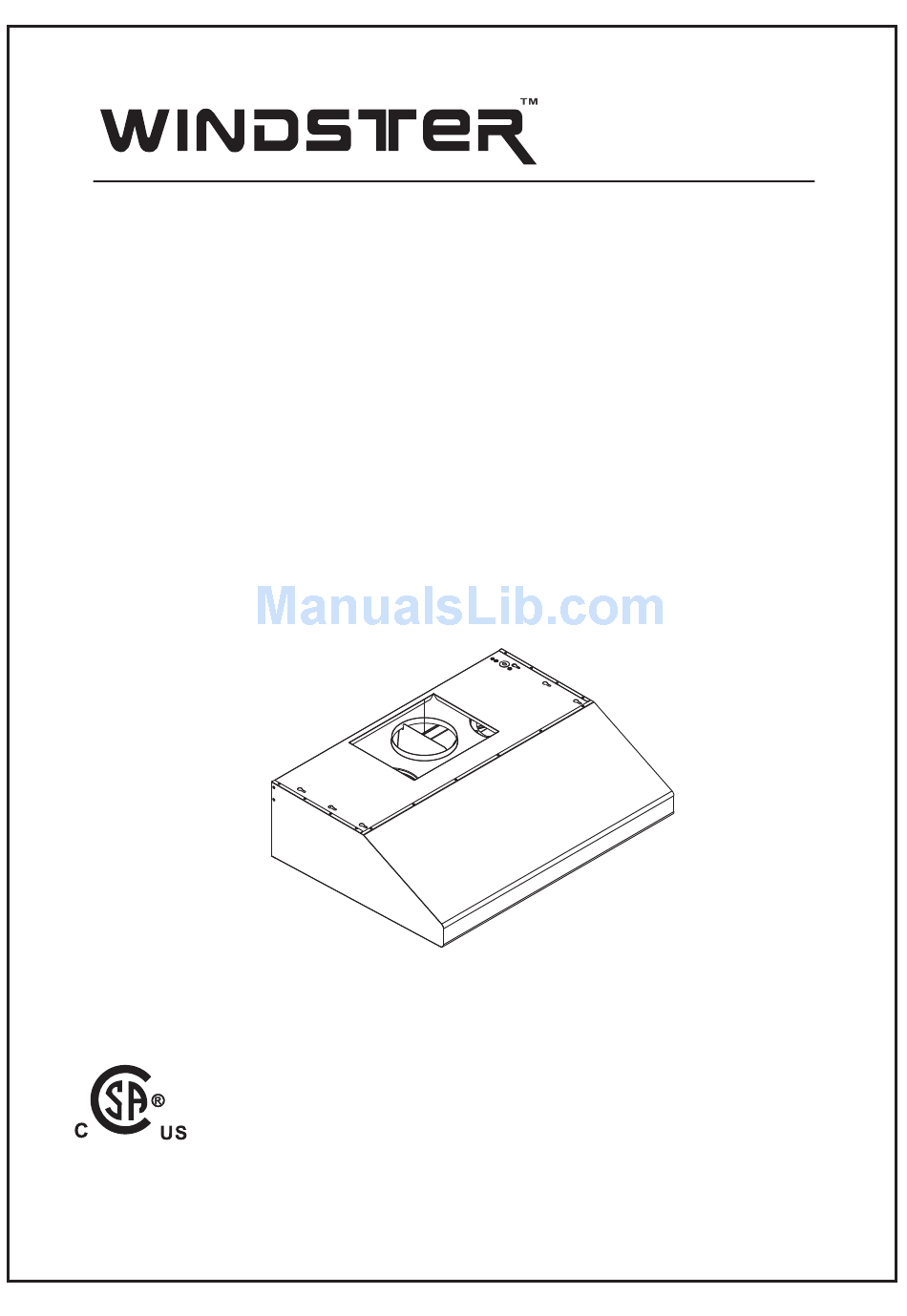

  • Page 1 WS-38U30SS WS-38U36SS WS-38U42SS WS-38U48SS OPERATION MANUAL (For residential and indoor use only) Please read and save this guide through before using your range hood. Store the guide away in a safe place so that you will know where it is, when you want to refer to it.

  • Page 2: Table Of Contents

    Table of Contents Important Safety Instructions ---------------------------- Safety Notes ------------------------------------------------- Tools and Materials Required ----------------------------- Accessory Package ----------------------------------------- Preparing the Range Hood -------------------------------- Preparing the Installation Location ----------------------- Providing Electrical Power --------------------------------- Remove and Reinstall Baffle filters ---------------------- Maintenance Instruction ---------------------------------- Ducting -------------------------------------------------------...

  • Page 3: Important Safety Instructions

    A. Important Safety Insturctions CAUTION- To reduce risk of fire and to properly exhaust air, make sure to properly exhaust air. Be sure to duct air outside- Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces, or garages. WARNING- To reduce the risk of fire or electric shock, do not use this fan with any solid- state speed control device.
  • Page 4 WARNING- To reduce the risk of injury in the event of a range top grease fire, observe the following: SMOTHER FLAMES with a close- fitting lid, cookie sheet, or metal tray, then turn off the burner. Be careful to prevent burns.

  • Page 5: Safety Notes

    B. Safety Notes 1. All electrical work must be done in accordance with local and/or national electrical code as applicable for safety. This product must be grounded if your are unfamiliar with methods of installing electrical wiring, secure the services of a qualified electrician. 2.

  • Page 6: Tools And Materials Required

    C. Tools and Materials Required Drill, electric of ratchet driver, with 3/16" wood bit (for drilling starter holes and 1 ” wood bit (to drill an access holes in the cabinet or ¼ kitchen wall for the electric power line) One common screwdriver.

  • Page 7: Preparing The Range Hood

    E. Preparing The Range Hood 1. Remove the top electrical Electrical Knockout knockout, you may plan to bring power to the range hood either through the cabinet or through the wall (Fig.1) Fig.1 2. Insert a screwdriver into the knockout slot and bend the knockout back and forth.

  • Page 8: Preparing The Installation Location

    F. Preparing The Installation Location 1. If you want to move the electric range to make room for working on the cabinet turn off the 220 volt power for the electric range at the service entrance. 2. Before moving a gas range, shut off the gas. NOTE: SKIP FOLLOWING STEPS 3A THROUGH 3D IF THE HOOD IS TO BE MOUNTED ON A CABINET WITH A FLUSH BOTTOM...

  • Page 9: Providing Electrical Power

    C. Screw the four 1" wood screws (for mounting the hood) into the exact center of the arrow and into the keyhole mounting slots marked on the cabinet bottom (for flush installations), or marked on the 1” x2” wood strips (for Strips secured recessed cabinet installation) (Fig.7) Do not turn the mounting screws in all...

  • Page 10: Remove And Reinstall Baffle Filters

    H. Remove and Reinstall Baffle filters ② ① 1. Wear safety workman gloves and 2. Push Baffle filter down ward ①, hold the handles of Baffle filter. then pull a little back ② ③ 4. Pick up the inner oil collector. 3.

  • Page 11: Maintenance Instruction

    I. Maintenance Instruction 1. Maintenance shall be important than repair. Please take care of the needed maintenance in order to secure and extend the excellent functions and using life. Note : Before repairing the range hood. Disconnect the power source. 2.

  • Page 12: Vertical Rectangular Ducting

    K. Vertical Rectangular Ducting A. Remove the pre-mounted D. Overlap the rectangular starting collar on the top 6” round duct opening. of transition plate. Half round section E. Mounting rectangular starting collar with remaining screws. B. Put transition plate by first installing 4 screws on the...

  • Page 13: Rear Rectangular Ducting

    L. Rear Rectangular Ducting A. Remove the pre-mounted D. Pre-mounted 6” round duct opening. rectangular plate. B. Put transition plate by first installing 4 screws E. Remove the pre-mounted the half round section. rectangular plate. (Optional) - to be continued - C.
  • Page 14 L. Rear Rectangular Ducting F. Take the pre-mounted G. Mount the rectangular rectangular plate. plate (previous removed) on top of transition plate. NOTE : An optional kit for rear rectangular ducting : Transition plate Rectangular H. Insert appropriate rectangular starting collar starting collar (optional) (Small) (2 different size)

  • Page 15: Mounting Range Hood To Cabinet

    M. Mounting Range Hood To Cabinet NOTE : Read “Remove and Reinstall Baffle filter” & “For mounting under cabinet” on page 8. 1. Position the hood in place so that : a. The electrical line is routed through the appropriate Knockout opening.
  • Page 16 N. Mounting Range Hood Without Cabinet Bracket 1. Using metal brackets and screws (included), center hood onto Screw board and install screw. 2. Remove the hood from the board and nail the wood board onto the wall. (Be sure the nail is in the center of the stud) 3.

  • Page 17: Mounting Range Hood Without Cabinet

    Mounting range hood without cabinet Chimney Installation Chart (optional) Install the range hood Check and fix the 1. Set 6” round ducting 7” round converter collar to the desired position ower chimney collar or (for 7” exhaust piping) bracket 2. Set rectangular starting collar (check manual) Slide the chimney Install the 6”...

  • Page 18: Making The Electrical Connection

    P. Making The Electrical Connection 1. Remove stainless Baffle filters. ( Ref.P8-H) 2. Remove screws on wiring case, wire case fish out wires through the knockout. (Fig.12) 3. Mark the electrical connection by fastening all wires to the existing wall wiring according to the their colors.
  • Page 19 Use for Fan : Fan speed selection and fan off. Fan ON : When the main power button is being pressed, by pressing button for desired fan speed. - slow speed - medium speed - high speed Fan OFF : To turn off the fan, just press the button, or press off main power button.
  • Page 20 Note: Range hood should be turn on either before or the same time when cooking begins. After cooking, range hood should be kept on for about 3 more minutes for complete ventilation of cooking odor. Care Instruction : Please always pull the plug out before cleaning or dismantling, wear "...

  • Page 21: Troubleshootings

    R. Troubleshootings Symptom Correction A. Check power source to see if it is normal. Fan are not operatable. B. Check power inlet plug to see if it is plugged firmly into it's socket. A. Disconnect the power source. Illuminating LED light B.

  • Page 22: Parts Layout Diagram

    T. Parts Layout Diagram...
  • Page 23 Parts List Description Parts no. Per hood 38-0130(30”) / 38-0136(36”) Hood casing 38-0142(42”) / 38-0148(48”) Air chamber 38-02 38-0330(30”) / 38-0336(36”) Top plate 38-0342(42”) / 38-0348(48”) 6” round vent ( 38-04 Vertical ventilation Motor housing 38-05 Inner vent (Rear ventilation) 38-06 Motor (s) 38-07...

  • Page 24: Circuit Diagram

    U. Circuit Diagram NOTE : Any faults with this unit should only be attended to by a qualified technician. NIGHT LIGHT POWER CORD AC/DC POWER SUPPLY UNIT MOTOR MOTOR Voltage : 110V/60Hz Power consumption : maxi 170W (Motor + LED light)

  • Page 25: Recirculation Kit Installation

    V. Recirculation Kit Installation (optional) Note: Before mounting the range hood and recirculation kit, please must refer the following from the manual. 1. P.5 “E. Preparing the Range Hood” remove the top electrical knockout (recirculation kit is same step) 2. P.7” G.

  • Page 26: Limited Warranty

    1) Labor: For a period of one (1) year from the date of purchase, if this product is determined to be defective, Windster will repair or replace the product, at its option, at no charge. After the warranty period, you must pay for all labor charges.
  • Page 27 EXCEPTIONS. Return Policy Windster offers only the best and highest quality products. If you are not satisfied with your purchase, please contact us within 3 business days of product arrival to obtain a Return Merchandise Authorization (RMA). Returns sent without a RMA will not be accepted.
  • Page 28 . w i n d s t e r h o o d . c o m 5101 Commerce Dr Baldwin Park, CA 91706 TOLL FREE:1-877-350-5215 FAX:(626)962-8669 © Windster Hoods, Inc. Specifications subject to change without notice.
