Operating Manual
User s Manual
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.

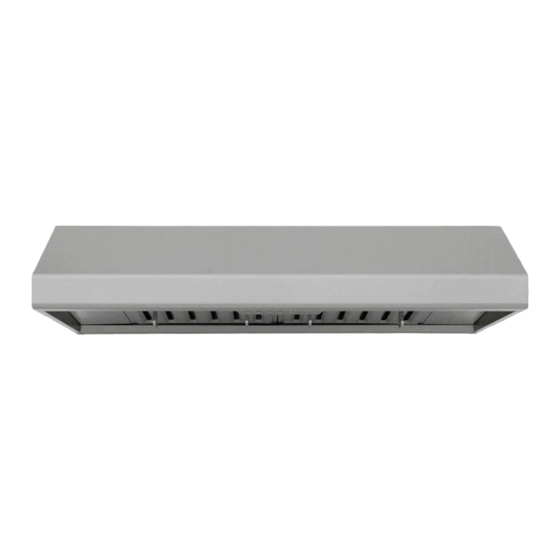

WS38U30SS
WS38U36SS
WS38U42SS
WS38U48SS
NOTE: PLEASE INSPECT HOOD
IMMEDIATELY UPON RECEIVING.
CLAIM OF DAMAGE AFTER 7 DAYS
OF DELIVERY WILL BE DENIED.
This unit is designed for indoor
residential use only. DO NOT USE
OVER A WOOD GRILL OR MOUNT
IN OUTDOOR ENVIRONMENT.
www.windsterhood.com
Advertisement
Table of Contents
Related Manuals for Windster WS38U30SS
Summary of Contents for Windster WS38U30SS
- Page 1 User s Manual WS38U30SS WS38U36SS WS38U42SS WS38U48SS NOTE: PLEASE INSPECT HOOD IMMEDIATELY UPON RECEIVING. CLAIM OF DAMAGE AFTER 7 DAYS OF DELIVERY WILL BE DENIED. This unit is designed for indoor residential use only. DO NOT USE OVER A WOOD GRILL OR MOUNT IN OUTDOOR ENVIRONMENT.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Safety Information .............. 2 – 3 Content Checklist ..............4 Measurements ................5 Preparation ................6– 7 Installation ................. 8 – 13 Installation Diagram ..............14 Operation & Features ............15 – 16 Cleaning & Maintenance ............17 Troubleshooting .............. -
Page 3: Safety Information
SAFETY INFORMATION SAFETY INFORMATION TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK, AND/OR INJURY OBSERVE THE FOLLOWING: Unit is intended for indoor residential use only. If you should have questions, contact the manufacturer at the address or telephone number listed in the warranty. -
Page 4: Safety Information
SAFETY INFORMATION TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE. Regardless of heat level, never leave any surface materials unattended while operating an open flame. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). -
Page 5: Content Checklist
CONTENT CHECKLIST CONTENT CHECKLIST CONTENTS INCLUDED (1) WS38 series(30”, 36” 42” or 48”)hood assembly (1) User’s manual (1) 6” to 7” conversion collar (2) Baffle filters w/ handles & (2) stainless steel filler (30” model only) (2) Baffle filters w/ handles & (2) stainless steel filler (36” model only) (3) Baffle filters w/ handles &... -
Page 6: Measurements
MEASUREMENTS... -
Page 7: Preparation
PREPARATION PREPARATION BEFORE YOU START **DO NOT INSTALL IF DAMAGED** **RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED** Be sure you have all the content of your purchase and required tools for this installation. Installation may take at least 1 to 2 hours from start to finish. Plan to use as few elbows or turns as possible for more efficient air flow. -
Page 8: Preparation
PREPARATION For cabinet with recessed-bottom, use (2) 3” x 12” or 15” wood strips on both sides to balance the recession. Use (4) 1-1/4” long flat head screws to secure the wood strips to cabinet. (Fig. 1d) HOOD Inspect for any sign of defect or damage. (ie. scratches, dents, loose seams, etc.) Power up the unit to make sure it is working properly. -
Page 9: Installation
INSTALLATION INSTALLATION 1. UNDER CABINET INSTALLATION (Top round outlet) Make sure all preparation steps are completed. Feed the wires coming out of the hood through the bottom of the cabinet. Lift the unit up flesh against the wall and the bottom of the cabinet. Using the screws and washers provided, insert into each of the keyhole openings and tightly secure the unit against the bottom of the cabinet. - Page 10 INSTALLTION Secure both plates with the screws provided. (Fig. 3d) Fig. 3d Conversion is complete after both plates are secured. (Fig. 3e) Fig. 3e Feed the wires coming out of the unit through the bottom of the cabinet. Lift the unit up flesh against the wall and the bottom of the cabinet. Using the screws and washers provided, insert into each of the 4 keyhole openings (2 on each side) and tightly secure the unit against the bottom of the cabinet.
- Page 11 INSTALLATION 3. DUCTLESS INSTALLATION (OPTIONAL) Make sure all preparation steps are completed. Lift the ductless kit up flush against the wall and the bottom of the cabinet. (Fig. 3a) Using the screws and washers provided, insert into each of the keyhole openings and tightly secure the ductless kit against the bottom of the cabinet.(Fig.
- Page 12 INSTALLATION 4. UNDER CABINET INSTALLATION (Rear rectangular outlet) Make sure all preparation steps are completed. Be sure you have the WS38RVK (rear vent kit) to change the top round outlet to a rear rectangular outlet. Convert 6” top round to 3-1/4” x 10” rear rectangular. Replace the 6”...
- Page 13 Secure the adaptor with the screws provided. Conversion is complete after the adaptor is secured (Fig. 4j) Fig. 4j Feed the wires coming out of the hood through the bottom of the cabinet. Lift the unit up flesh against the wall and the bottom of the cabinet. m.
-
Page 14: Installation Diagram
6. WALL MOUNT INSTALLATION (OPTIONAL) Optional WS38DC (duct cover) is required for wall mount installation. Make sure all preparation steps are completed. Determine your ceiling height prior to installation. Be sure you have theWS38DCand the following contents. i. Hood unit height = 8-1/4”” ii. - Page 15 Fig. 5a Fig. Fig. 5c Fig. 5d Fig. 5e Fig. 5f Fig. 5g Fig. 5h...
-
Page 16: Operation & Features
OPERATION & FEATURES EASY ACCESS CONTROL SWITCH (from left to right) Button 1 – Master ON / OFF Button 2 – Low speed Button 3 – Medium speed Button 4 – High speed Button 5 – Power ON / OFF Button 6 –... - Page 17 REMOVING THE BAFFLE FILTERS Slide the baffle filter into the hood. Push the baffle filter upward. Slide the baffle filter toward you. Remove hidden stainless steel oil tray for cleaning.
-
Page 18: Cleaning& Maintenance
CLEANING& MAINTENANCE WARNING!!! To prevent the possibility of a fire and explosion, do not use flammable liquids or solvents to clean the unit or any of its parts. Check to make sure all power sources are disconnected before servicing or taking unit apart for cleaning. Please thoroughly clean the unit weekly as stainless steel can rust under certain condition or by improper cleaning. -
Page 19: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING WARNING!!! Check to make sure all power sources are disconnected before starting any troubleshooting. Safety gloves and glasses should be worn when working on the unit. Serious injury or death may occur if safety precautions are not followed. WS38 Series Light Issue (All not 1. -
Page 20: Part List / Replacement
PART LIST / REPLACEMENT PART LIST / REPLACEMENT Description Description Hood body assembly Baffle filter handles 6” round collar Stainless steel oil cup Air chamber Control support bracket Rear outlet panel LED lights Motor Control board Fan impeller Control bracket Oil funnel Support bracket Stainless steel filler... -
Page 21: Warranty / Contact Us
For a period of one (1) year from the date of purchase, if the product is determined to be defective, Windster will attempt to repair the product, at its option, at no charge. After the warranty period, customer must pay for all labor charges. During the "labor"... -
Page 22: Warranty / Contact Us
CONTACT US Windster Hoods, Inc. 5101 Commerce Dr. Baldwin Park, CA 91706 TEL: (626) 962 – 8600 FAX: (626) 962 – 8669 Toll Free: (877) 350 – 5215 E-mail: Support@windsterhood.com © Windster Hoods, Inc. Information subject to change without notice...
