CONNECTING AND OPERATING THE 4X1 DVI KVM DL/SL SWITCHER

1. Connect your computers' DVI, USB, and Audio sources to the 4x1 DVI KVM
DL/SL Switcher inputs using user-supplied cables.
2. Connect your USB and audio devices to the USB and audio outputs using
user-supplied cables.
3. Connect your DVI display to the DVI output of the 4x1 DVI KVM DL/SL
Switcher using a user-supplied DVI cable.
4. Turn on the DVI display or projector fi rst, then the DVI video sources/
computers.
5. Connect the 5V DC power supply to the Switcher by by screwing its 5V DC
power supply tip into the receptacle in the rear of the unit, then plug it into the
wall.

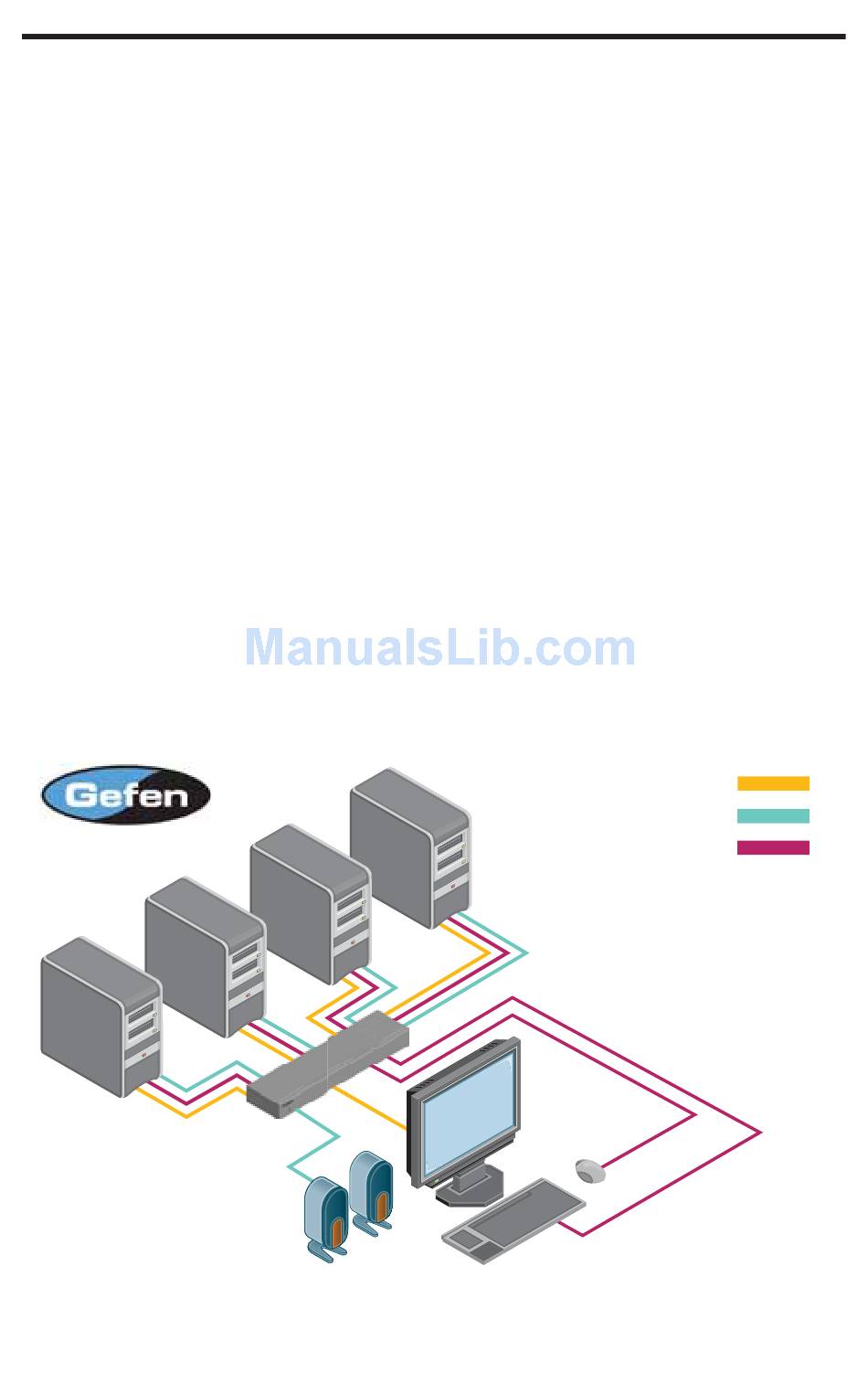

Wiring Diagram for the 4x1 DVI KVM DL/SL Switcher
Computer
How to Connect the 4x1 DVI KVM DL/SL Switcher
Computer
Switcher
Speakers
DUAL LINK DVI CABLE
Computer
Computer
Dual Link DVI Display
USB Keyboard
6
AUDIO CABLE
USB CABLE
USB Mouse
EXT-DVIKVM-441DL
